Page 2 - 4 Xerox Document Centre System Administration Guide
How to set the Ring Speed and Source Routing

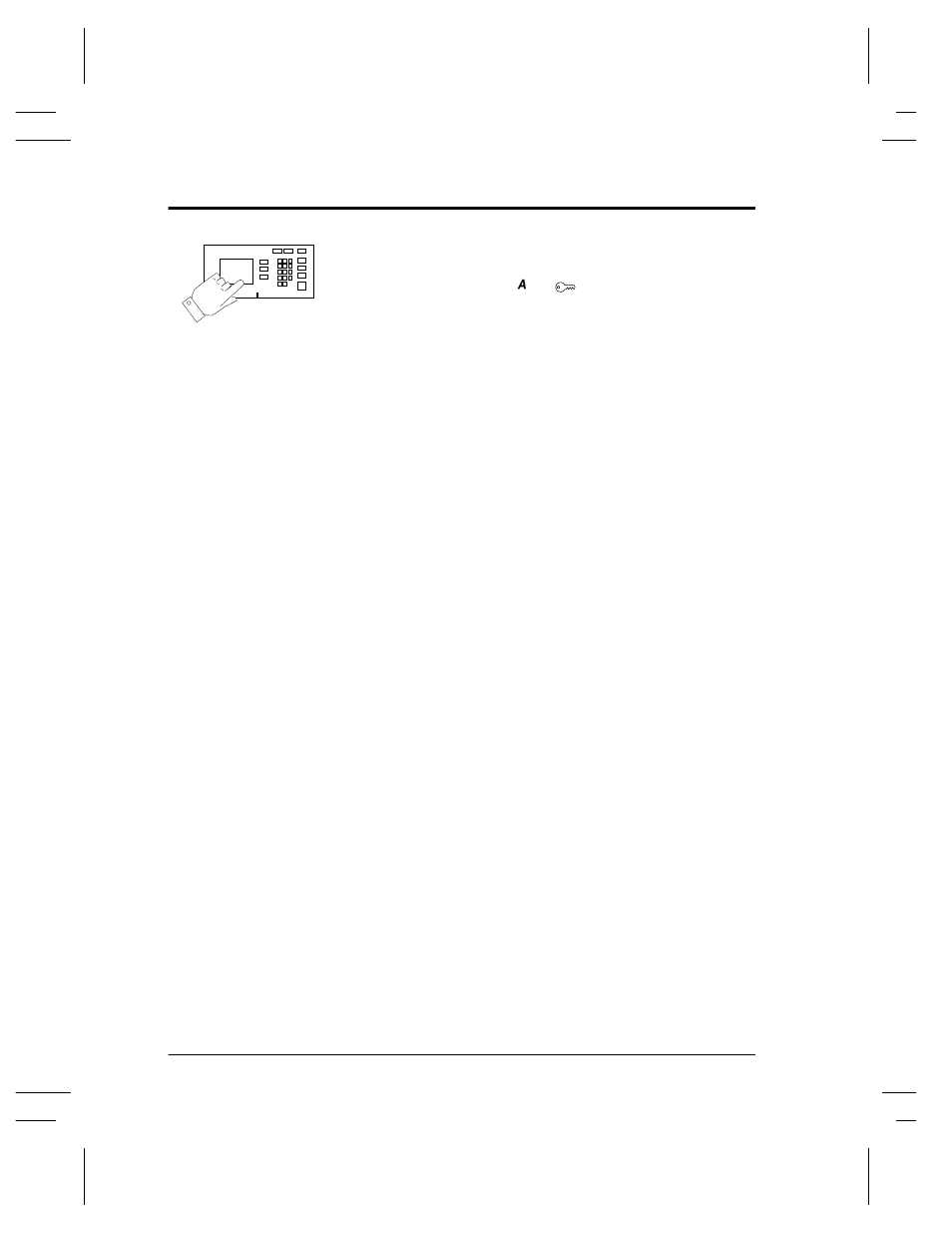

1. Enter the Tools pathway
a) Press the Access ( or ) button.
b) On the keypad enter 1111 or the current password. Press
the Enter button when finished. The Touch Screen will
be used for the remainder of the data entry, unless
instructed otherwise.
c) Press the Go to Tools button.
2. Set or Change the Ring Speed or Source Routing.
a) Wait for the screen to refresh and press the Connectivity
and Network Setup button.
b) Wait for the screen to refresh and press the Physical
Media button.
c) Press the Token Ring button.
d) Press the Token Ring Settings button.
e) Select the desired Ring Speed (4 Megabits or 16 Mega-
bits per second).
f) Select the desired method of Source Routing (Single
Route Broadcast or All Route Broadcast).
g) When finished with your changes press Save.
3. Press the Exit Tools button.
4. Wait a MINIMUM of 7 minutes for the printer to reset. The
Network Controller is being reset and initializing with the
new setup. When complete a Configuration Report will print.
a) Obtain the Configuration Report page from your
printer and verify that your Token Ring Settings have
been retained.
5. Connect your Document Centre to the network with the
appropriate cabling.
