Reference [Mixer]
ZOOM MRS-1266
77
5.
Press the [EXIT] key to return to the main screen,
and press the [EFFECT] key.
The currently selected effect patch appears on the display.
6.
Press one of the [ALGORITHM] keys in the effect
section to select the desired algorithm, and turn
the dial to select the patch to be used.
When you have selected the patch, press the [EXIT] key to
return to the main screen.
7.
While playing your instrument, adjust the recording
level by turning the [REC LEVEL] control.
The [REC LEVEL] control adjusts the signal level before it
is sent to the recording track (i.e., after it has passed through
the insert effect). The [CLIP] indicator will light if the signal
clips. Set the recording level as high as possible, but avoid
settings that cause the [CLIP] indicator to light.
H INT
• The level of the signal sent to the recording track will
change according to the settings of the insert effect
parameters. If you switch insert effect patches or edit the
parameters, you should once again check whether the
recording level is appropriate.
• The precise setting of the [REC LEVEL] control parameter
can be checked by pressing the track parameter section
[PAN] key → [ON/OFF] key operated in step 2 → cursor
down key.
8.
Press the status key for the recording destination
track (1 - 8, 9/10) so that the key is lit in red. The
track is now ready for recording.
The input signal from the input mixer will be sent to the
recording track. You can select record mode for up to two
mono tracks (1 - 8) or one stereo track (9/10). When
selecting two mono tracks, the track pairs will be 1/2, 3/4, 5/
6, or 7/8.

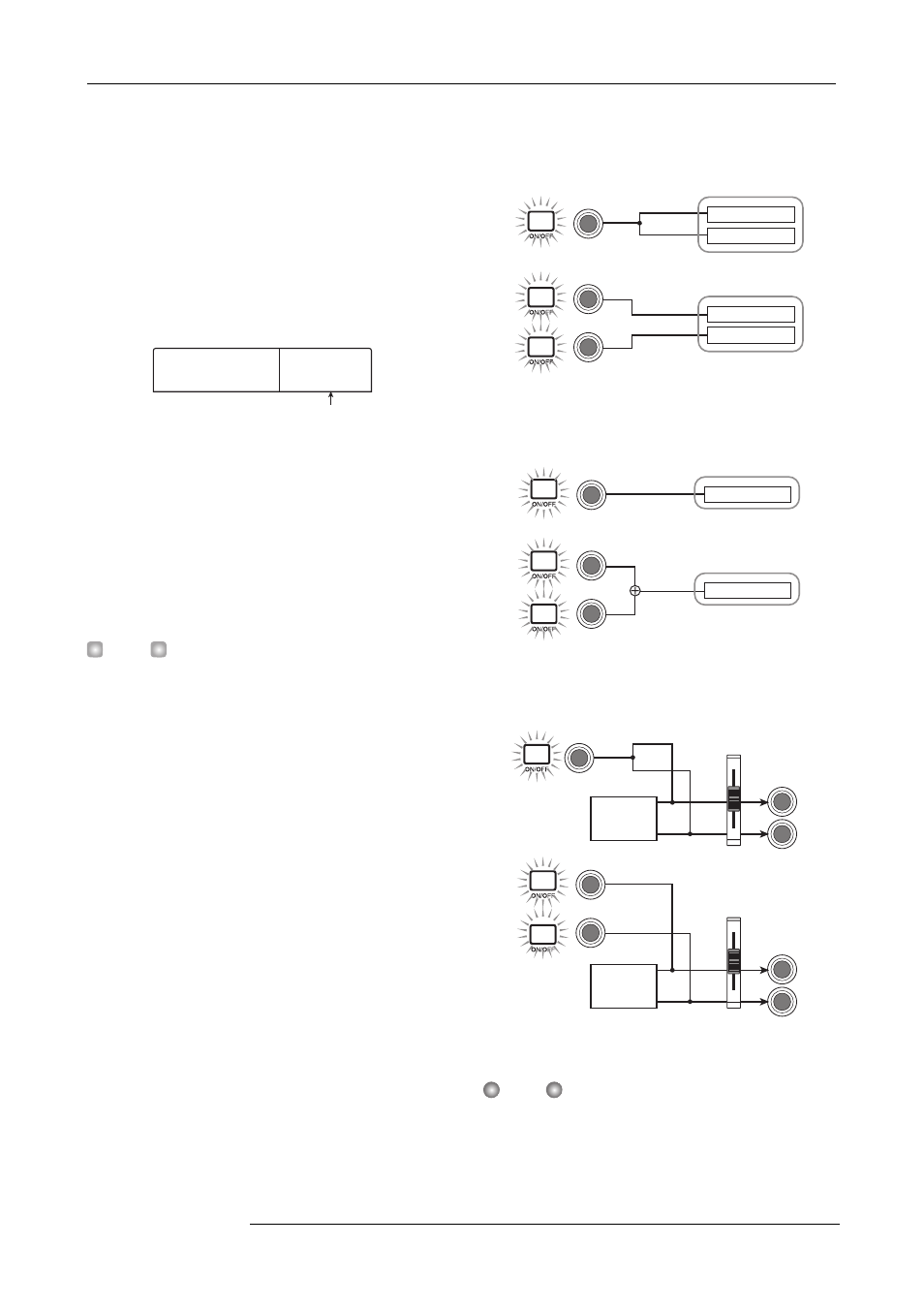

The signal flow from the input mixer to the track will change
as follows, depending on the number of inputs and recording
tracks.
● Two mono tracks or stereo track selected as
recording track
● One mono track selected as recording track
● No track selected as recording track
N OTE
The diagrams above show the signal flow when the insert
effect has not been inserted into the input mixer. For details
on the signal flow when the insert effect is inserted, refer to
page 120.
0
INSERT INSERT
Standard
Standard
Patch number
Track
Track
Track
Track
Recorder
Recorder
Track
Recorder
Track
Recorder
OUTPUT
L
R
OUTPUT
L
R
MASTER
(11/12)
MASTER
(11/12)
[MASTER]
fader
[MASTER]
fader
Track
mixer
Track
mixer
