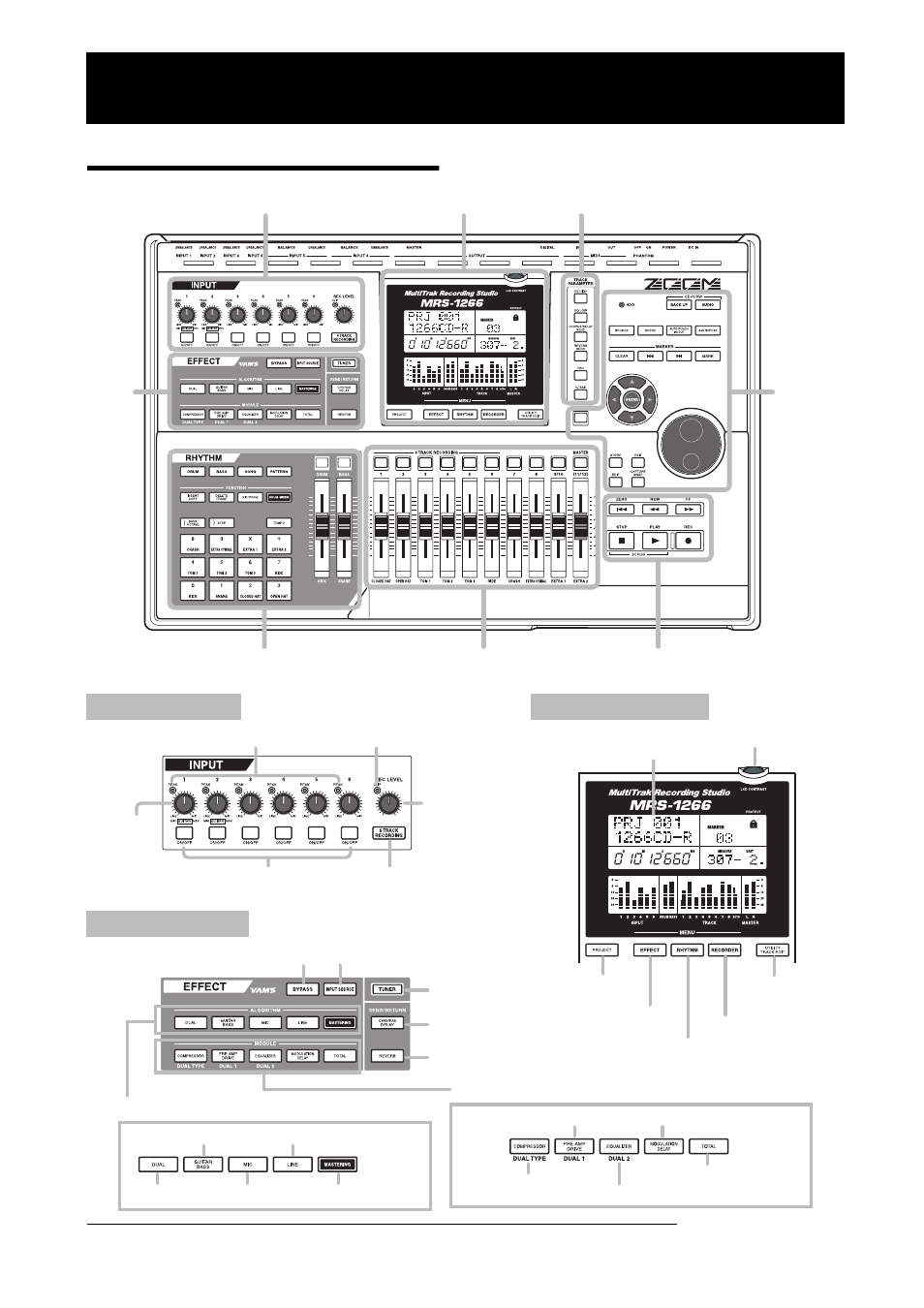

Parts of the MRS-1266
ZOOM MRS-1266
12
Input section Display section TRACK PARAMETER section
Control
section
Rhythm section
Effect
section
Fader section Transport section
[PEAK] indicators 1 - 6 [CLIP] indicator
[ON/OFF] keys [6TRACK RECORDING] key
[LCD CONTRAST] knob
Display
[REC LEVEL]
control
[MIC] key
[BYPASS] key [INPUT SOURCE] key
[PRE AMP/DRIVE] key
[EQUALIZER] key
[MODULATION/DELAY] key
[TOTAL] key
[COMPRESSOR] key
[ALGORITHM] keys
[MODULE] keys
[MASTERING] key
[TUNER] key
[CHORUS/DELAY] key
[REVERB] key
[INPUT]
controls 1 - 6
[DUAL] key
[GUITAR BASS] key [LINE] key
[EFFECT] key
[RHYTHM] key
[RECORDER] key
[UTILITY/
TRACK EDIT] key [PROJECT] key
Input section Display section
Effect section
Top panel In this manual, the names of faders, knobs, and other
controls on the unit are enclosed in square brackets [ ].
Parts of the MRS-1266
