About the effects
The MRS-1266 has two types of effects, an “insert effect”
and two “send/return effects”. The two types can be used
simultaneously. The two types of effects are described below
in detail.
Insert effect
The insert effect is used by inserting it into a specific signal
route. You can select one of the following locations at which
to insert the effect.
(1) Input mixer
(2) Any channel of the track mixer
(3) Immediately before the [MASTER] fader
For example if you insert the effect into the input mixer, the
input signal is directly processed by the effect and the result
is recorded on a track of the recorder. Alternatively, if you
insert the effect into a channel of the track mixer, the effect
processes the playback signal from a track or the drum/bass
sound.
By selecting a position immediately before the [MASTER]
fader, you can use the effect to process the final mix before
recording on the master track.
Send/return effects
The send/return effects are internally connected to the send/
return loop of the mixer section. The MRS-1266 has two send/
return effects, reverb (REVERB) and chorus/delay (CHORUS/
DELAY), and these can be used simultaneously.
The send levels of the input mixer or track mixer adjust the
effect depth of the send/return effects. Raising the send level
will send the corresponding signal to the input of the effect,
and the signal processed by the effect will be returned
immediately before the [MASTER] fader, and mixed with
the other signals.

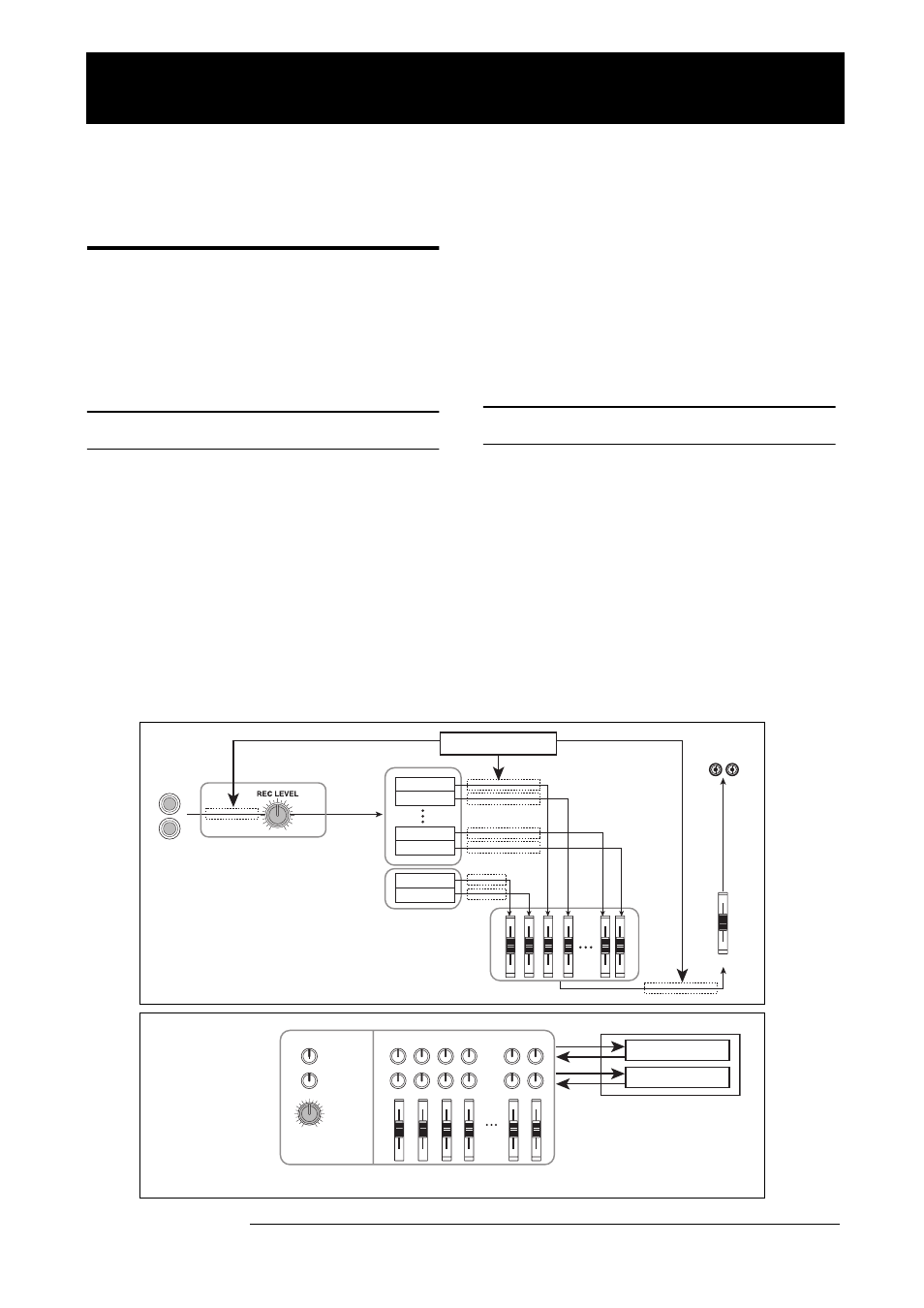

Reference [Effects]
