3.
Turn the dial to select the patch.
The selected patch becomes active immediately.
H INT
The indication “EMPTY” appears instead of the patch name
if the patch is empty.
4.
If you want to temporarily turn the insert effect off,
press the [BYPASS] key in the effect section.
The [BYPASS] key lights up, and the insert effect is
bypassed. Pressing the [BYPASS] key once more enables
the effect again.
5.
To return to the main screen, press the [EXIT] key.

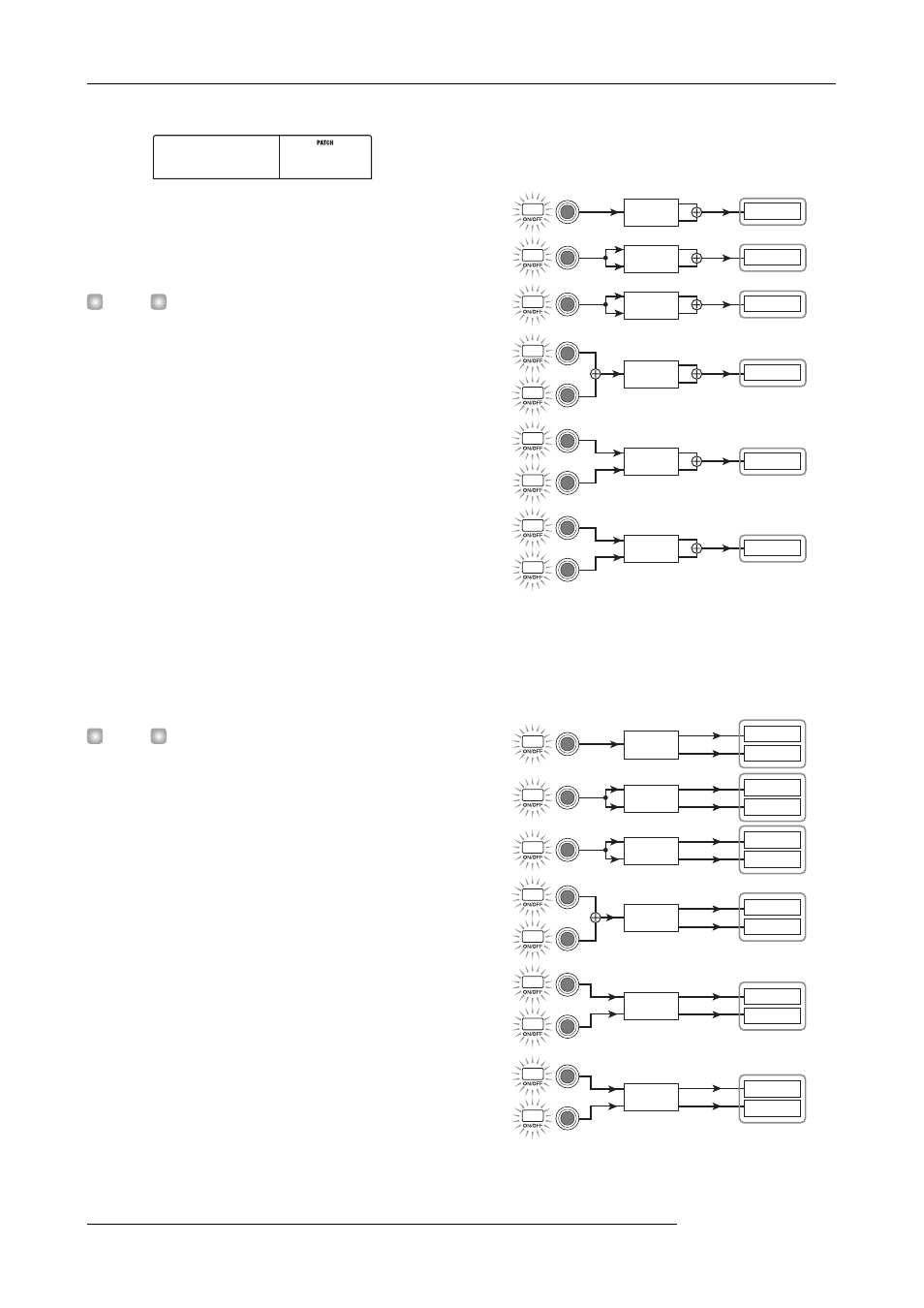

The flow of the signal that passes through the insert effect
will change as shown below, depending on the insert
location, the number of input signal channels (1 or 2
channels), and the input/output type of the insert effect. (“M
→ S” indicates mono input/stereo output, “S → S” indicates
stereo input/output, “Dual” indicates mono input/output x
2.)
H INT
When no recording track is selected, the output signal of the
insert effect is sent to a point directly before the [MASTER]
fader and mixed with the track mixer signal.
■
When inserted into the input mixer
● Recording on mono tracks (tracks 1 - 8)
● Recording on stereo tracks (9/10) or two mono tracks
(1/2, 3/4, 5/6, 7/8)
0
INSERT INSERT
Syn-Lead
Syn-Lead
Recorder
Track
Track
Track
Track
Track
Track
EFFECT
INPUT
( M → S )
EFFECT
( S → S )
EFFECT
( DUAL )
EFFECT
( M → S )
EFFECT
( S → S )
EFFECT
( DUAL )
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Track
Recorder
EFFECT
( M → S )
EFFECT
( S → S )
EFFECT
( DUAL )
EFFECT
( M → S )
EFFECT
( S → S )
EFFECT
( DUAL )
INPUT
