P-335 Series User’s Guide
Chapter 20 Media Bandwidth Management 253

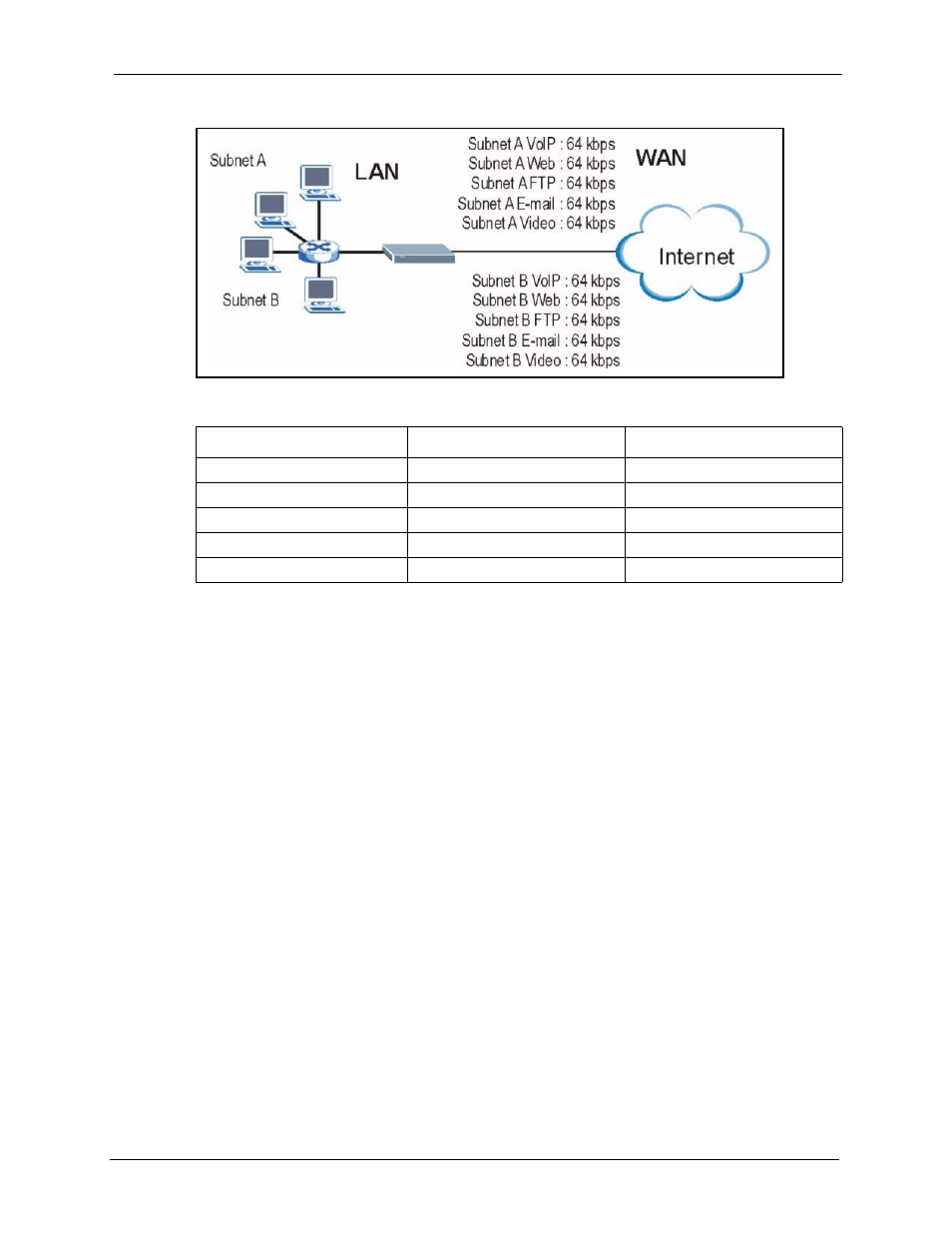

Figure 115 Application and Subnet-based Bandwidth Management Example
Table 82 Application and Subnet-based Bandwidth Management Example
TRAFFIC TYPE FROM SUBNET A FROM SUBNET B
VoIP 64 Kbps 64 Kbps
Web 64 Kbps 64 Kbps
FTP 64 Kbps 64 Kbps
E-mail 64 Kbps 64 Kbps
Video 64 Kbps 64 Kbps
20.1.4 Bandwidth Usage Example
Here is an example of a Prestige that has bandwidth usage enabled on an interface. The first
figure shows each bandwidth rule’s bandwidth budget. The rules are set up based on subnets.
The interface is set to 320 Kbps. Each subnet is allocated 64 Kbps. The unbudgeted 64 Kbps
allows traffic that does not match a bandwidth management rule to go out when you do not
select the Use All Managed Bandwidth option.
