Set Command Library

Command Format

Syntax

$PASHS,ANT,f1,f2,f3[,m4,f5][*cc]

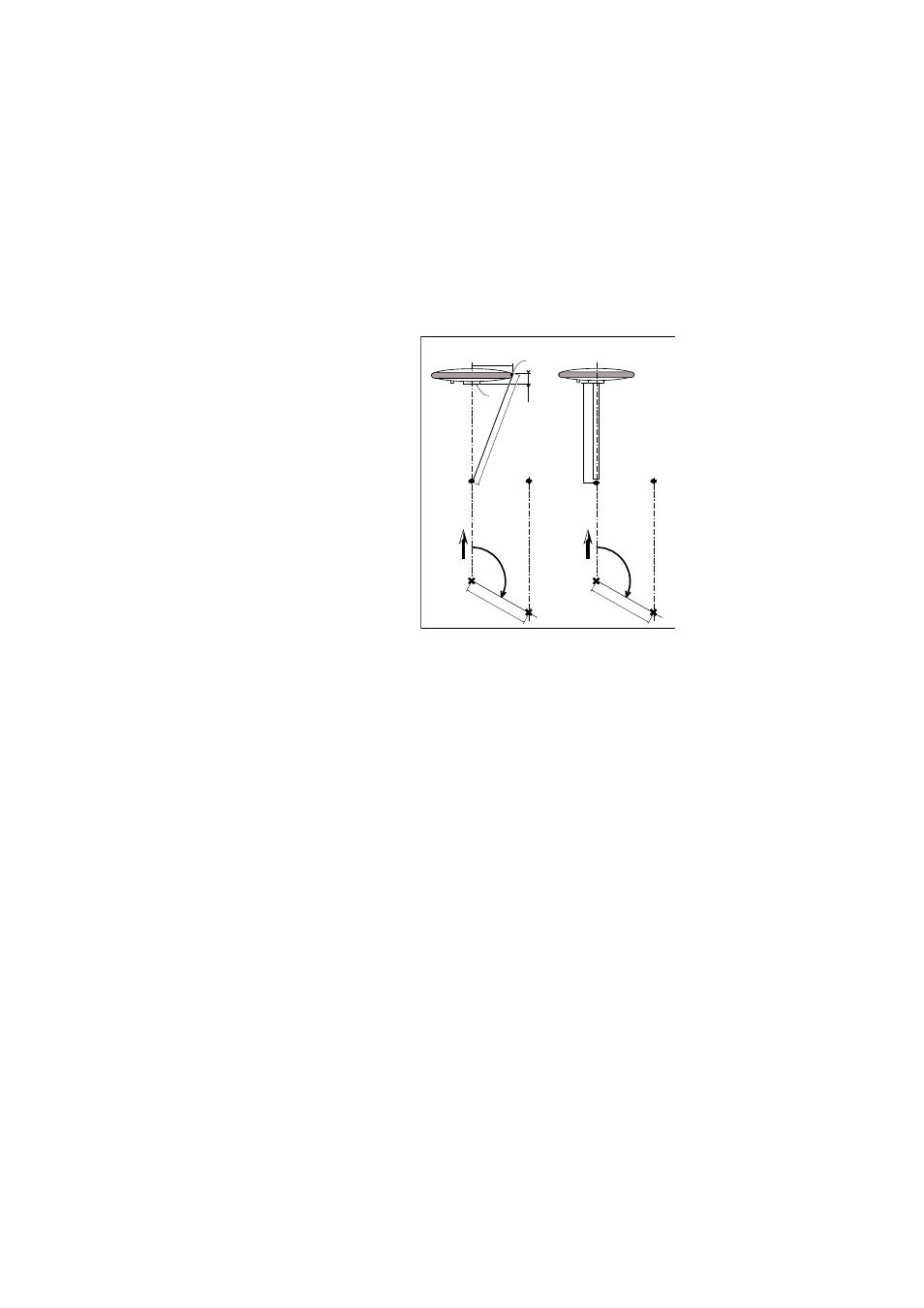

Diagrams and Definitions

• ARP: Antenna Reference Point (usually bottom of the

antenna).

• SHMP: Slant Height Measurement Point (usually at the

hedge of the antenna, above the ARP).

• Ground Mark (GM): above the ARP (same horizontal

coordinates).

• Survey Point (SP): same height as Ground Mark but with

a horizontal offset.

m4

f3

Slant Measurement

Vertical Measurement

ARP

f2

f3

f5

SHMP

GM

SP

SP

GM

GM

SP

SP

f1

N

m4

f5

GM

SP

SP

N
