Sensor check (model with cp compensation) – Honeywell DCP552 Mark II User Manual
Page 77
5-31
■ O
2
sensor check (model with CP compensation)
● Objective
As the O
2
sensor starts to deteriorate, its output impedance increases. This function
checks sensor output impedance and turns on the O
2
sensor error event when the
impedance exceeds 130kΩ.
● Setting
•One of the values set for setup data
C71
to
C74
is set to 11 to assign the O
2
sensor check to an external switch.
•One of the values set for event configuration data setting
E01-t
to
E16-t
is set to
142 to assign an O
2
sensor error event.
● Operation
•Two methods are used to perform an O
2
sensor check. In one method the external
switch which has been assigned the O
2
sensor check function goes from OFF to
ON. This is called a constant check.
•The other method the external switch is turned on each 24-hour period. This is
called an automatic check.
•The impedance is checked when PV1 is 800 °C or more and the O
2
input is
1000mV or higher.
•The O
2
sensor error event goes on when sensor impedance exceeds 130k;Ω
otherwise it remains off.

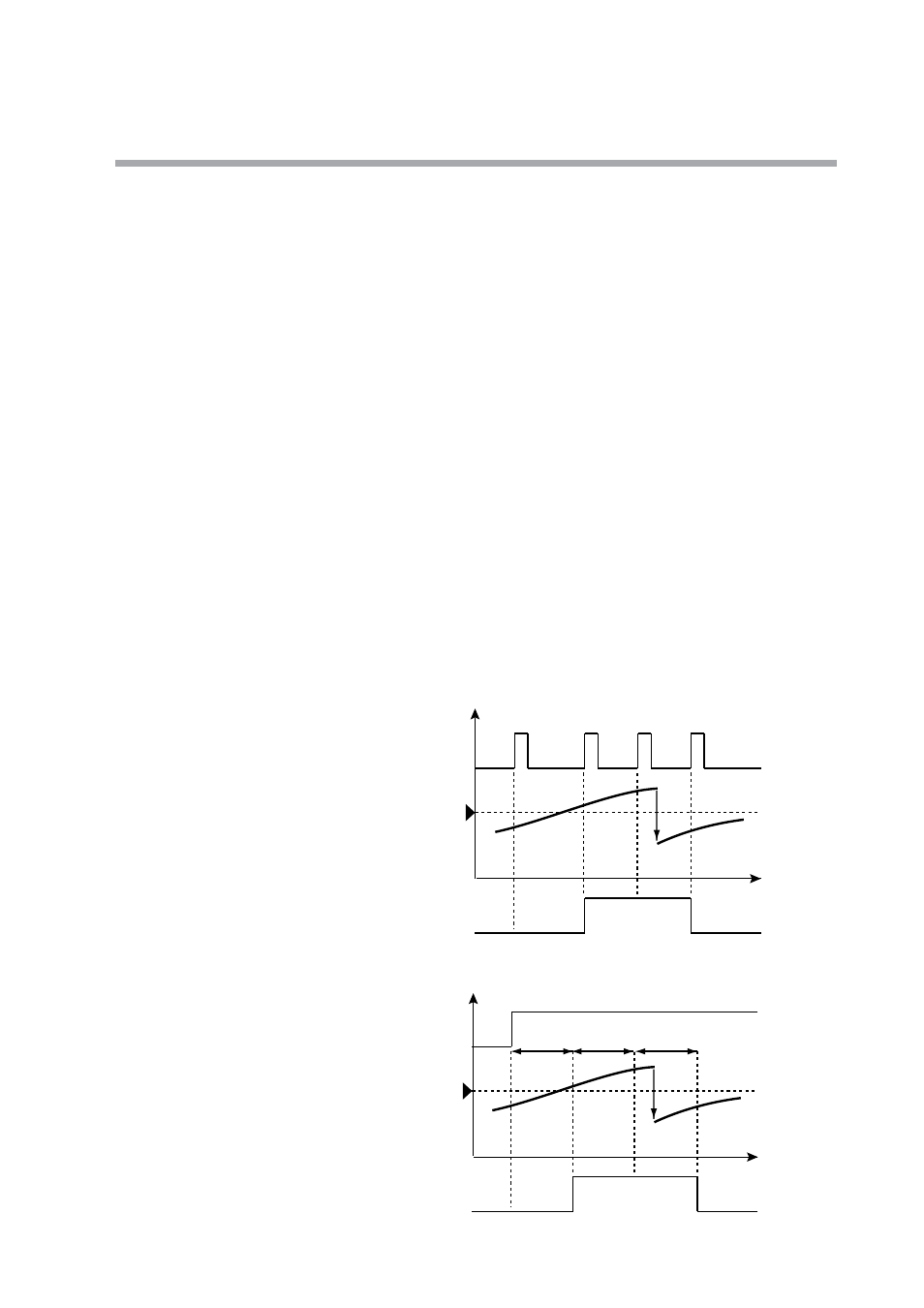

•The constant check method is shown below.
•The automatic check method is shown below.
