4 - 5 Power Supply and Grounding
4-6

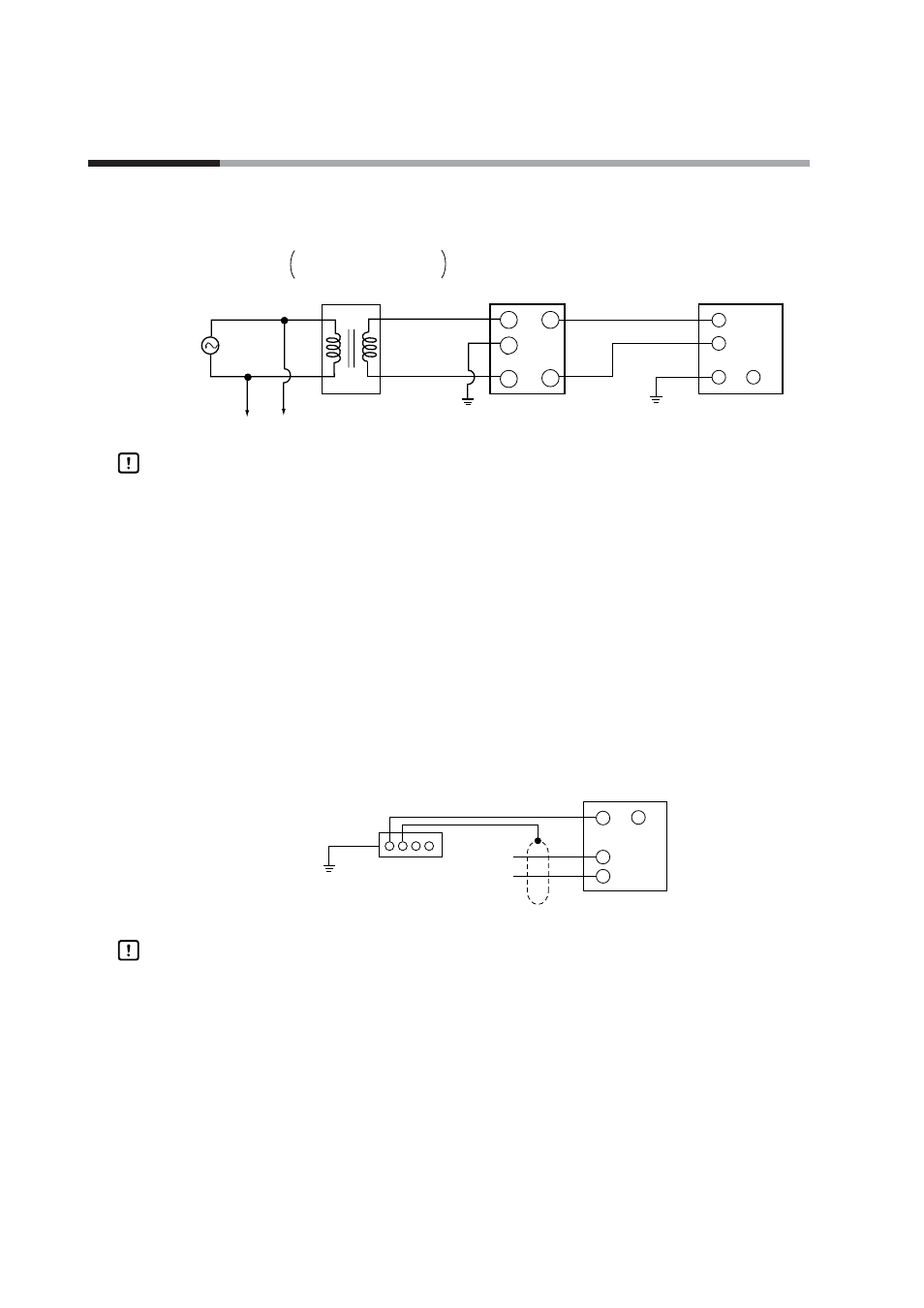

■ Power supply
To supply power to the DCP552 , use an instrument-dedicated single-phase power
supply subject to minimal electrical interference.
Handling Precautions
• If electrical interference proves excessive, we recommend adding an
insulating transformer and/or using a line filter.
model No.:
81446364-001
• After carrying out interference reducing measures, do not bundle the
primary and secondary power supply coils together or insert them in the
same conduit or duct.
■ Grounding
If grounding the shield wire or other lines proves difficult, ground them separately
to a grounding terminal block.
Type
: A ground resistance of maximum 100Ω
Conductor : Annealed copper wire, min. 2mm 2 (AWG14)
Max. Length : 20m
Handling Precautions
To ground the DCP552 , connect the FG terminal (terminal (52) or (53)) to a
single ground point without jumpering.
3 1
E
2 4
Recommended product
81446364-001
Line filter
Other circuits
100 to 240V AC
50/60Hz
200 to 240/200 to 240V
110 to 120/110 to 120V
Insulating transformer
Instrument power supply
Grounding Grounding
DCP552
GND
53 or
39
40
52
Chapter 4. WIRING
Ground with a ground resistance
of maximum 100½
,+2##
or 53
Grounding terminal block
FG terminals
52
Shield
