■ Setting tag items
(1) In the set value display state, move to the tag item to be set for the segment on
the programming map.
(A tag item is a program setting and is the same for each segment.)
(2) Press the ENTER key to display the cursor “__” below the leftmost of the 8
characters in the message panel “[ ]” field (registration of first setting).
(3) Use the ↑, ↓, ←, and → keys to make the first setting – selecting the 8
characters for the tag. The table below shows the 128 characters that can be
used.
(4) Press the ENTER key and the cursor in the message panel disappears.
(Pressing the FUNC and CLR keys causes the message panel return to
displaying an 8-character tag consisting of “ PROG ”, a two-digit program
number and two space characters. The cursor is turned off.)

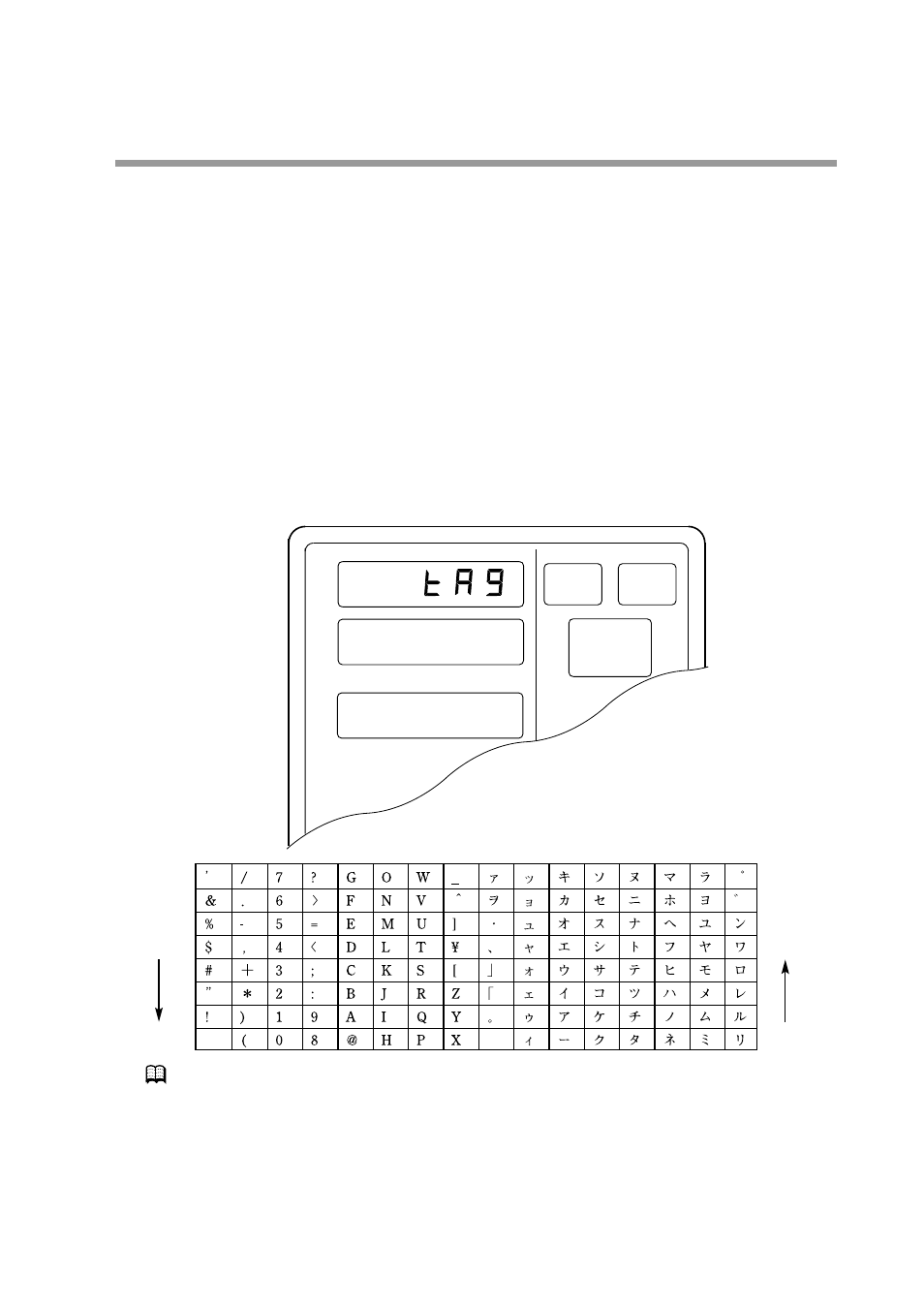

● Display
NOTE
A tag item setting does not use subfunctions.
The tag of CH1 program and CH2 program with same program number is
common.
PROG SEG
PROFILE
Program
number
Segment
number
Pattern trend
Tag setting
Chapter 8. PROGRAM SETUP
↓ key ↑ key
