7-3

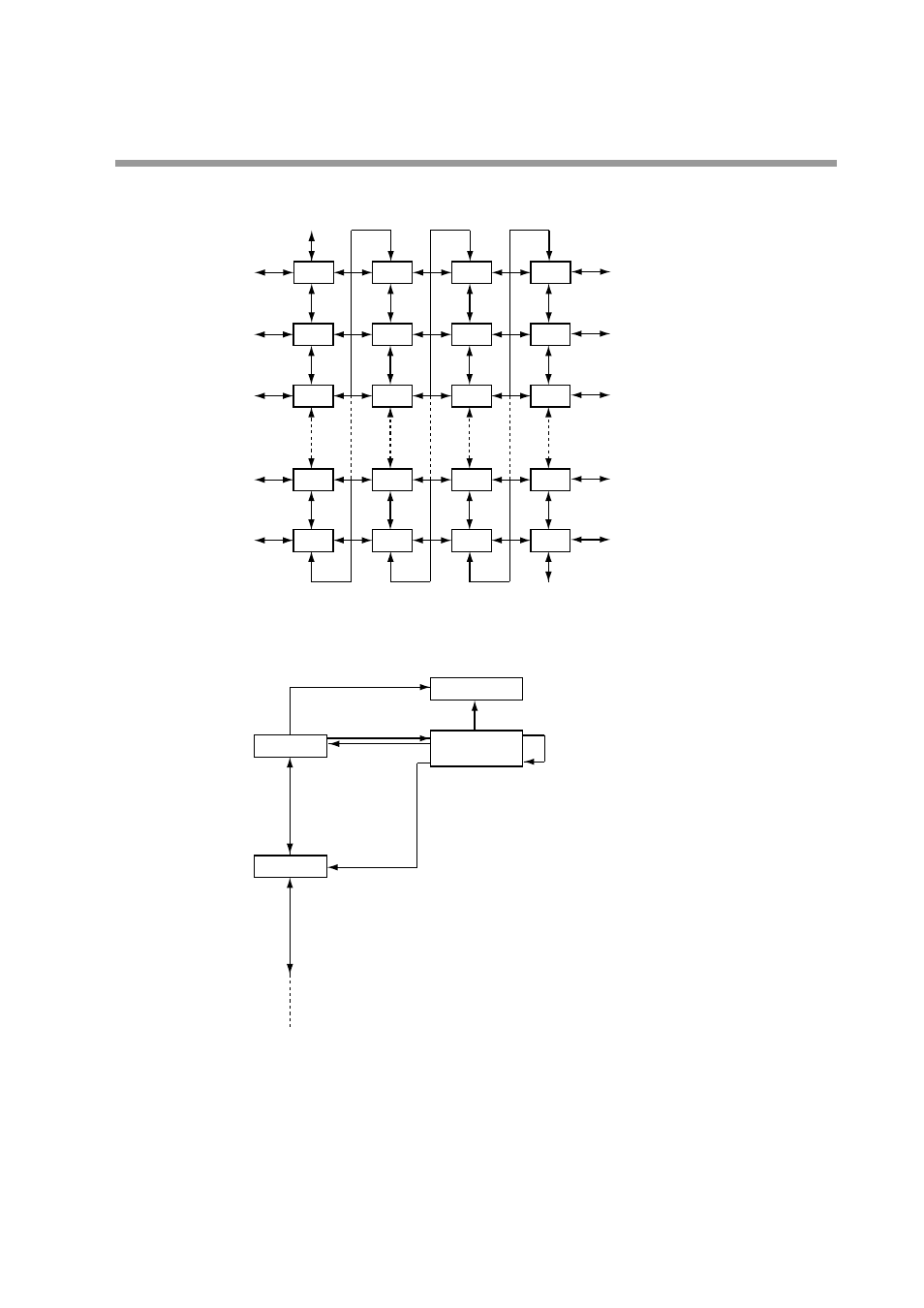

• Example of individual item matrix (setup data)
C01 C91 C11 C81 C91
C02 C92 C12 C82 C92
C03 C93 C13 C83 C93
C09 C99 C19 C89 C99
C10 C100 C20 C90 C100
C01
C02
C03
C09
C10
C01
C100
Normal display mode
DISP key
Set value
flashes
Change set value
ENTER key
ENTER key *
Individual item
Individual item
↑ , ↓ key
DISP key
Use the PARA, PID or SETUP keys. **
(as required by the specific settings group)
* : The ENTER key stores set values in memory.
**: The ENTER, PID or SETUP keys do not store set values in memory.
← , → key
↑ , ↓ key
← , → key
↑ , ↓ key
← , → key
Chapter 7. PARAMETER SETUP
