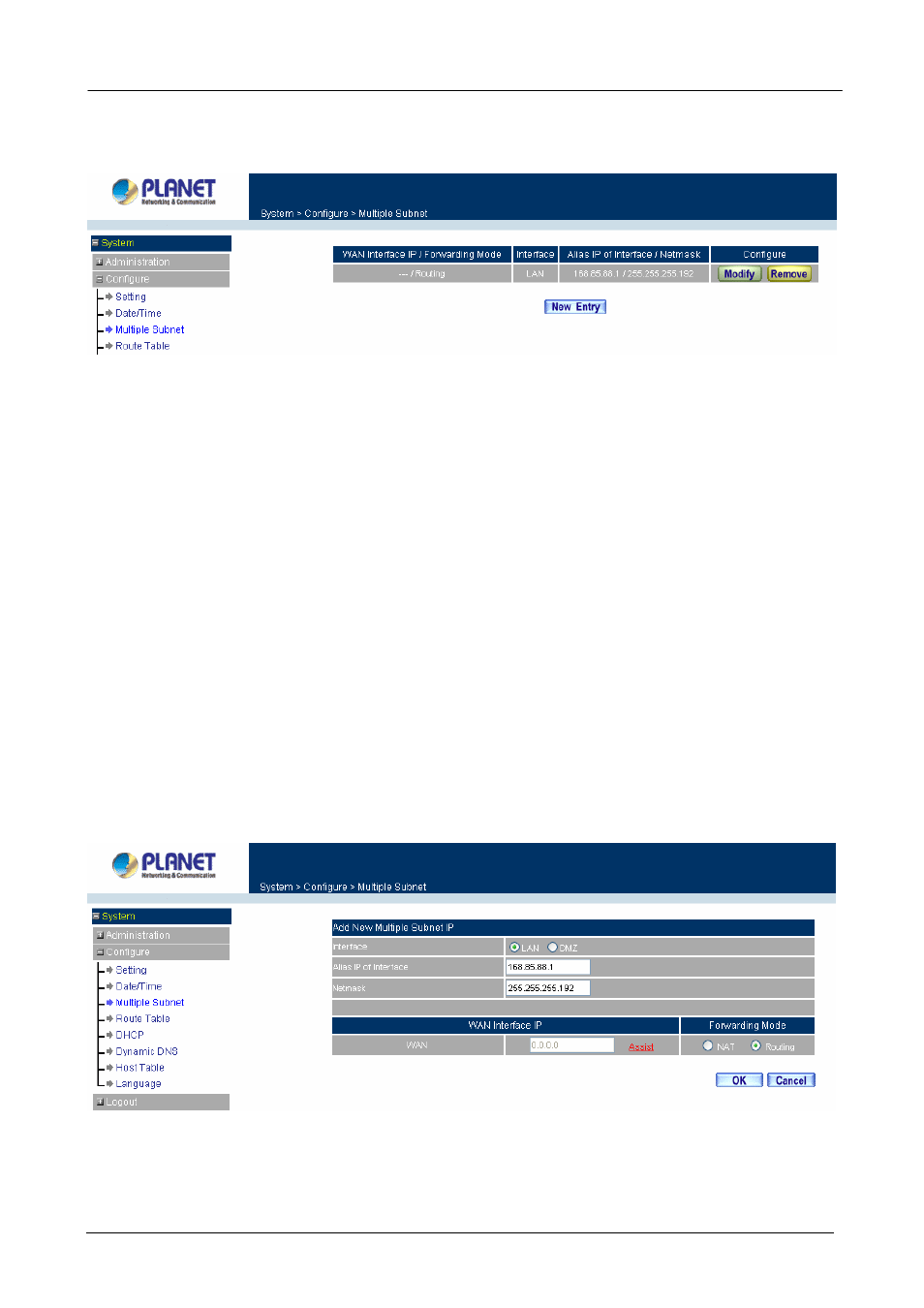

Click System on the left side menu bar, then click Multiple Subnet below Configure menu. Enter Multiple
Subnet window.
Multiple Subnet functions
WAN Interface IP / Forwarding Mode:
Display WAN Port IP address and Forwarding Mode which is NAT
Mode or Routing Mode.
Interface:
Indicate the multiple subnet location in LAN or DMZ site.
Alias IP of Interface / Netmask:
Local port IP address and subnet Mask.
Configure:
Modify the settings of Multiple Subnet. Click Modify to modify the parameters of Multiple Subnet
or click Delete to delete settings.
Adding a Multiple Subnet Routing Mode
Step 1:
Click the Add button below to add Multiple Subnet.
Step 2:
Enter the IP address in Add Multiple Subnet window.
Alias IP of Interface:
Enter Local port IP Address.
Netmask:
Enter Local port subnet Mask.
WAN Interface IP:
Add WAN IP
Forwarding Mode:
Click the Routing button below to setup.
Step 3:
Click OK to add Multiple Subnet or click Cancel to discard changes.
Step 4:
Adding a new WAN to LAN Policy. In the Incoming window, click the New Entry button.
