Multi-Homing Security Gateway User’s Manual

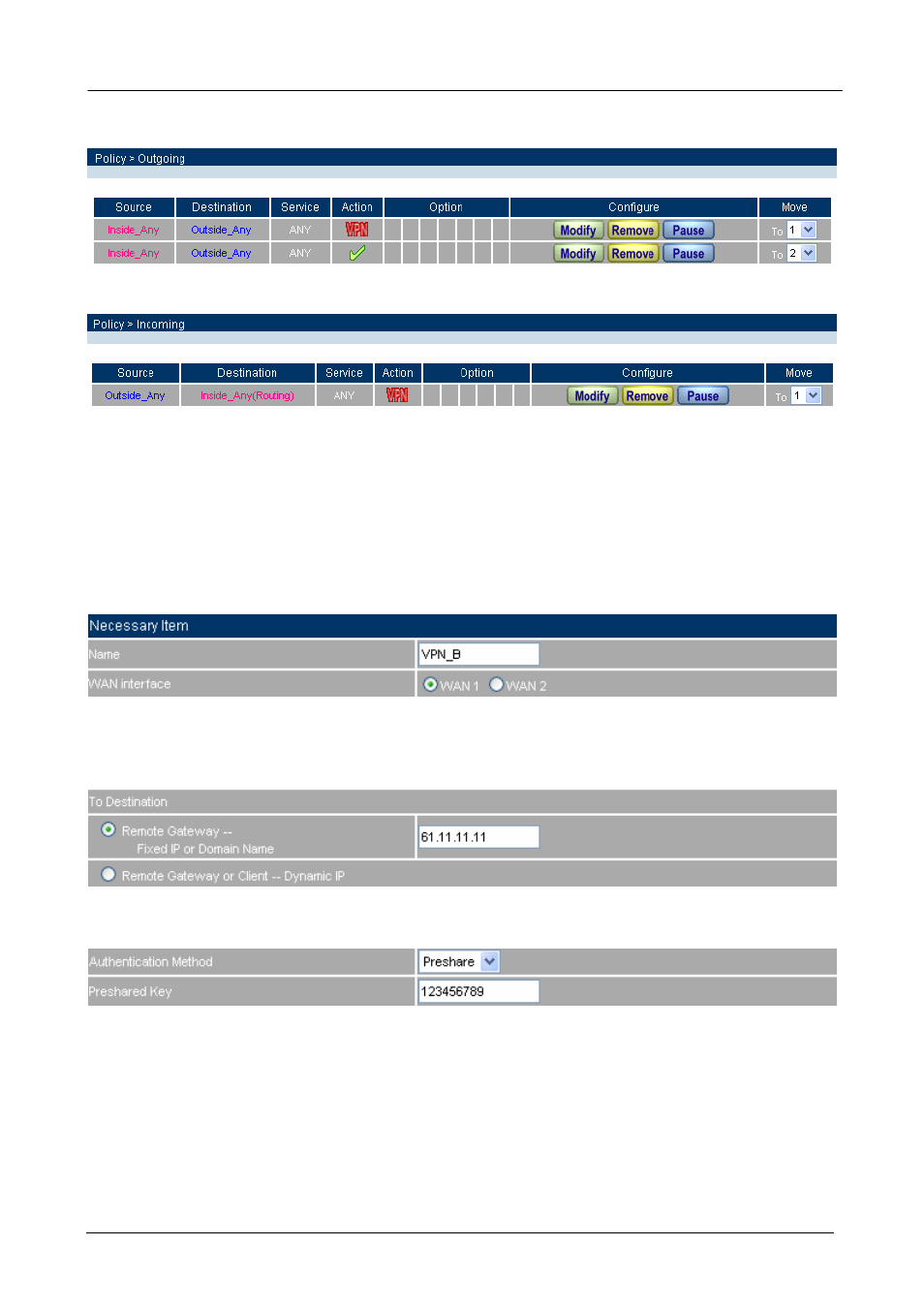

Outgoing Policy:
Incoming Policy:
The Gateway of Company B is 192.168.20.1. The settings of company B are as the following.
Step 1. Enter the default IP of Company B’s Multi-Homing Security Gateway, 192.168.20.1. Click VPN in the
menu bar on the left hand side, and then select the sub-select IPSec Autokey. Click Add.
Step 2. Enter the VPN name, VPN_B in IPSec Autokey window, and select the WAN interface you want to
create the VPN tunnel.
Step 3. In To Destination table, choose Remote Gateway-Fixed IP or Domain Name, enter the IP address
desired to be connected.
Step 4. In Authentication Method Table enters the Preshared Key.
Step 5. Enable Aggressive mode. For communication via VPN, the Multi-Homing Security Gateway will force
you to choose 3DES for ENC Algorithm, SHA-1 for AUTH Algorithm and select Group 2 to connect.
Local ID and Remote ID are optional parameters. If we choose to enter Local ID/ Remote ID, they couldn’t be
the same. For instance, Local ID is 11.11.11.11 and Remote ID is 22.22.22.22. If you want to use number or
text, add @ in the front, for instance, @123 and @abc.
