HEIDENHAIN MANUALplus 620

425

5.14 Cont

ours in the XY plane

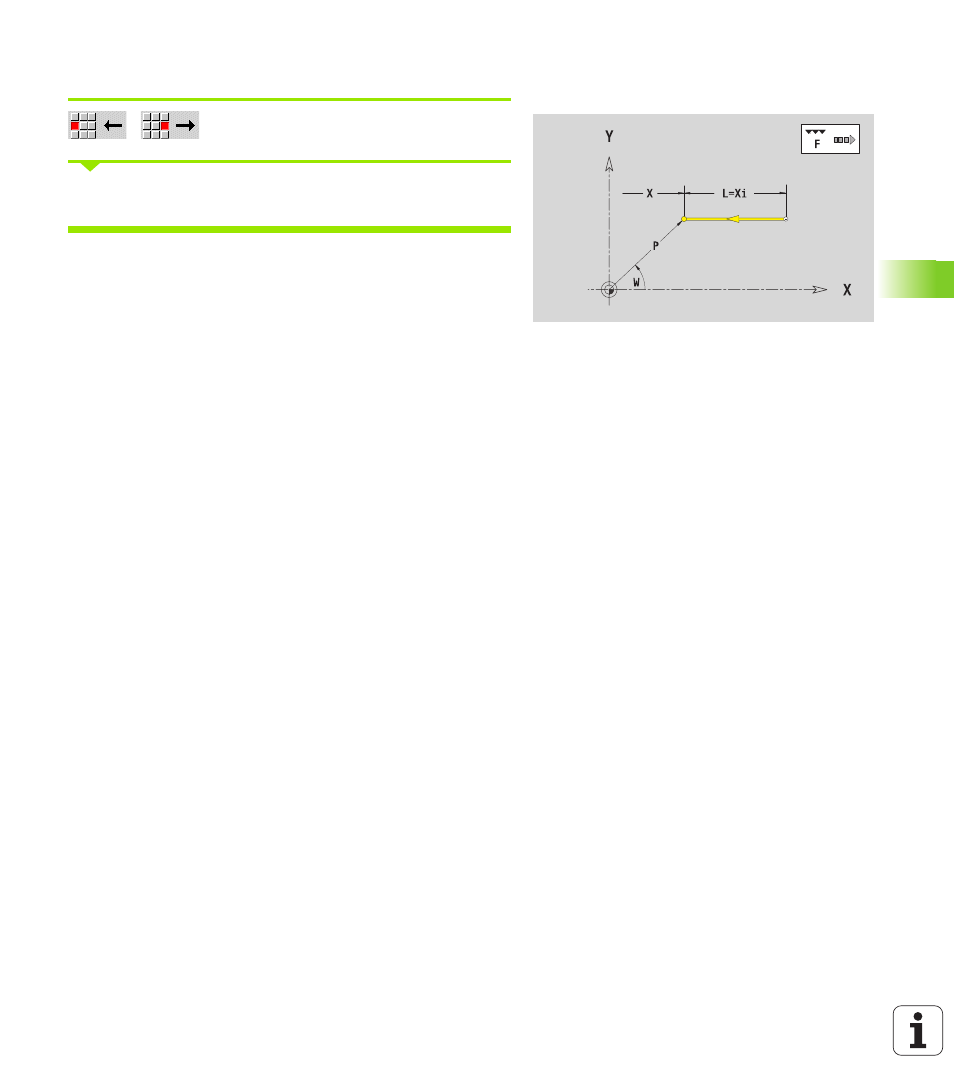

Horizontal lines in XY plane

Select the line direction.

Enter the line dimensions and define the transition to the next
element.

In smart.Turn, ICP generates a G171.

Parameters
X

Target point

Xi

Incremental target point (distance from starting point to
target point)

W

Polar target point (angle)

P

Polar target point

L

Length of line

F: See machining attributes on page 357
