344 Cycle programming
4.9 Dr
illing and milling pat
ter
ns

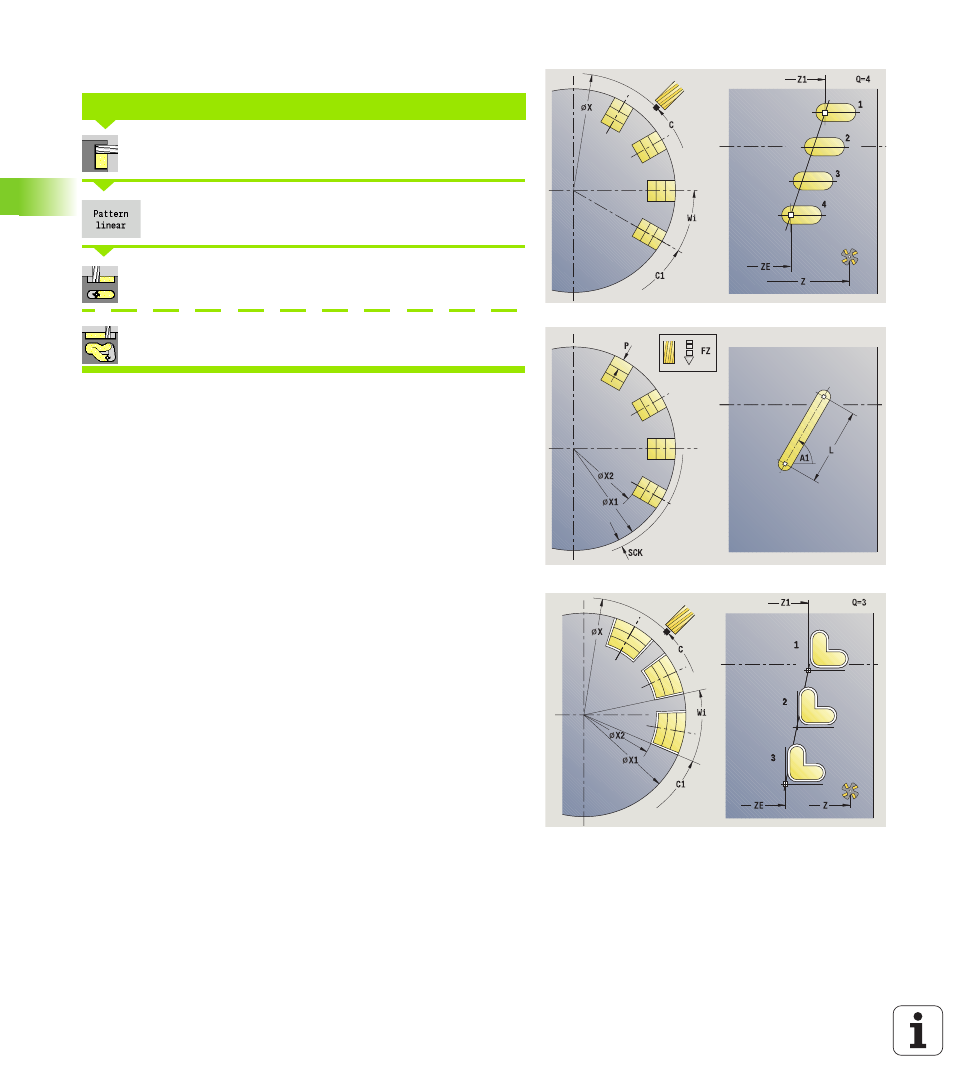

Linear milling pattern, radial
Select milling
Press the Pattern linear soft key
Select slot, radial
Select ICP contour, radial
Press Pattern linear during milling cycles to machine milling patterns
in which the individual features are arranged at a regular spacing in a
straight line on the lateral surface.
You define the pattern position with end point of pattern and angle
increment
or angle increment and number of slots.
The parameters of the milling operation are also requested.
MILLING PATTERN LINEAR, RADIAL
Cycle parameters
X, Z
Starting point
C Spindle angle (C-axis position)—(default: current spindle
position)
Q Number of slots
Z1 Starting point of pattern (position of 1st slot)
ZE End point of pattern (default: Z1)
C1 Angle of 1st slot (starting angle)
Wi Angle increment (pattern spacing) – (default: milling
operations are arranged at a regular spacing in a circle)
