KAM-AV and KAM-SD Links and Web Pages
No Embedded Audio
If no embedded audio groups are present in the incoming SDI signal, the
Group Deletion input status section will appear as shown in
Figure 48 .
Input Status is Not Present and Output Status is Empty for each audio group.
No deletion or Group Replacement is possible with this status.

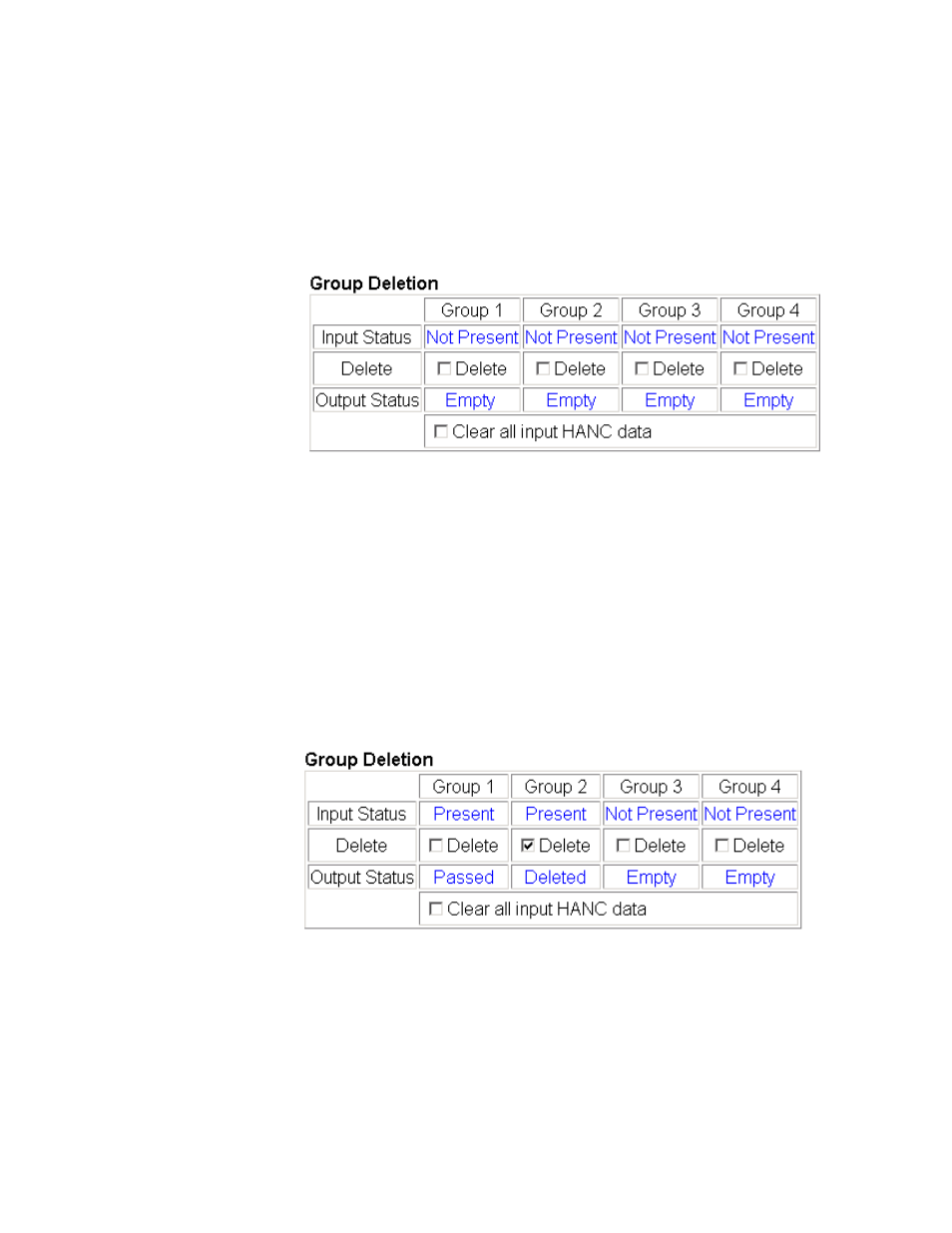

Figure 48. No Embedded Audio Present
Pass and Delete Embedded Audio
If an embedded audio group is present in the incoming SDI signal and has
been selected for
No Extraction on the DEMUX web page, the audio group
will be passed to the output as shown in Figure 49 . Input Status is Present
and Output Status is Passed.
Audio groups present in the incoming SDI stream may also be deleted.
Check the corresponding
Delete checkbox to remove an audio group com-
pletely that is reported as Present from the SDI stream. The Output Status
will report Deleted .
Figure 49. Pass and Delete Embedded Audio
