KAM-AV and KAM-SD Links and Web Pages
SDI Input Web Page
On the KAM-AV or KAM-SD, use the SDI In web page to view the status of
the SDI input signal in Summary view or Detail view:
• Select the Summary radio button to bring up the summary view shown
in Figure 35 .
• Use the Clear All Status button to clear and reset the status reporting.
Current State
The Current State summary window will indicate Error if any error report
shown in the Detail status field is logged.
Reported Errors
If any error report shown in the Detail status field is logged, the Reported
Errors window in the Summary field will say Error . Error reports are not
reported to Kameleon status pages or SNMP monitoring devices unless
they are enabled (checked) in the
Detail field.

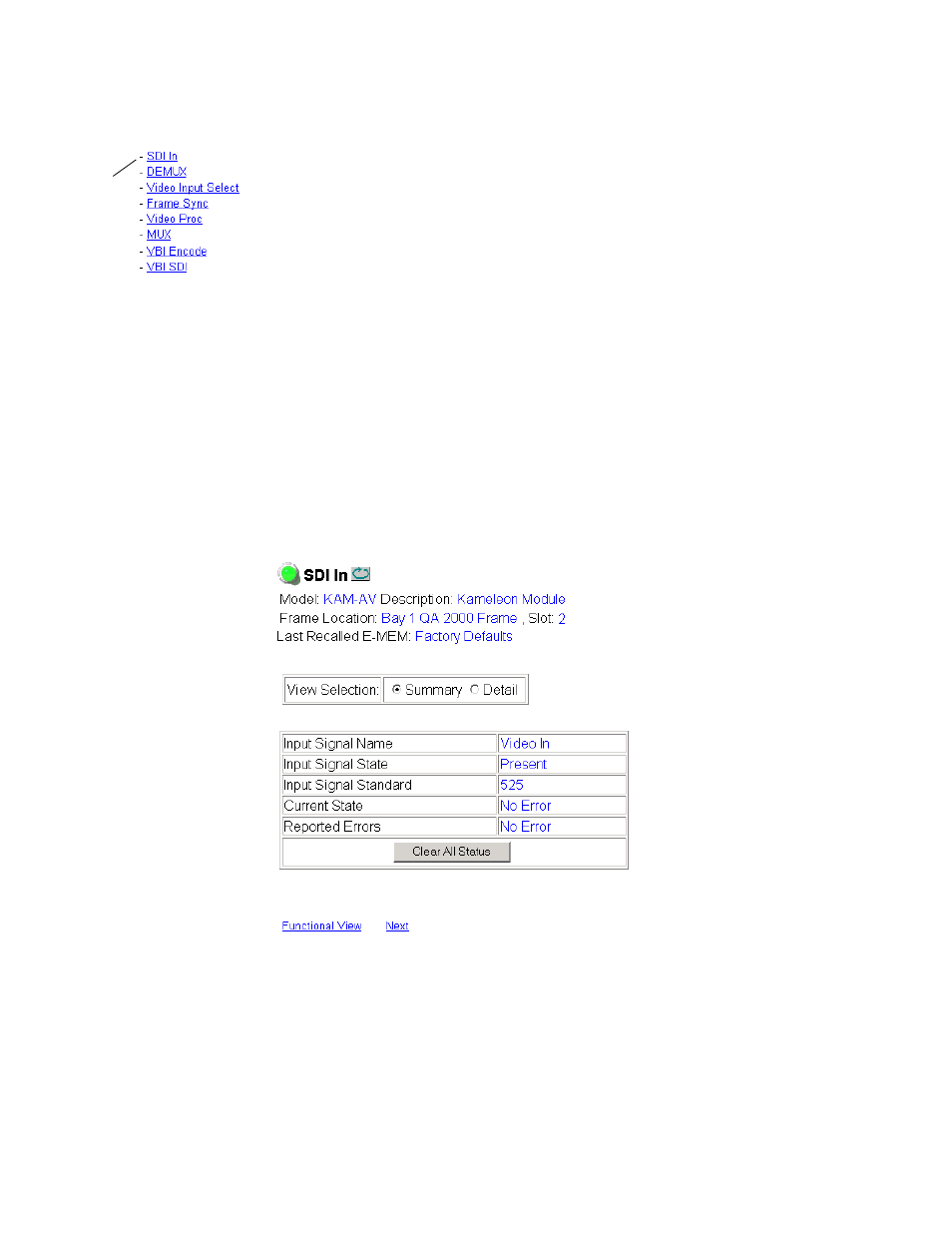

Figure 35. SDI In Web Page – Summary View
To view a detailed view of the SDI input status, select the Detail radio button
to bring up the view shown in Figure 36 on page 67 .
This view provides input signal status for both EDH Error and Feed
Forward status. Each status report can be disabled by deselecting the cor-
responding
Reporting checkbox. Each status report can also be cleared and
reset by selecting the corresponding Clear Status button.
Use
this
link
