Kameleon Series Instruction Manual 23
Installation
KAM-AES-R Configurations
The KAM-AES-R rear I/O module accepts either SDI or composite video
(KAM-AV only). Seven BNC connectors are provided—three for video and
four for unbalanced AES/EBU I/O. Four three-terminal audio connectors
are provided for AES/EBU balanced audio I/O. AES/EBU connectors are
configured in pairs as shown in
Figure 12 .
Note Only the selected AES outputs are valid. Unconfigured AES outputs are
invalid and should not be used.

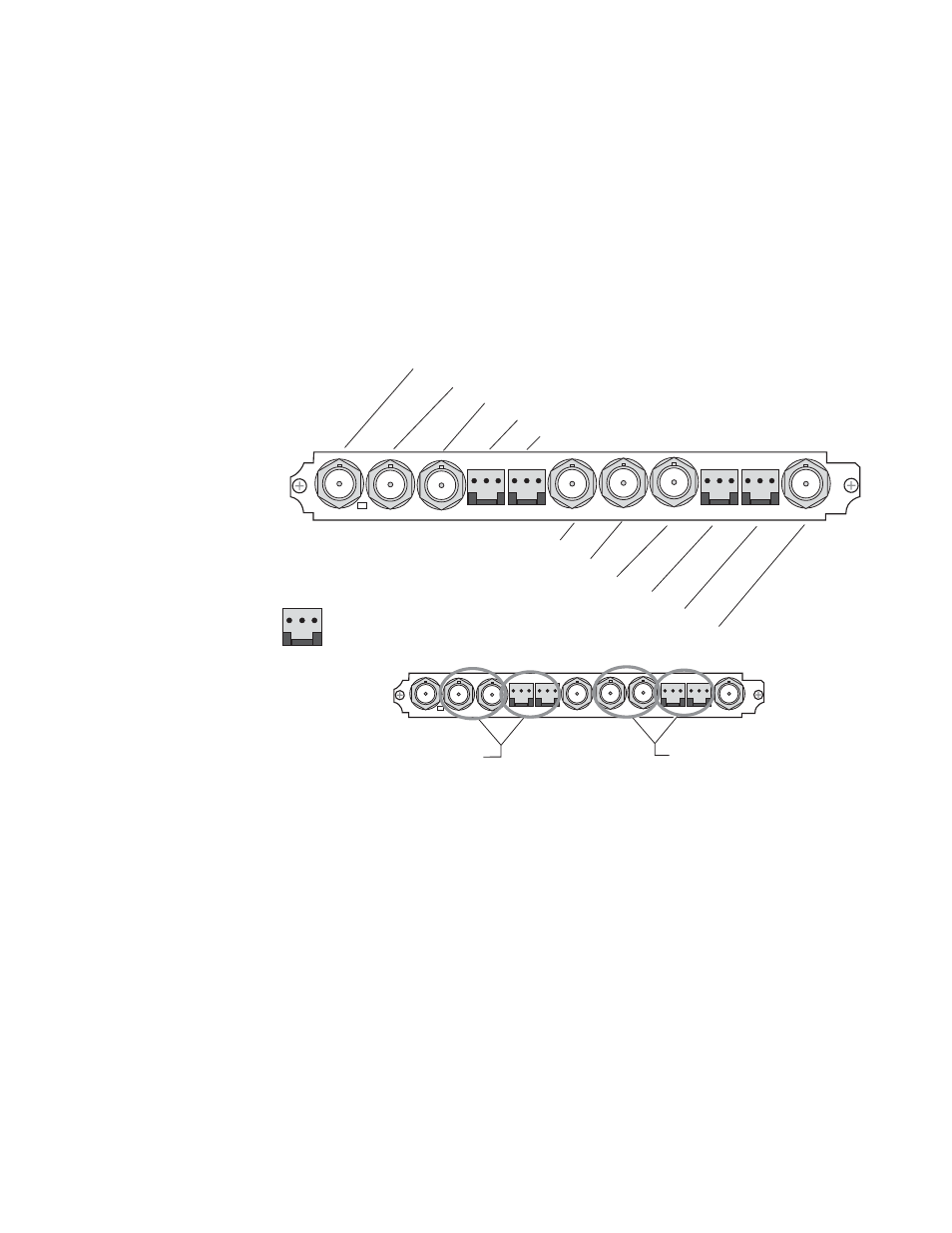

Figure 12. KAM-AES-R Input/Output Connectors
8173-11r1
Audio
Connector
pinout
+ – G
J11
SIG
SIG
SDO
2900
PRM-7
J1 J6 J2 J3 J5 J4 J7 J8 J9 J10
CVO AES
3
AES
1
AES
2
AES
4 AES 2 AES 1 AES 4 AES 3
AES connector use:
Paired connectors,
must use either
balanced or unbalanced Paired connectors,
must use either
balanced or unbalanced
J11 VI, SDI or Composite Video In
J10 AES1, Unbalanced AES/EBU Audio In/Out
J9 AES2, Unbalanced AES/EBU Audio In/Out
J8 AES1, Balanced AES/EBU Audio In/Out
J7 AES2, Balanced AES/EBU Audio In/Out
J6 CVO, Composite Video Out
J5 AES3, Unbalanced AES/EBU Audio In/Out
J4 AES4, Unbalanced AES/EBU Audio In/Out
J3 AES3, Balanced AES/EBU Audio In/Out
J2 AES4, Balanced AES/EBU Audio In/Out
J1 SDO, SDI Video Out
