Kameleon Series Instruction Manual 53
KAM-AV and KAM-SD Links and Web Pages
Figure 26 illustrates the KAM-AA-AES-UR Rear module I/O Config web
page. The type of submodule in Position 1 will determine whether Analog
Audio connectors J8 and J9 are inputs or outputs. The submodule in Posi-
tion 2 will determine whether Analog Audio connector J6 is an input or an
output.
AES unbalanced connectors J2, J3, J4 and J5 can be defined as all inputs, all
outputs, or 2 inputs and 2 outputs with the pulldown controls on this I/O
web page.
Note If the KAM-AA-AES-UR Rear module is installed in a frame with a 2000NET
card running version 3.2.2 software, the dual Analog Audio graphics will be
shown as boxes with red X’s. The dual audio graphic is not recognized by this
version 2000NET card. Functionality is not affected.
Refer to Table 6 on page 26 for submodule I/O combinations and Figure 13
on page 25 for cabling information.

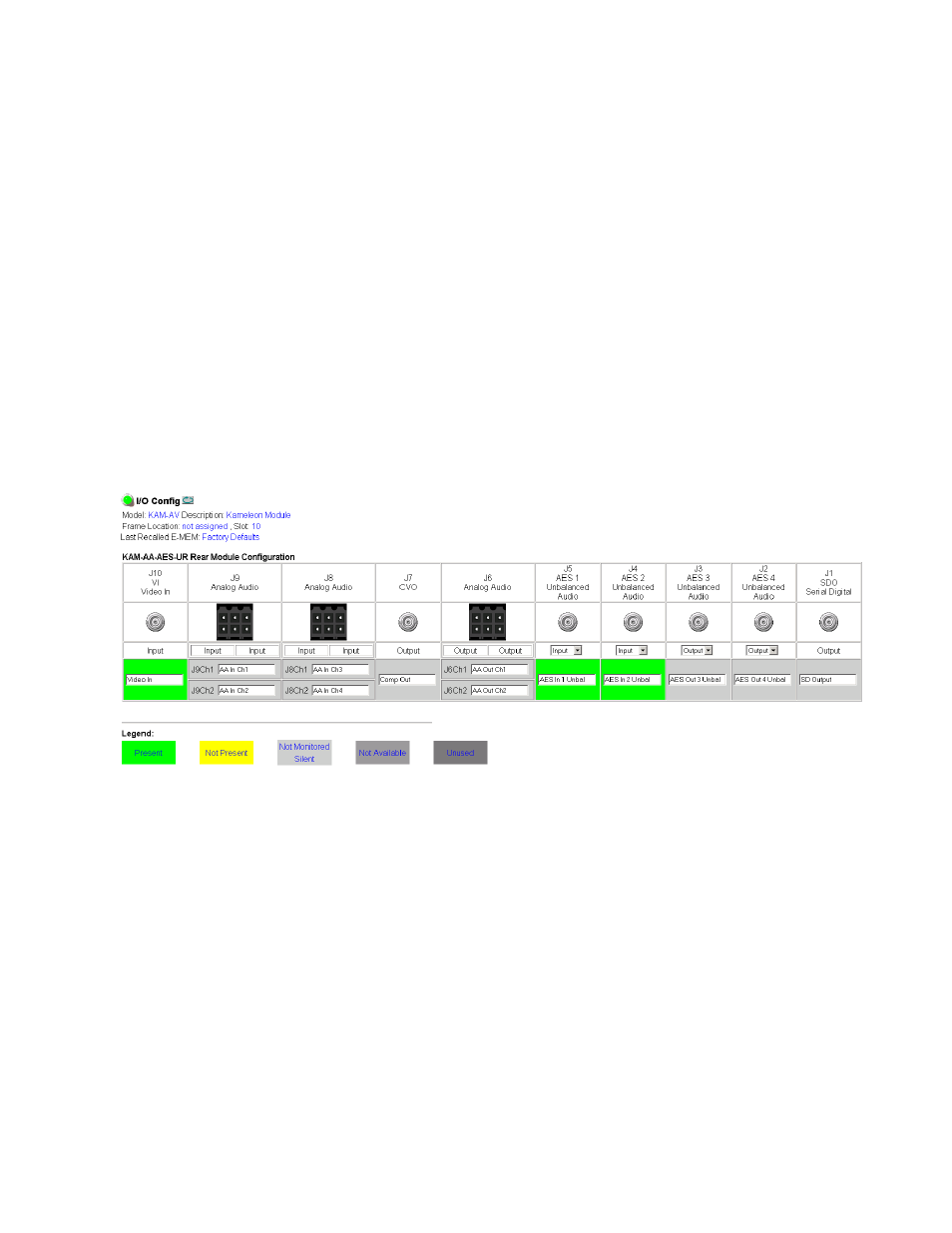

Figure 26. KAM-AA-AES-UR Rear Module I/O Configuration Web Page
