Kameleon Series Instruction Manual 25
Installation
KAM-AA-AES-UR Configurations
The KAM-AA-AES-UR rear I/O module ( Figure 13 ) accepts either SDI or
composite video (KAM-AV only). Three BNC connectors are provided for
video—one video input, one composite output (KAM-AV only), and one
SDI video output. Three dual terminal audio connectors are provided for
analog audio input or output I/O. Four BNCs are provided for unbalanced
input or output AES I/O.

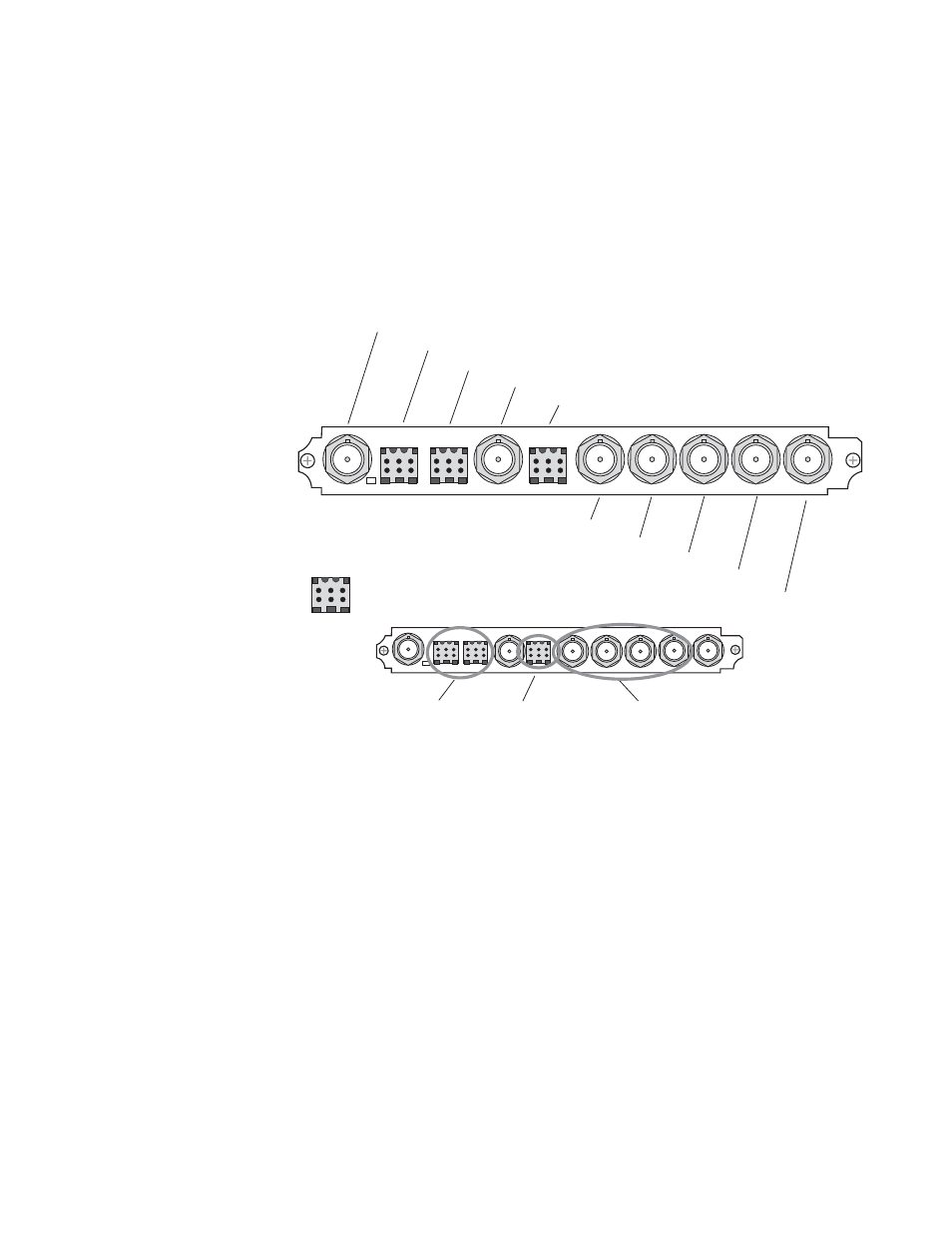

Figure 13. KAM-AA-AES-UR Input/Output Connectors
Analog Audio Analog Audio
J10
V1
SIG
SDO AES AES AES AES
KAM-AA
AES-UR
J1 J2 J3 J4 J5 J6 J7 J8 J9
CVO
Analog Audio:
All Inputs or
All Outputs Unbalanced AES: (Four Streams)
All Inputs, All Outputs or independently
selectable as inputs or outputs.
Connector Use:
Analog Audio:
All Inputs or
All Outputs
Dual Audio
Connector
pinout
+ – G
8173-36
J10 VI, SDI or Composite Video In
J7 CVO, Composite Video Out
J9 Analog Audio, In or Out
J6 Analog Audio, In or Out
J8 Analog Audio, In or Out
J1 SDO, SDI Video Out
J5, Unbalanced AES/EBU, In or Out
J4, Unbalanced AES/EBU, In or Out
J3, Unbalanced AES/EBU, In or Out
J2, Unbalanced AES/EBU, In or Out
