Kameleon Series Instruction Manual 51
KAM-AV and KAM-SD Links and Web Pages
Figure 24 illustrates the KAM-MIX-R Rear module I/O Config web page.
The type of submodule in Position 1 will determine whether Analog Audio
connectors J7-J10 are all inputs or all outputs. Submodule 2 is not used with
this rear module.
Select the type of AES I/O with the Unbalanced or Balanced radio buttons. The
selected AES connectors can be defined as inputs or outputs with the pull-
down controls on this web page.
Refer to Table 3 on page 22 for submodule I/O combinations and Figure 11
on page 22 for cabling information.
Note Only the selected AES outputs are valid. Unconfigured AES outputs are
invalid and should not be used.

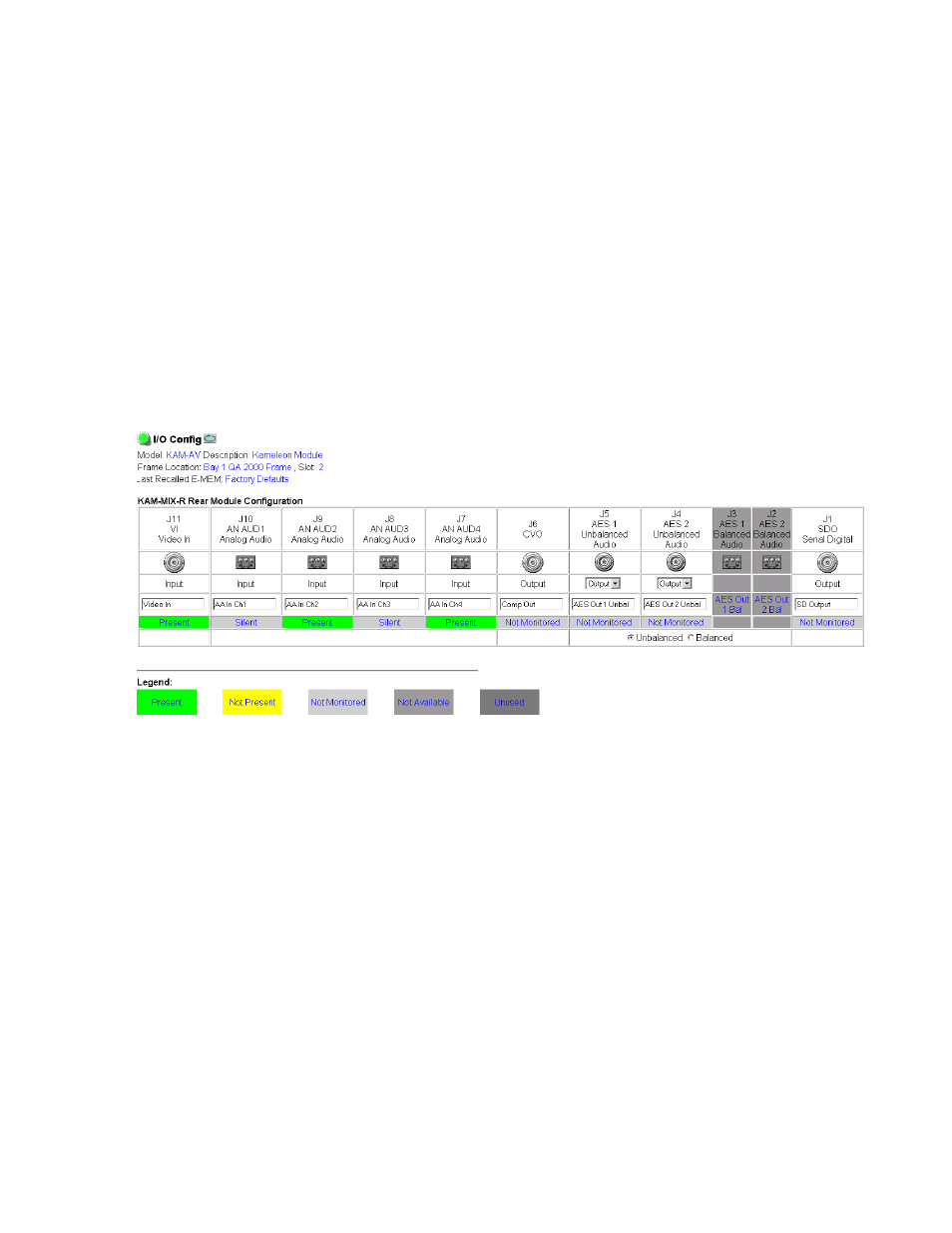

Figure 24. KAM-MIX-R Rear Module Configuration Web Page
