53
iMC-Panel-100
Operator’s Guide (for Imagestore 750s)

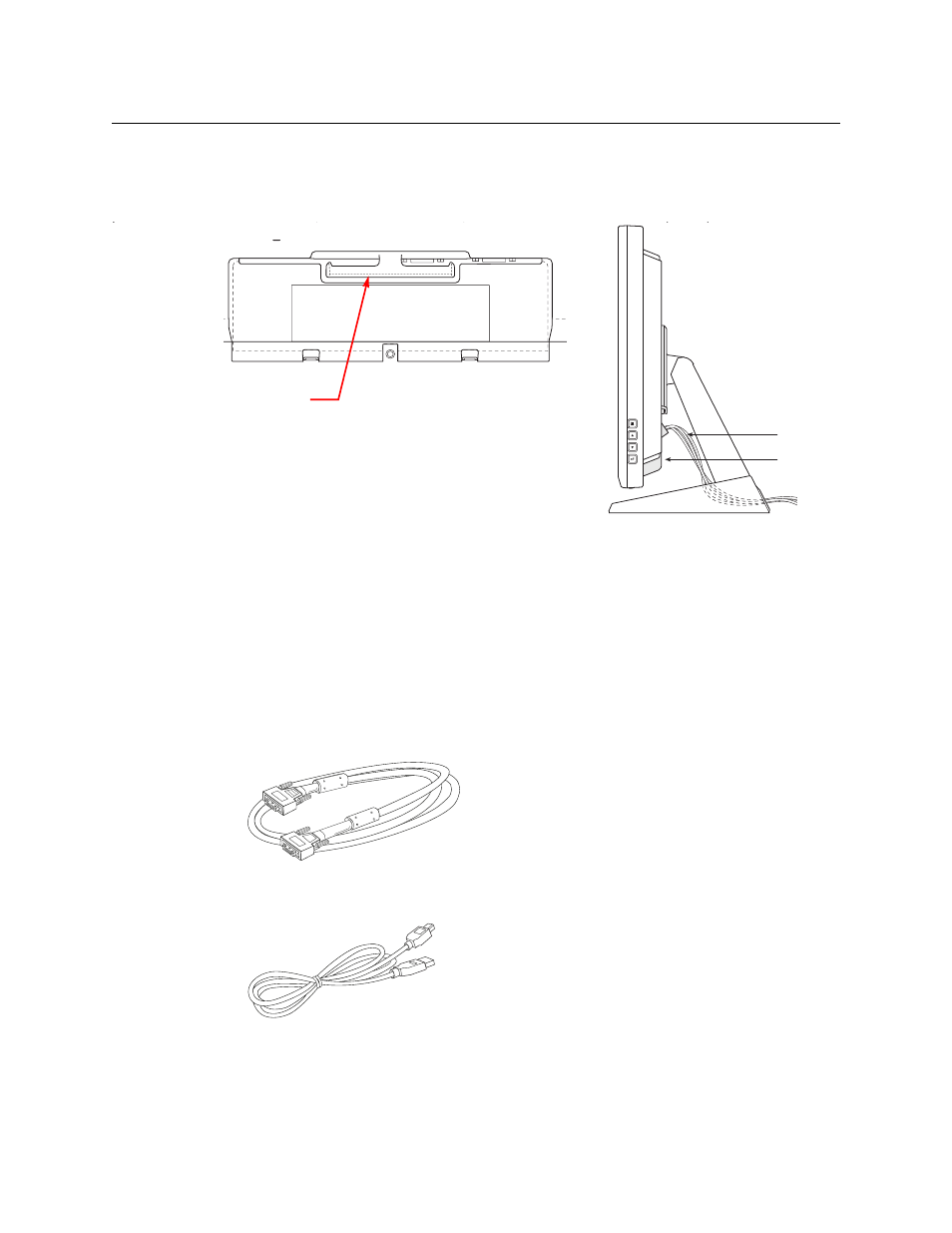

Cabling
If you are using the display with its stand, route the cables through the cable harness (in the
wiring recess) and then through the cavity in the middle of the stand:
If you are not using the stand, it is not necessary to use the cable harness.
In any case, you will have to remove the cover of the wiring recess to perform some of these
steps.
1 Connect a power supply or power supplies (PS0001) to either or both of the power connec-
tors of the button panel. Then connect the power supplies to AC power.
2 Connect the button panel’s Ethernet port to a port on the Ethernet switch of the master con-
trol network.
Later, you will assign an IP address to the iMC-Panel-100.
3 Using the supplied VGA cable, connect the VGA port of the button panel to the VGA port of
the display:
4 Using the supplied USB cable, connect the USB port of the display to one of the USB ports of
the button panel:
5 If you wish to use a mouse with the iMC-Panel-100, connect the mouse to the remaining USB
port of the button panel. (The mouse must, of course, have a USB connector.)
Cables
Recess Cover
Cable Harness
