126
Operation
Working with DSKs
The large red outline represents the screen boundary. The darker gray rectangle represents the
DSK.
Crop
Either (1) press ‘Adjust Crop’ modify the crop values of the DSK, (2) press ‘Clear Crop’ to reset its 4
crop values 0, or use the four controls at the bottom of the window to enter values. (Press the
keypad icon to enter a number with a keypad or use the knob proxy next to the parameter’s
green asterisk.)
The crop values do not change the position value and vice versa.

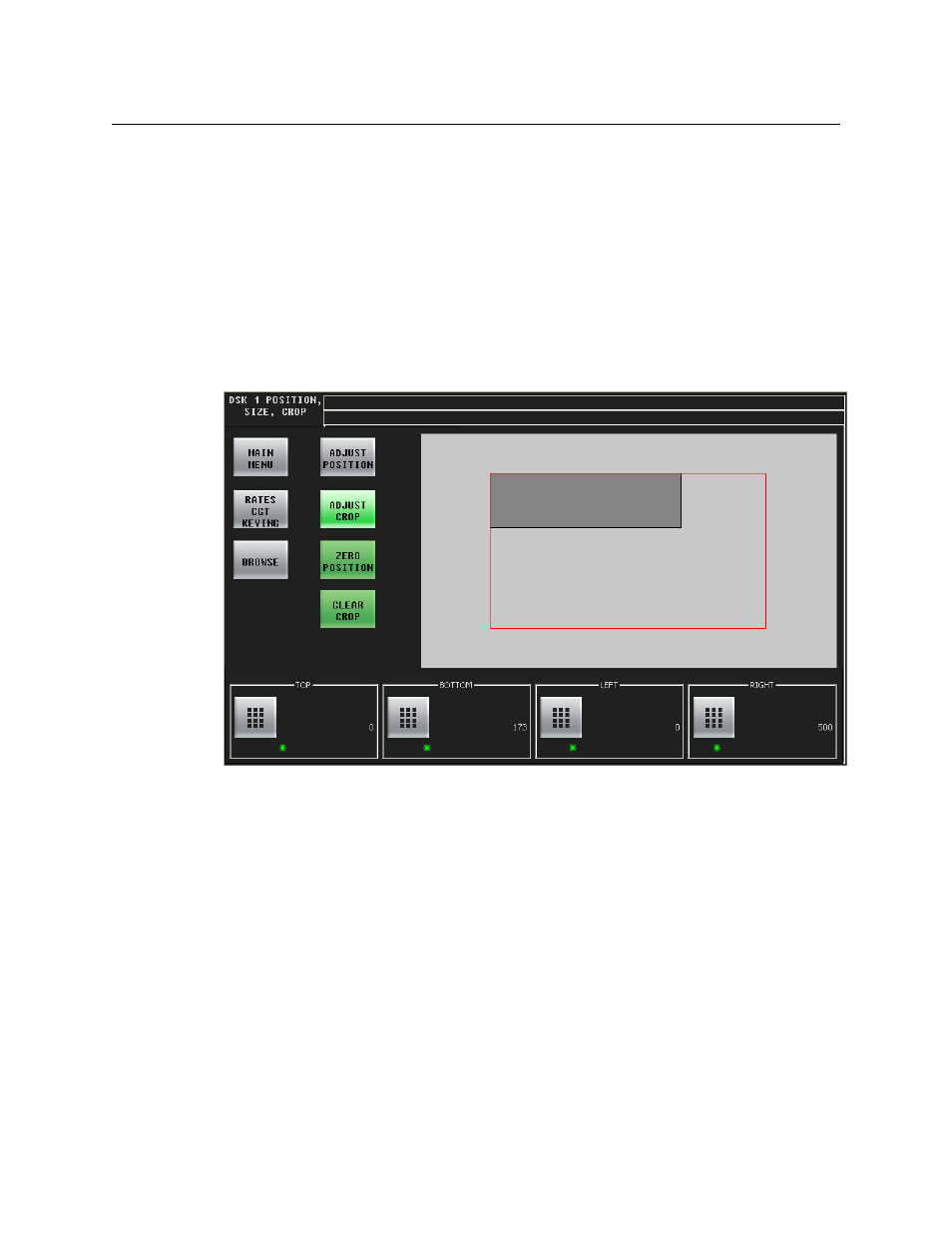

The large red outline represents the screen boundary. The darker gray rectangle represents the
cropped DSK while the medium gray rectangle represents the uncropped DSK:
