Control Panel
Functional Sections of the Panel
Configurable Button Section

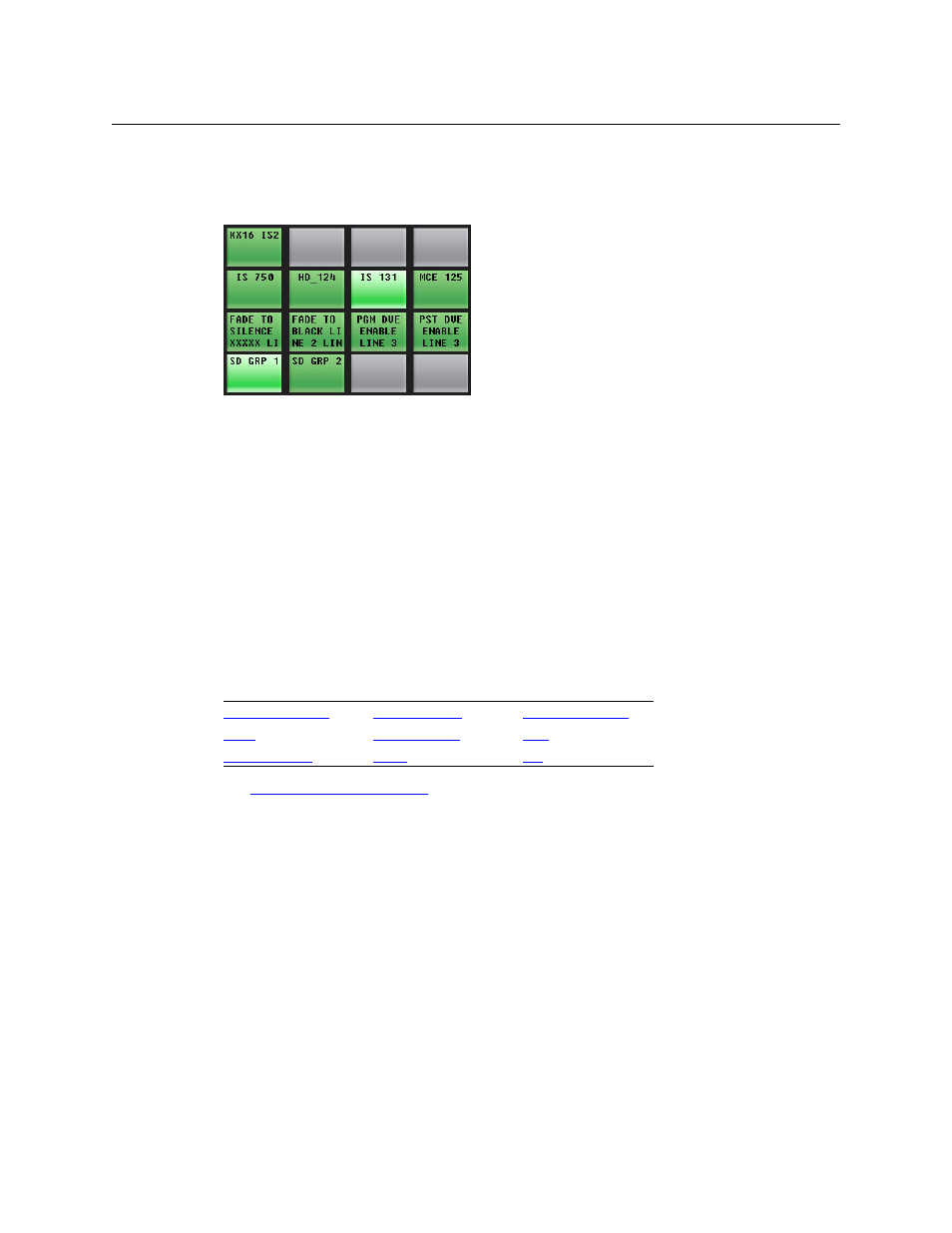

Figure 3-6 shows the configurable button section which is located near the top right of the
display:
Fig. 3-6: Configurable Button Section
The configurable button section includes 16 buttons, each of which may be programmed to
perform various functions such as channel selection, GPI triggers, or machine control. The
buttons can also be status buttons.
Each button has 3 rows of 8 characters. The button functions and button legends are deter-
mined during panel configuration. Each configured button is illuminated. Buttons that are not
configured are dark and have no legend. The illumination can be high or low tally
—
green,
white, amber, or red. Red usually indicates a problem.
There are several dozen different button functions available to the configurer. You, the operator,
will find a variety of these button types in the configurable button section of the panel you are
using.
S
Most other buttons of the panel are configurable too.
This table lists the button function classes for controlling Imagestore 750s:
See
on page 37 for details regarding these button functions.
