135
iMC-Panel-100
Operator’s Guide (for Imagestore 750s)
Shuffle presets are available for the program input audio menu, the preset input audio menu,
the program output audio menu, and for both voice-over menus.
Gain Presets

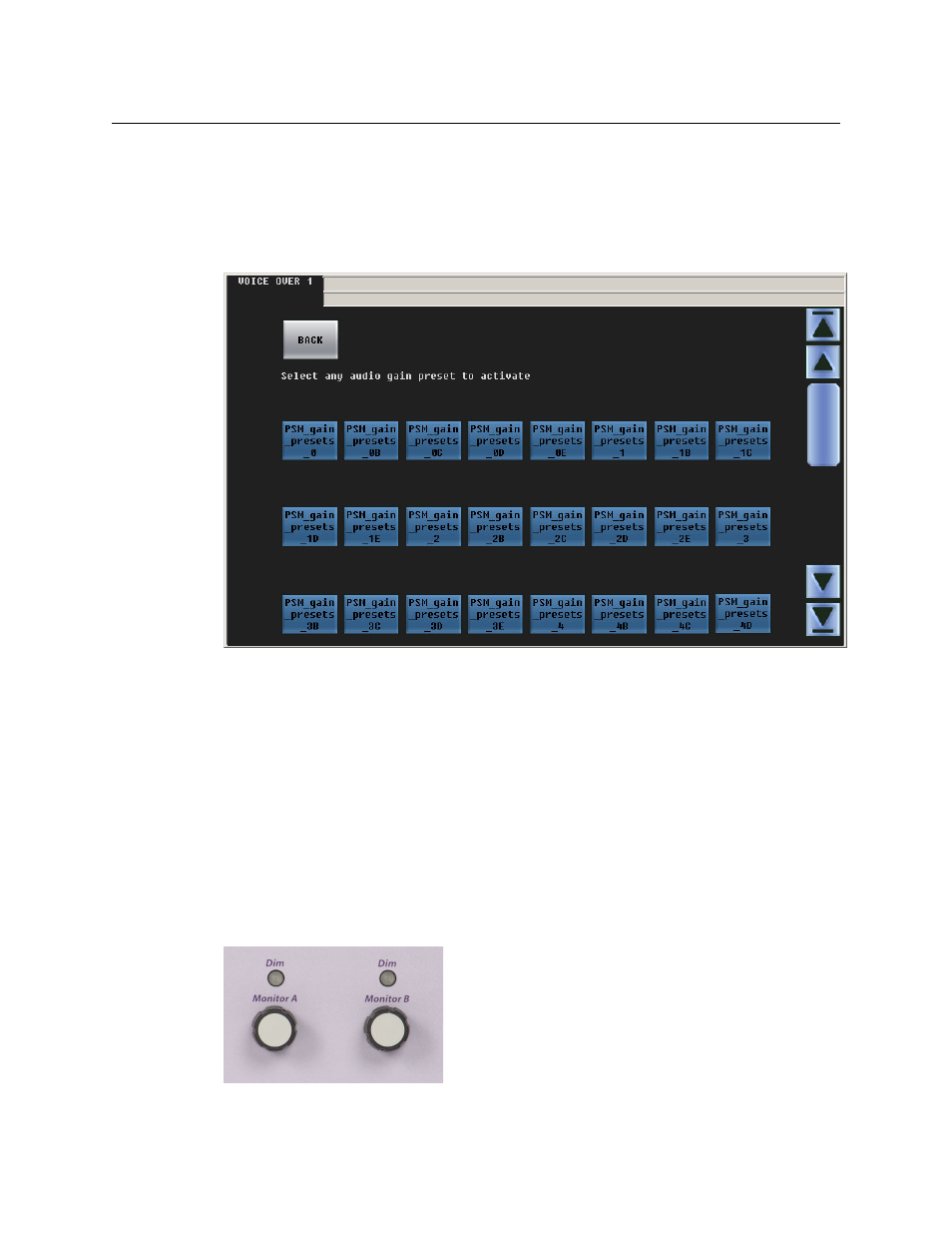

This is the ‘Gain Presets’ sub-menu (of the Voice-Over menu:
A “gain preset” is a predefined set of 16 gain settings, such as you might define using the ‘Gains
and Mutes’ submenu. These presets are defined in the Imagestore 750 Configurator.
To choose a gain preset, click the blue button representing the desired preset. Scroll if necessary.
Gain presets are available for the program input audio menu, the preset input audio menu, the
program output audio menu, and for both voice-over menus.
Working with Audio Monitors
Audio monitoring outputs are available on the CLN (clean-feed) and MON (monitor) outputs of
the Imagestore 750 which provide clean and monitor video outputs respectively.
There are several taps for the CLN and MON video output and there are several taps for the
audio as well.
The monitor levels section of the iMC-Panel-100 has two knobs:
