Control Panel
Functional Sections of the Panel
When both voice-overs are active on the program bus, the knob controls the level of the
program source for both voice-over signals. The effect is additive: a turn of the knob adds the
same amount to each voice-over level.
This knob adjusts the duck level in increments of 0.5 dB, from –100.0 dB to +28.0 dB.
On-Screen “Knobs” and the Slider
There are 8 knob “proxies” under the menu area:
When you select a knob proxy, it turns green, a slider then appears to the right of the menu area,
and the ‘Scroll/Set’ button of the button panel becomes enabled. Use either the slider or the
‘Scroll/Set’ knob to adjust parameter values.

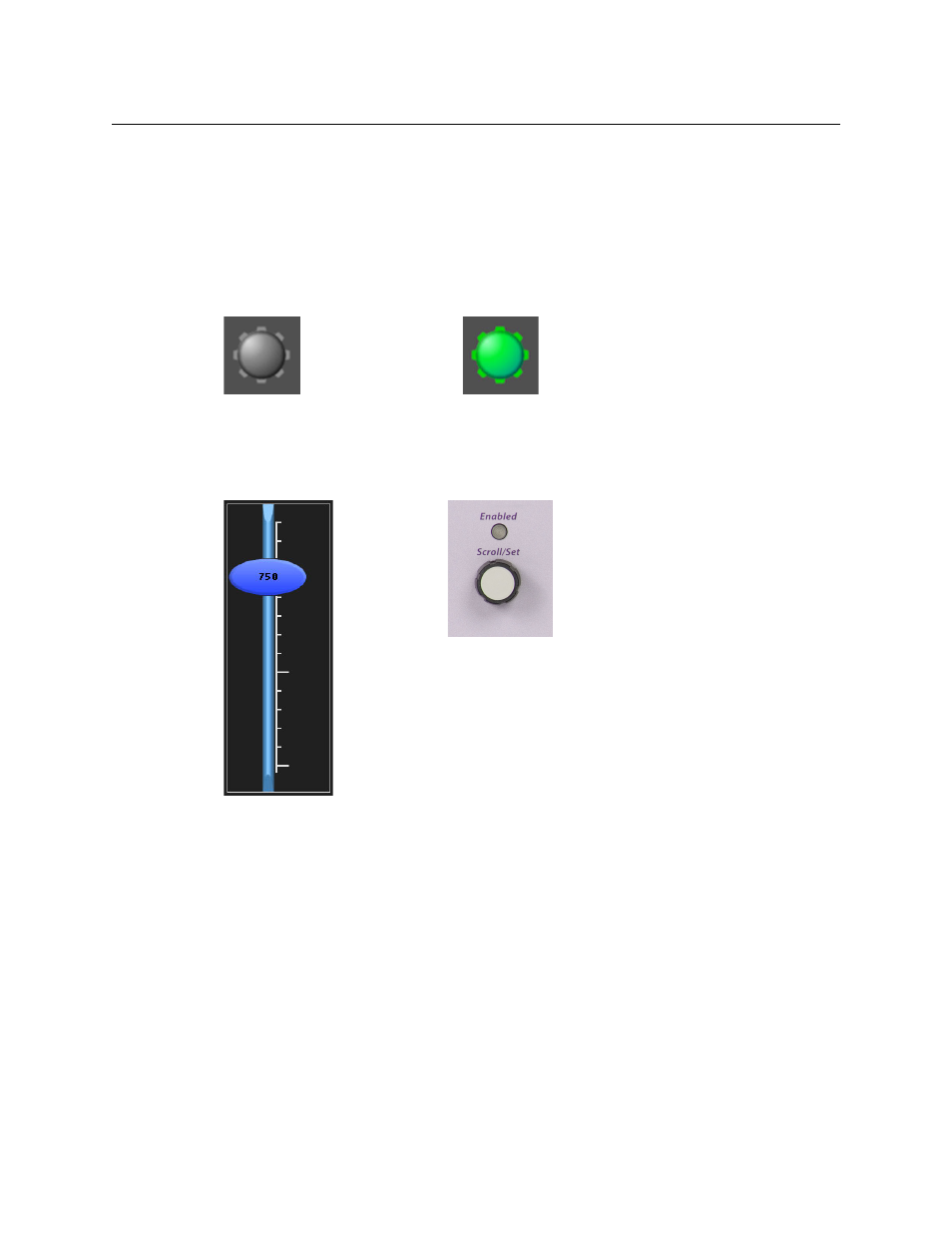

Figure 3-8 shows the slider and the ‘Scroll/Set’ knob:
Fig. 3-8: Slider
The slider scale changes according to the value being adjusted. If you are adjusting an audio
level, the range is –100.0
dB to +28.0 dB. If you are adjusting transparency, the scale shows
values in the range 0 to 512.
The slider is for rapid and coarse adjustment only. Its steps are large and uneven. To operate the
slider, click or touch and drag the oval up or down. The setting value is displayed within the oval.
Unselected Selected
