100
Menus
Sources Menu
For example, the values for a fade-cut (79, 13, 15) for a slow transition (150 frames) are:
Sum = 79 + 13 + 15 = 107
D = 79 / 107
D
′
= 150 × 79 / 107 = 110.747 = 111 frames
M = 13 / 107 M
′
= 150 × 13 / 107 = 18.224 = 18 frames
U = 15 / 107 U
′
= 150 × 15 / 107 = 21.028 = 21 frames
S Up time in frames is adjusted so that total number of frames for the transition is exactly as
specified.
The ‘Adjust Rates’ button switches to the sub-menu that lets you adjust the slow, medium, and
fast rates of the A/B mixer.
The ‘Main Menu’ button returns you to the main menu.
Sources Menu

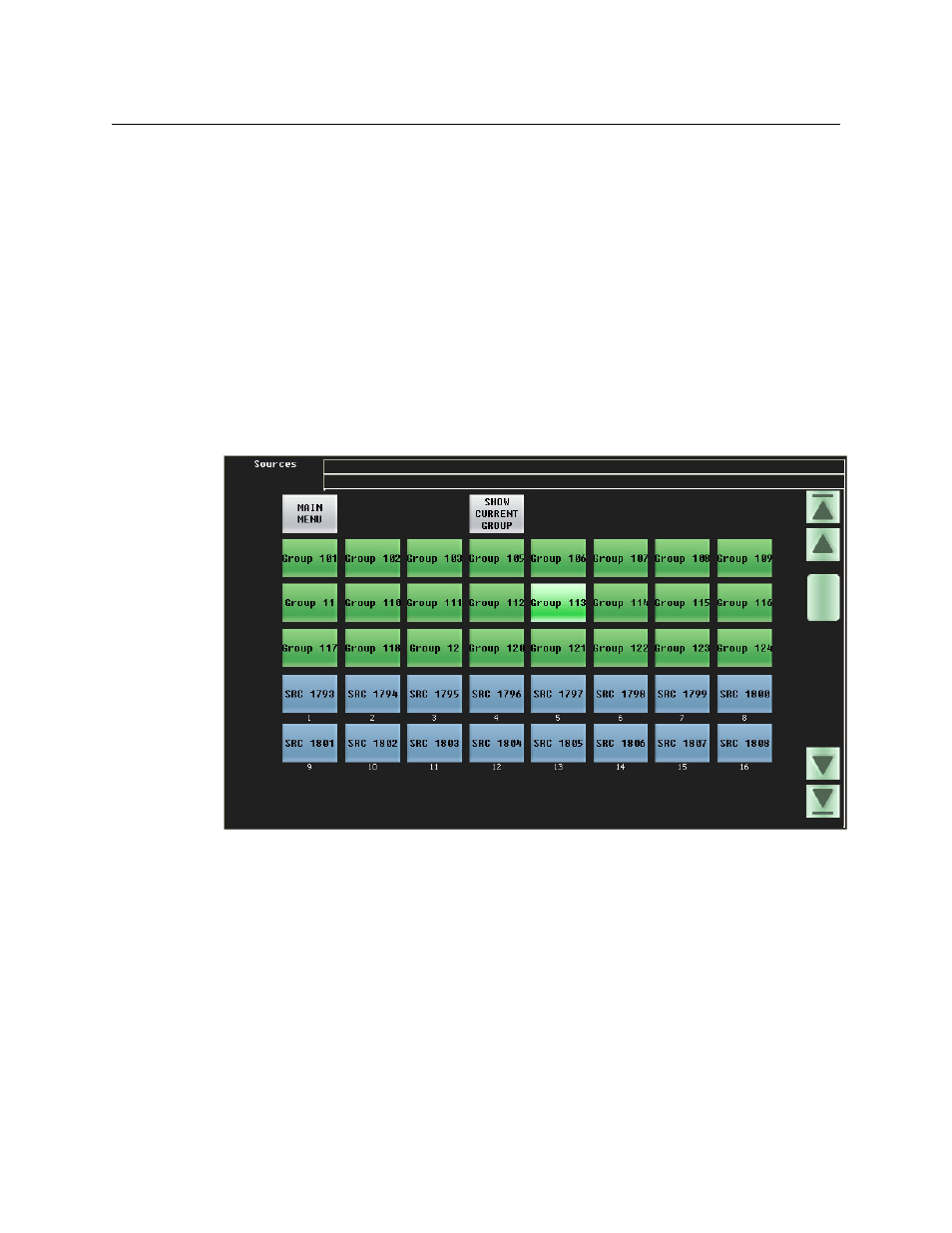

Figure 5-20 shows the panel’s ‘Sources’ menu:
Fig. 5-22: Sources Menu
This menu displays the names of source groups (on the green buttons) and displays the sources
that belong to the selected source group in blue. Up to 24 sources may belong to a group. There
can be any number of groups.
To view a different source group, press the appropriate green button. Scroll if necessary to find
the source group you want.
You can
• Add sources to the selected group.
• Remove sources from the selected group.
• Change a selected source (in the selected group).
The ‘Main Menu’ button returns you to the main menu.
