Operation
General Information
Colors on “Soft” Buttons

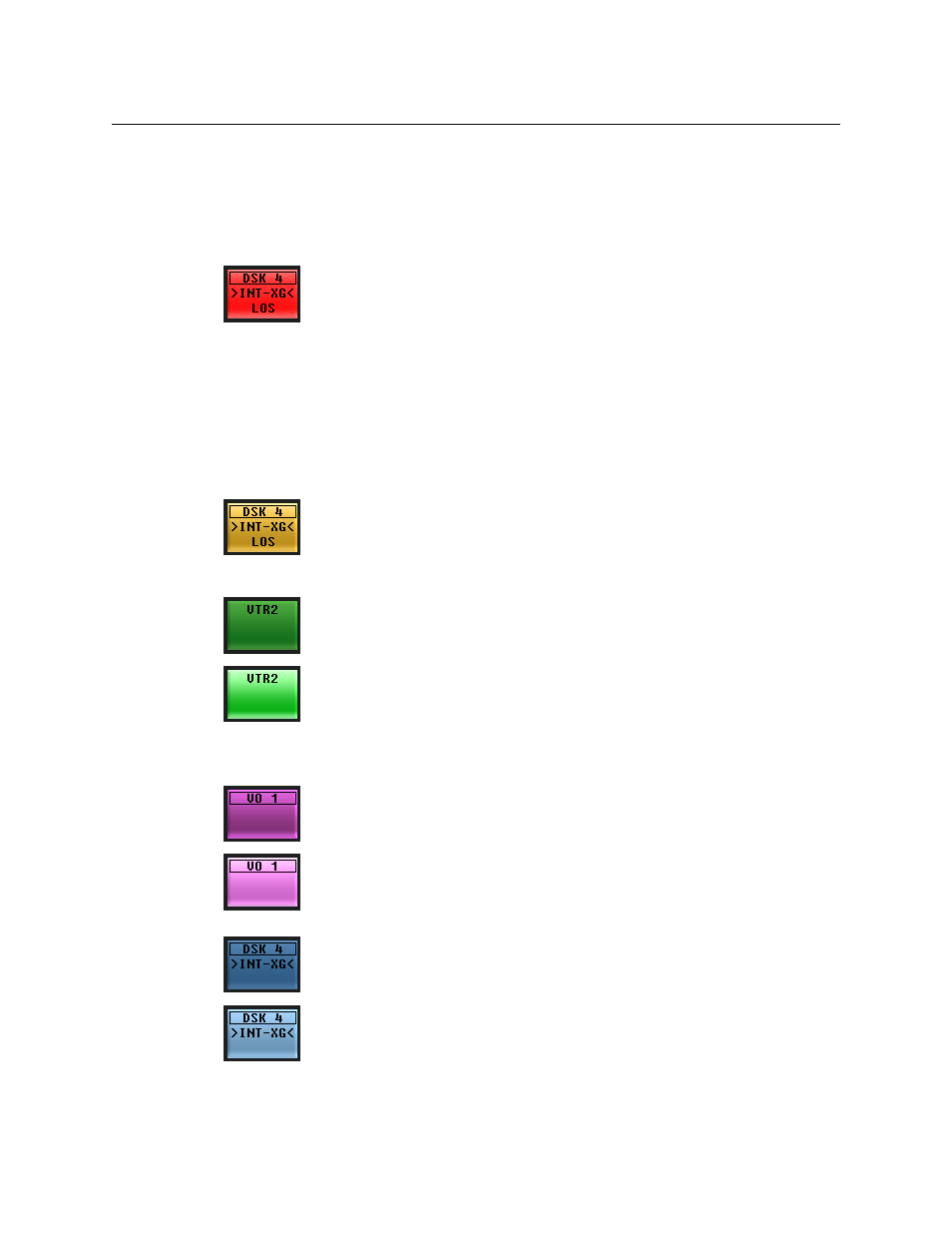

Buttons in the top row, the aux/user row and the preview/user row of the display are color-
coded in the same way as the physical LCD buttons of the button panel. The colors you are
viewing here are approximate only, but reasonably close if you are viewing this document on a
computer screen.
Red buttons have the following warning functions:
On the program and preset buses, red indicates that the selected source is LOS
or non-sync. The error line of the menu displays the current error condition. Note
that the system will put a non-sync source on air if you want it.
On the program and preset buses, red can also indicate audio LOS.
When you perform a channel change, the new channel button flashes red for a
moment. That indicates that the system has acknowledged the change request.
A (selected) channel that is absent, malfunctioning, or in emergency bypass
mode shows red.
Panel lock, if present, is high-tally red when the panel is locked.
Amber buttons sometimes represent mild warnings, such as LOS on a video
effect that is not on program output.
High-tally amber also indicates a follower channel that is “ganged” to the main
channel (green). If there are multiple followers, each has an amber button.
Low-tally buttons (dark green) are unselected main sources, channels, or func-
tions. Green generally indicates that there is no error.
High tally buttons (bright green) are selected main sources, channels, or
functions.
On the program and preset buses, high tally buttons are selected main sources.
Green indicates that there is no error.
High-tally green represents the active channel, the main channel in a gang, or an
active function on a configurable button.
Voice-over buttons are violet, and high-tally when selected.
Video effect buttons (DVEs, DSKs, or XG keyer layers) are blue, and high-tally
when selected. (Buttons for video effects that are LOS are amber.)
