General Information
Thumbnail Color
The DSK and XG keyer layer thumbnail images in the main menu give you an indication of the
state of the DSK or XG keyer layer.
The thumbnail frame is blue when the DSK or XG keyer layer is on the program bus (i.e., program
output). Otherwise, the thumbnail frame is grey.
The thumbnail frame is empty when the DSK has been cleared (i.e., has no clip or key assigned).
Similarly, the thumbnail frame for an XG keyer layer is empty when the layer has been cleared.
Otherwise, the thumbnail frame shows an image representing the clip (or key):
About Error Messages
Error messages that appear on the touchscreen’s error line are “stacked” in order of their effect
on the on-air signal
— with higher priority messages taking precedence over lower priority
messages. For example:
• If you experience a video non-sync error, and simultaneously lose video reference to the
Imagestore 750, the system displays the video reference loss error message.

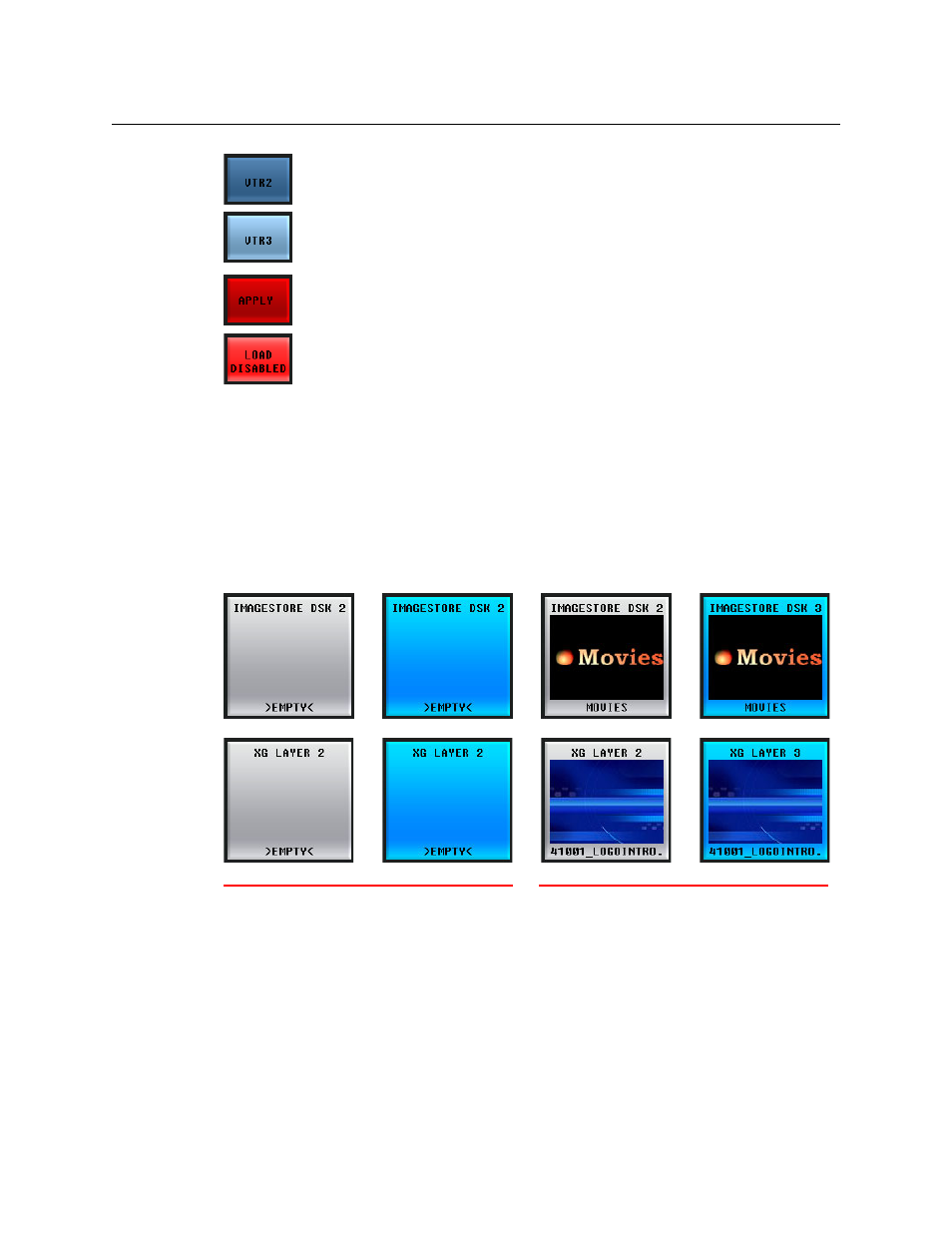

Dark blue buttons are unselected list entries.
Light blue buttons are selected list entries.
‘Apply’ buttons are intense red. These buttons are found in the audio channel
shuffle menus. A few other buttons are brighter red because you should exercise
caution when using them. (‘Load Disabled’ is an example.)
DSKs
XG Keyer
Layers
Not selected on PGM Selected on PGM Not selected on PGM Selected on PGM
Clip or Key Unassigned Clip or Key Assigned
