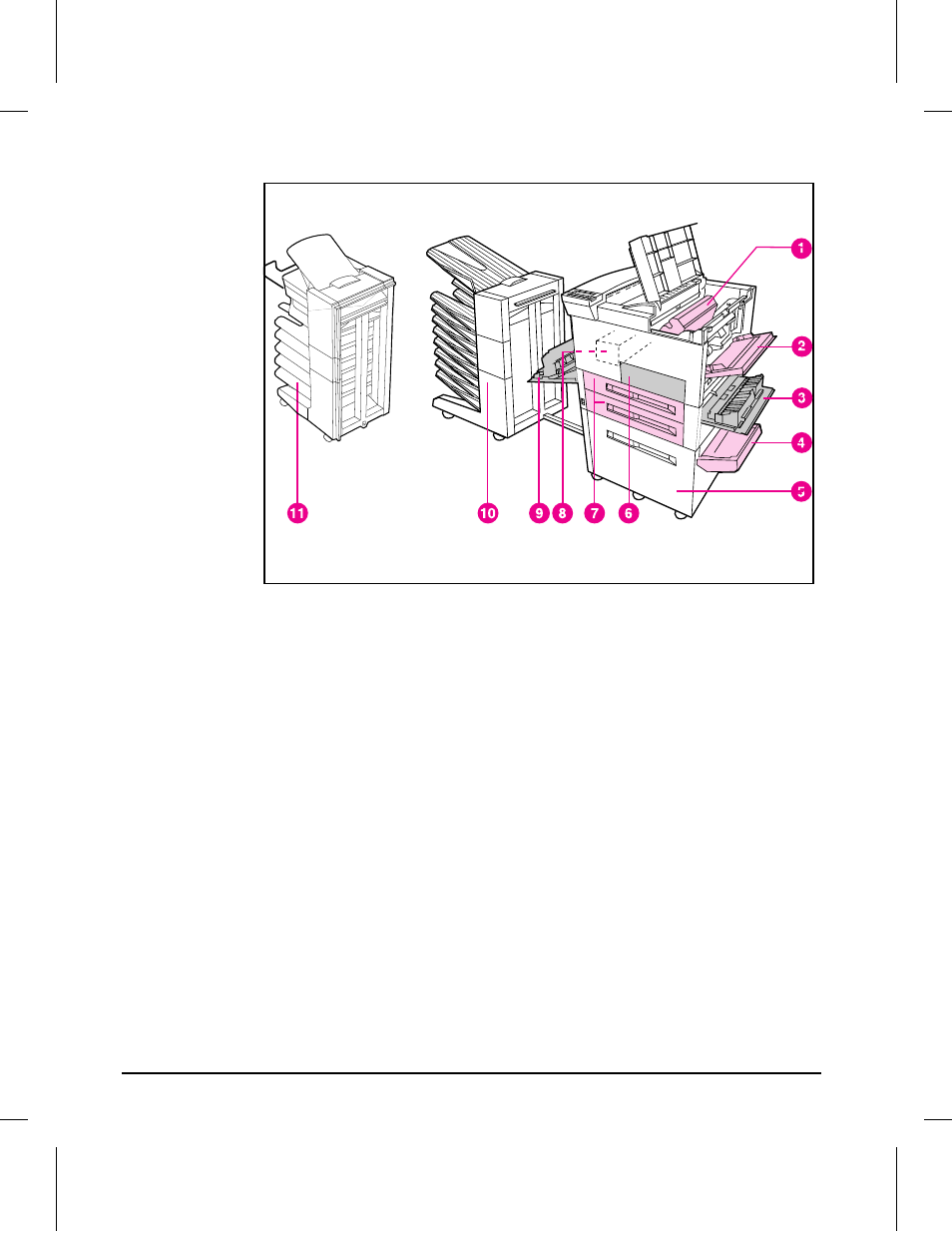

Figure 7-27 shows the possible locations for most of the paper jams.
Paper Path Jam Locations
1.
Toner cartridge area
6.
Front Door
2.
Tray 1 pick-up roller and feed area
7.
Tray 2 and Tray 3
3.
Right door
8.
Fusing Assembly Area
4.
Tray 4 transfer door
9.
Left door
5.
Tray 4 (2000-Sheet Input Unit)
10.
Multi-Bin Mailbox
11.
Mailbox with Stapler
