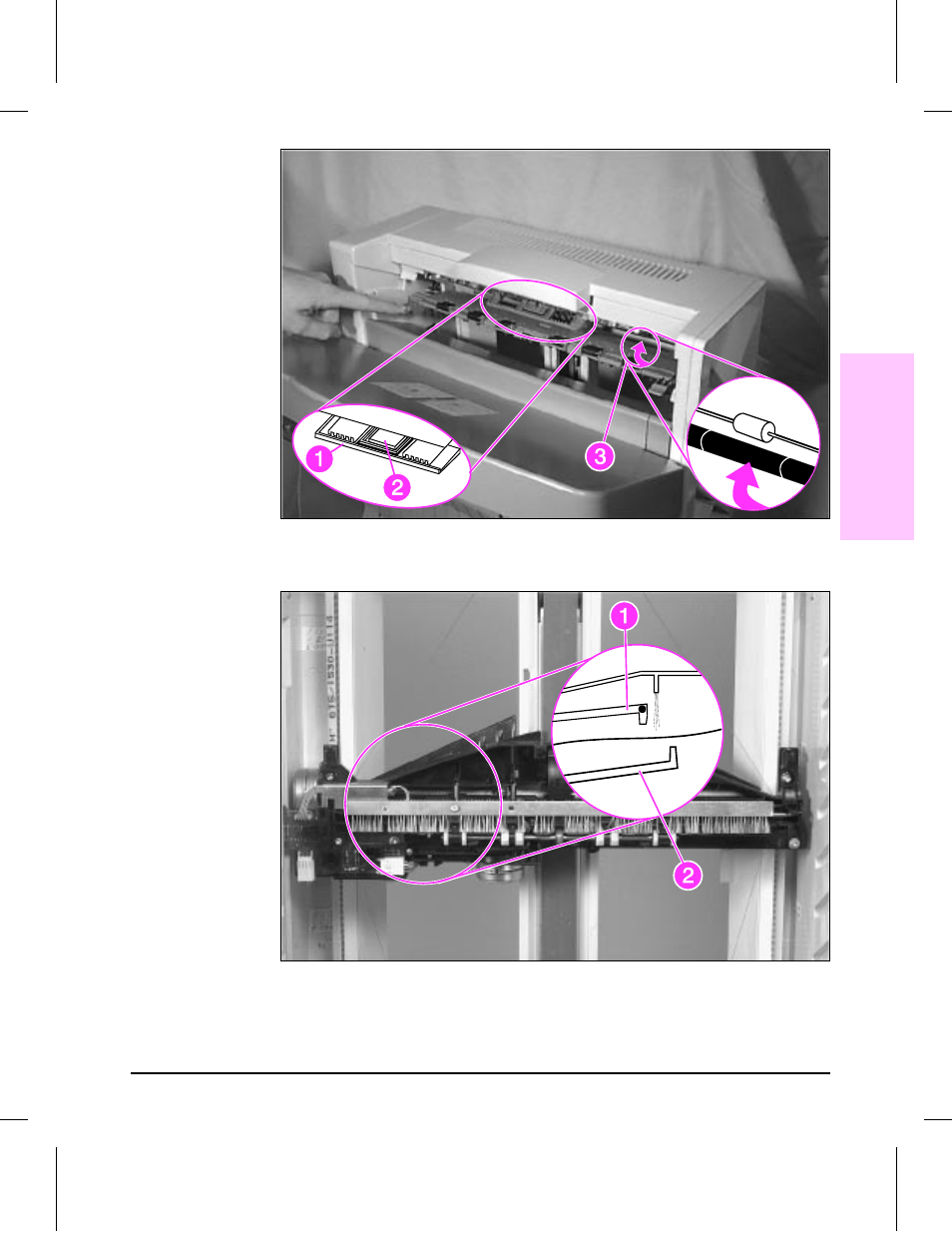

Flipper Assembly and Paper Sensor Flags (Multi-Bin Mailbox)
1. PS Face Up 2. PS Face Up Full 3. PS Entry Sensor
Paper Sensor Exit
1. PSExit1 - Detects paper entering head assembly.
2. PSExit2 - Detects paper exiting head assembly.
