Tray 1 Assembly
1 Remove the front cover (see Figure 6-5) and the back cover (see Figure 6-4).
2 Open the top cover and remove the toner cartridge.
3 Open the right lower door.
4 Remove (4) screws, CH102 (Figure 6-52, callout 1).
5 Carefully pull the assembly out from the printer and unplug the connector
inside the right end (Figure 6-52, callout 2).
6 Continue sliding the assembly out of the printer chassis.
To Reinstall:
Make sure that the alignment pins and plastic gears are properly aligned.

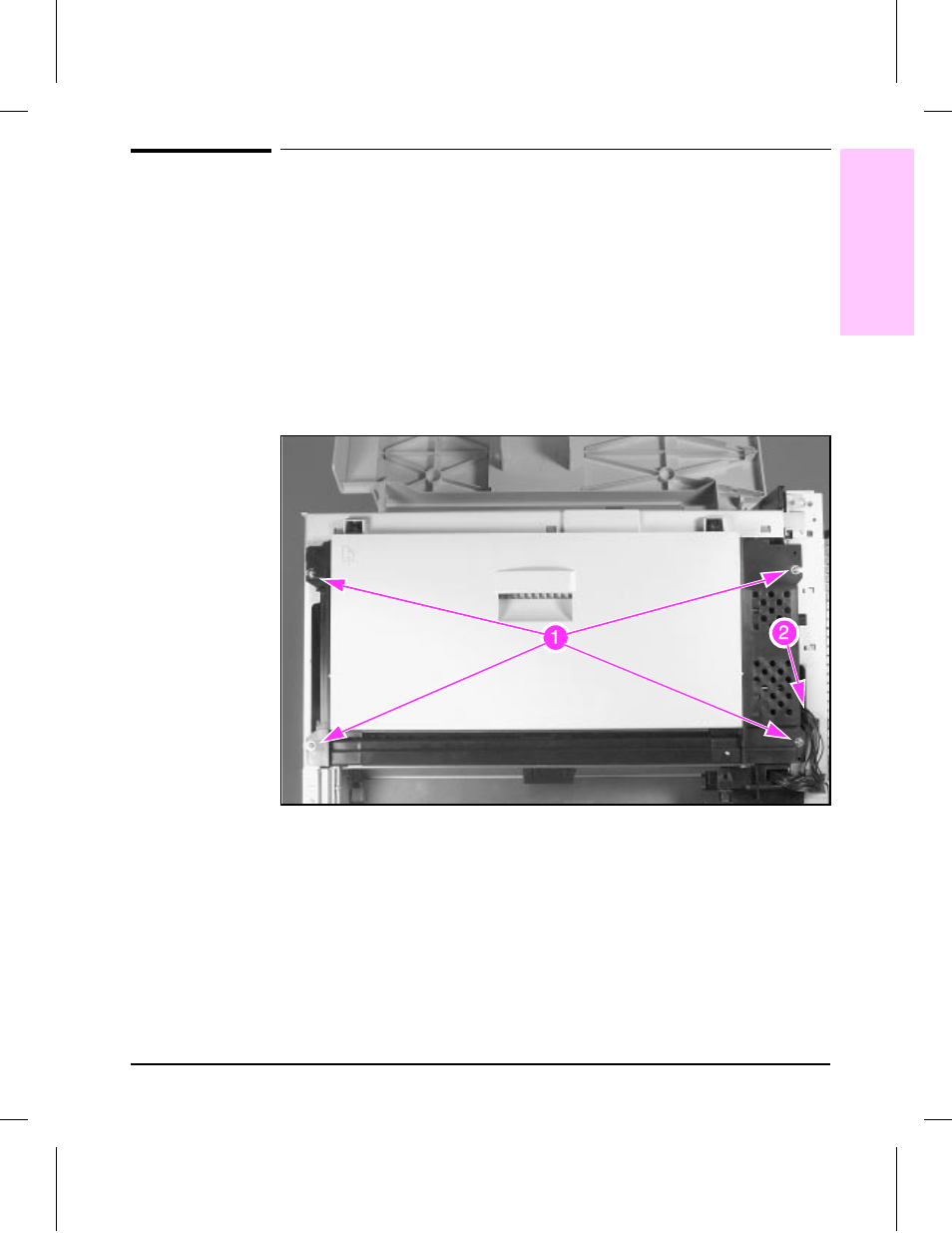

Tray 1 Assembly
Figure 6-52
6
Removal and Replacement
Removal and Replacement 6-65
