2000-Sheet Input Unit (Tray 4) Components
The components of the 2000-Sheet Input Unit paper path are illustrated in
Figure 5-16. Figure 5-17 and Table 5-2 illustrate and describe all of its
sensors, switches, clutches, and motors.
Paper
Stack
Lifting
Plate Separation
Roller
Lower Transfer
Assembly
Rollers
Transfer
Assembly
Upper Transfer
Assembly
Rollers
To Printer
Feed Roller
Pick-Up Roller

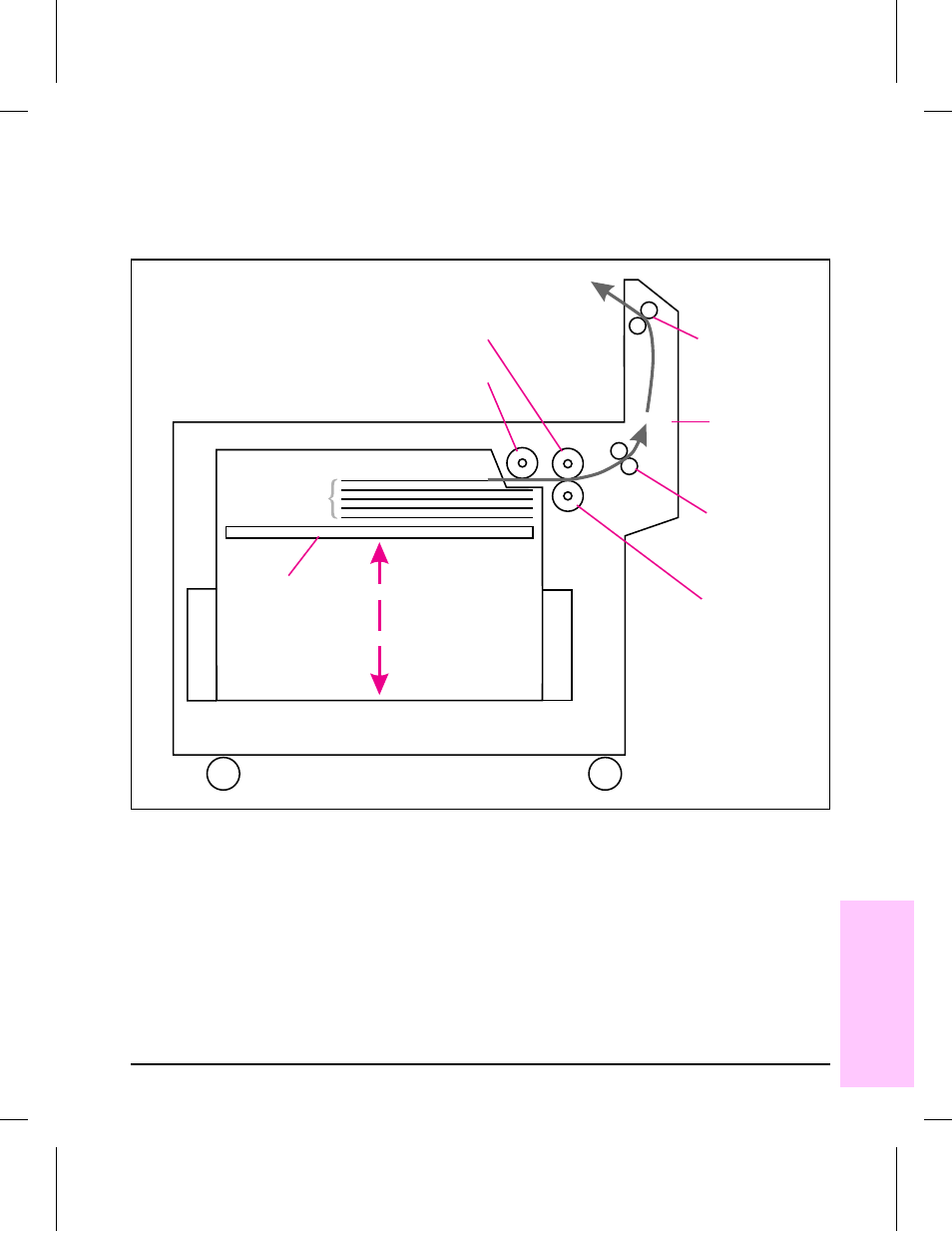

Figure 5-16 2000-Sheet Input Unit Paper Path
