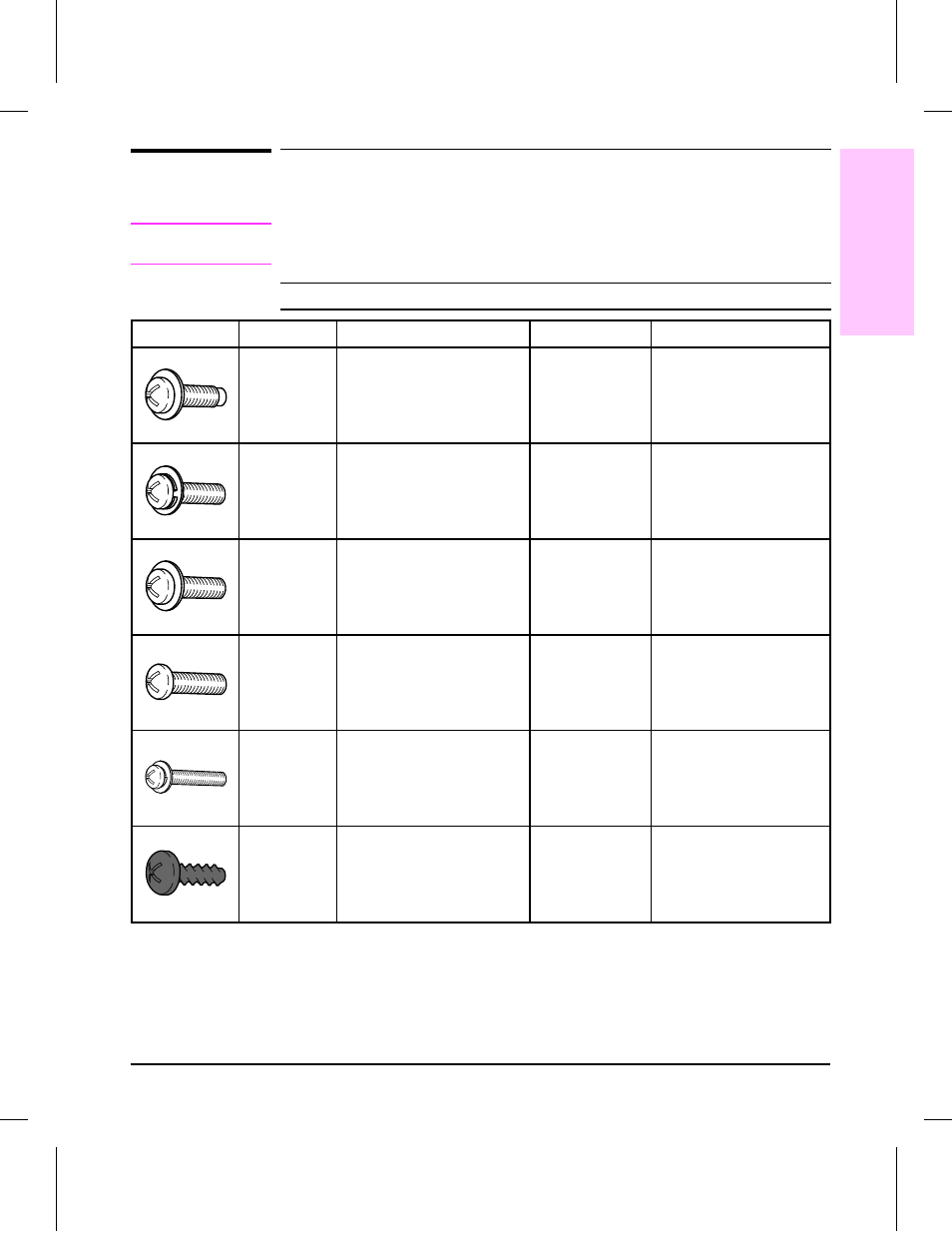

Hardware Table
N o t e The screws listed in Table 6-1 are also listed in Chapter 8 with their
respective assemblies.
Example Reference Description Part Number Usage
CH101 Screw, TP, M3X6 (fixed shoulder) XA9-0267-000CN General, Metal to metal
CH102 Screw, TP, M3X6 (floating flat and
lock washer) XA9-0547-000CN General, Plastic over metal
CH103 Screw, M4X8 XB6-7400-807CN Main Motor
CH104 Screw, CT, M3X3 XB5-6303-007CN Fan 1, Fan 2
CH105 Screw, w/washer, M3X20 XA9-0817-000CN Laser/Scanner
CH106 Screw, tapping, truss head, M3X8 XB4-7401-809CN HVPS, DC Controller
Table 6-1 Hardware Table
6
Removal and Replacement
Removal and Replacement 6-15
