Paper Jam Sensor
(PS32)
Registration
Sensor
(PS31)
Registration
Clutch (CL32)
Lifter
Clutch (CL31)
Main Motor
(M1)
Paper Quantity
Switches
(SW601, SW602)
Paper Size Switches (SW701 - SW704)
Power Supply
Controller
PCA
Transfer Assembly Closed (PS35)
Paper Surface (PS34)
Paper Tray Empty (PS33)
Feed Roller
Pick-Up Roller
Separation Roller
Lifter Sensing
Switch
(SW31)

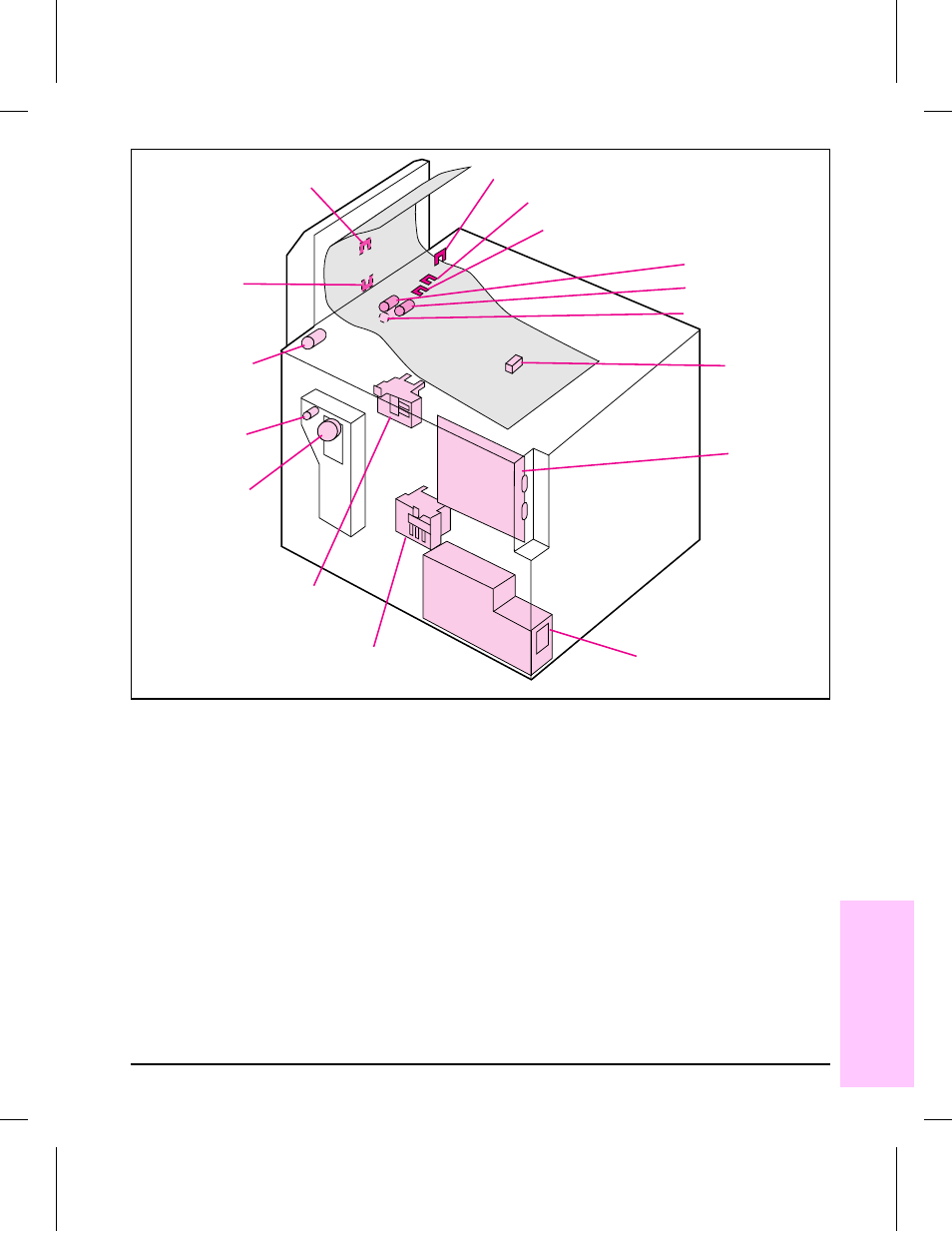

Figure 5-17 2000-Sheet Input Unit Sensors, Switches, Clutches, and Motors
5
Functional Overview
Functional Overview 5-25
