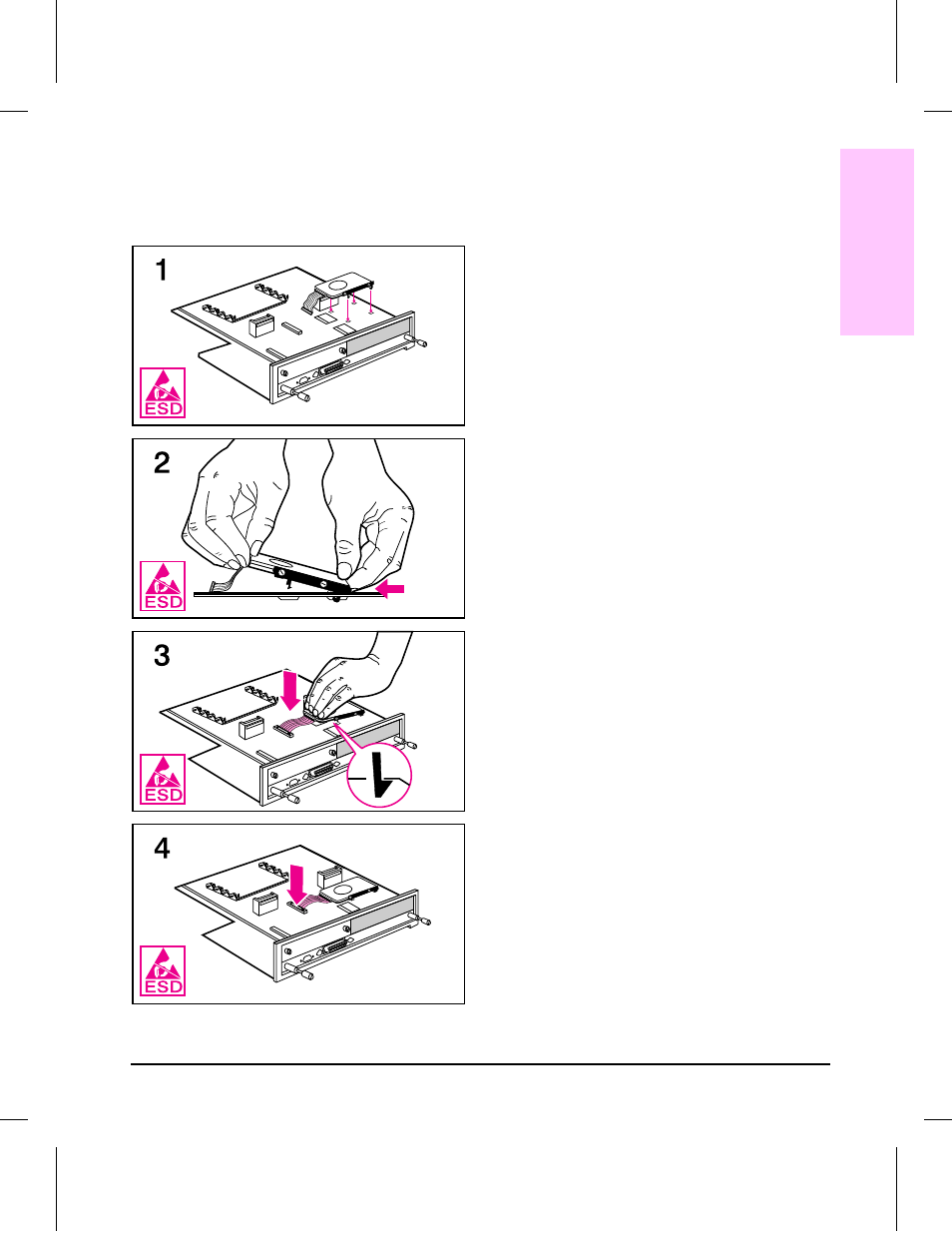

To Reinstall Disk Drive
1 Locate the four disk drive mounting holes
on the Formatter Assembly. Remove the
drive from the packaging and align with
to the mounting holes.
2 Tilt the drive up and insert latch A
(nearest the board edge) in the hole, then
slide the drive toward the center of the
formatter board.
3 Push down firmly on the cover of the disk
drive nearest the cable until the latch (B)
clicks into position.
4 Carefully align the cable to connector J3
on the Formatter board and press firmly
into place.
5 Reinstall the Formatter Assembly,
reconnect the cables, and print a Disk
Directory Page from the Control Panel
Test Menu to verify proper installation.
(A)
(B)
6
Removal and Replacement
Removal and Replacement 6-9
