Laser/Scanner Assembly
C a u t i o n
The Laser Scanner diode is extremely sensitive to ESD.
1
Remove the toner cartridge.
2
Remove the top cover (see Figure 6-8).
3
Unplug three cable connectors (Figure 6-26, callout 1).
4
Re-route the cable running across the top of the assembly so that it is out of the way.
C a u t i o n
Do not touch the scanner mirror located under the forward edge of the assembly.
Use approved ESD handling procedures when touching the Beam Detect PCA.
5
Remove (4) screws, CH105 (Figure 6-26, callout 2).
To Reinstall:
Make sure that the locator pins are properly seated.

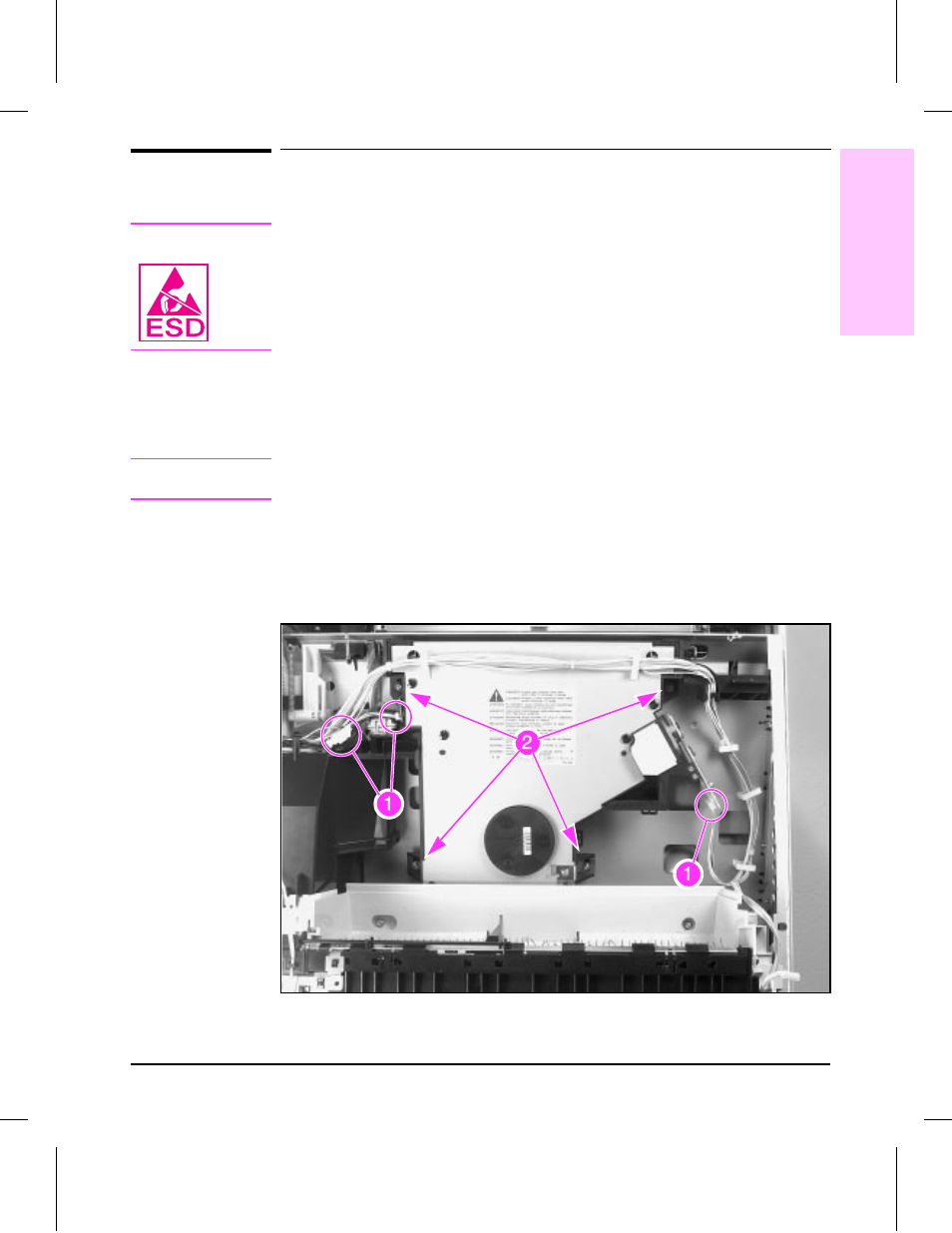

Laser/Scanner Assembly
Figure 6-26
6
Removal and
Replacement
Removal and Replacement 6-41
