Fan 4, Exhuast (Delivery Unit)

1

Remove the top cover (see Figure 6-8).

2

Unplug the fan cable (Figure 6-21, callout 1).

3

Remove (1) screw, CH101 (Figure 6-21, callout 2), and remove the metal fan
shield.

4

Release (4) retainer clips (Figure 6-21, callout 3), and slide the fan forward
out of the Delivery Unit Assembly.

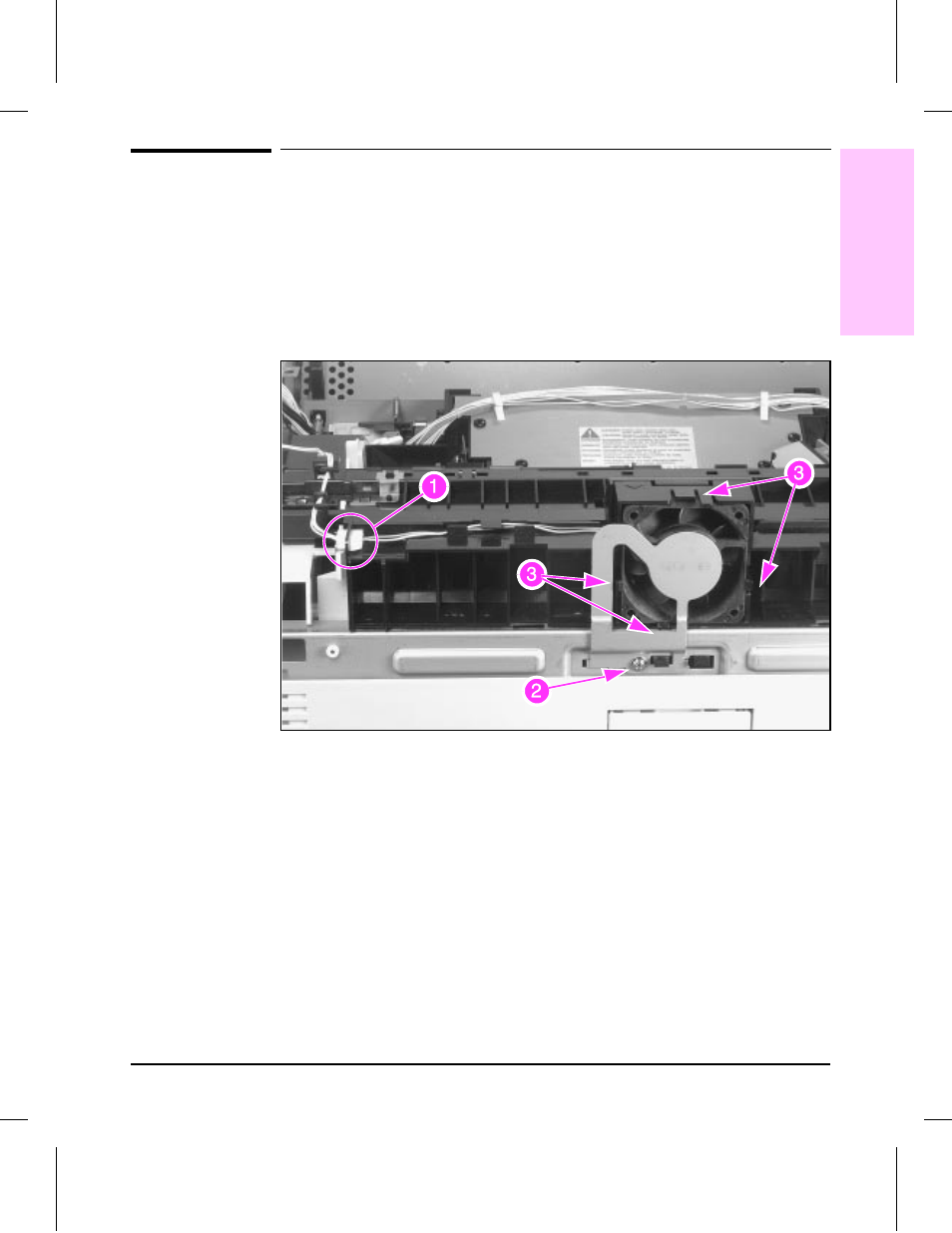

Fan 4, Delivery Unit

Figure 6-21

6

Removal and

Replacement

Removal and Replacement 6-35
