Power Supply
1 Remove the back cover (see Figure 6-53) and the left cover (see Figure 6-54).
2 Unplug the connector from the Power Supply (Figure 6-61, callout 1).
3 Remove (2) screws, CH108 (Figure 6-61, callout 2).
4 Lift the Power Supply up to clear the locating tabs underneath, and slide it
to the left to free it from the chassis.
To Reinstall:
Make sure that the locating tabs are properly aligned.

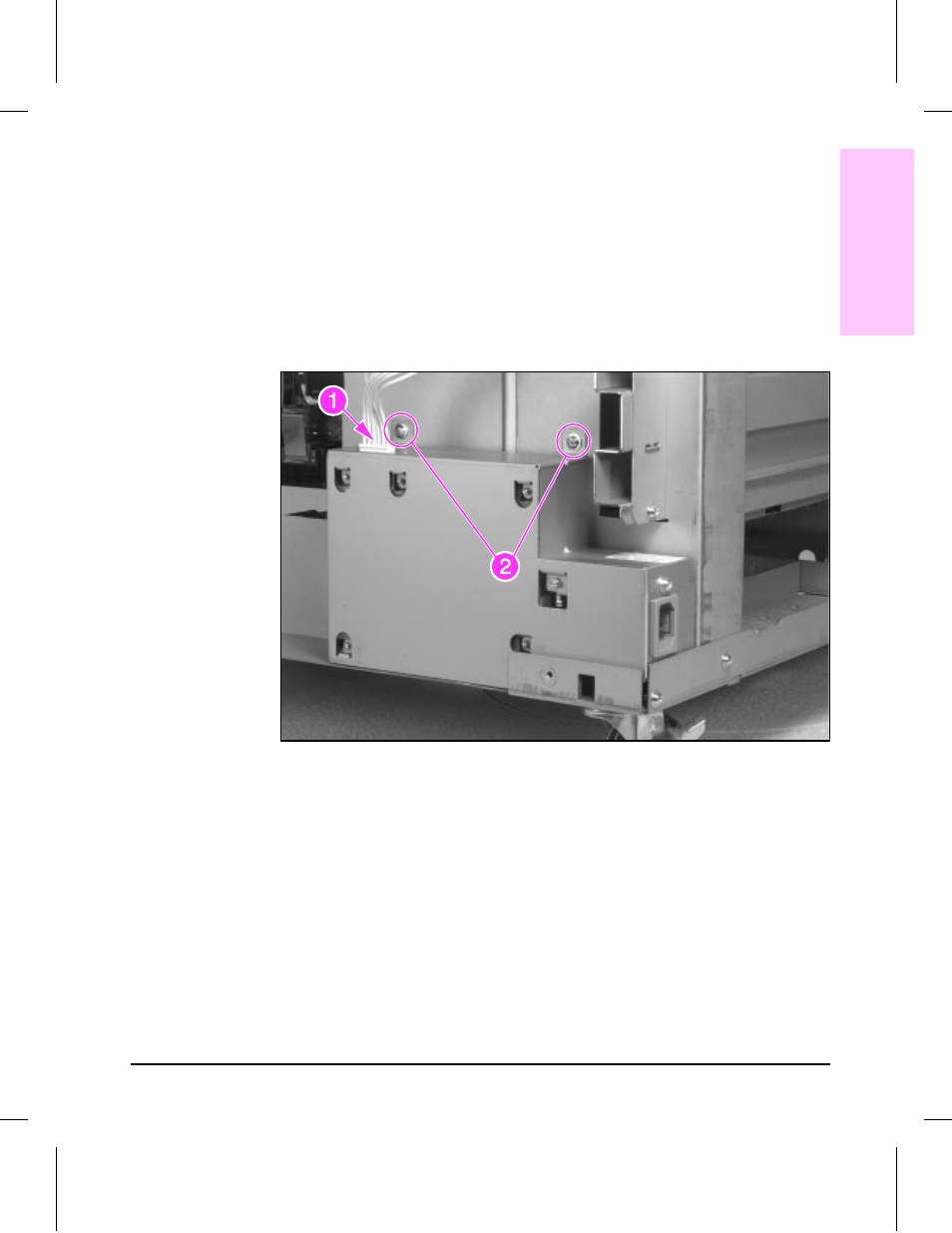

Tray 4, Power Supply
Figure 6-61
6
Removal and Replacement
Removal and Replacement 6-75
