30 LD5200 User Guide 800.518.1519
3 LCD Touch Screen Interface
3.1 Main Menu
When the LD5200 powers up,
diagnostics are performed. The boot
ROM and flash program code are
verified. Once the diagnostics are
complete, the LCD displays the Main
Menu.
Any time a screen within the LCD
interface is left idle for more than five
minutes, it will return to this default
display.
The Main Menu features basic system
information including the device
name, current date, time, firmware
version running on the system, and current alarm notification.
Four buttons run down the right side of the LCD and function as follows:
3.2 Silence Button
The Silence button silences the audible alarm. Press the button once to silence the alarm.
Button Function
Additional Options Accessible
Through Sub-Menus
Silence Silence the audible
alarm
No additional options
Alarms List current alarms Display alarm history, acknowledge
alarms.
Status View status information
for master and all slave
units
View network statistics, EIA-485
data, and the leakage trend log for
master and all slave units
Setup Access and configure a
wide variety of system
options
Leak settings, virtual zones, slave
zones, 4-20mA output, preventative
maintenance, system settings, EIA-
485 / Modbus / N2 configuration,
BACnet configuration, and clear
alarm and trend log history
Table 3.2 LCD Main Menu Buttons

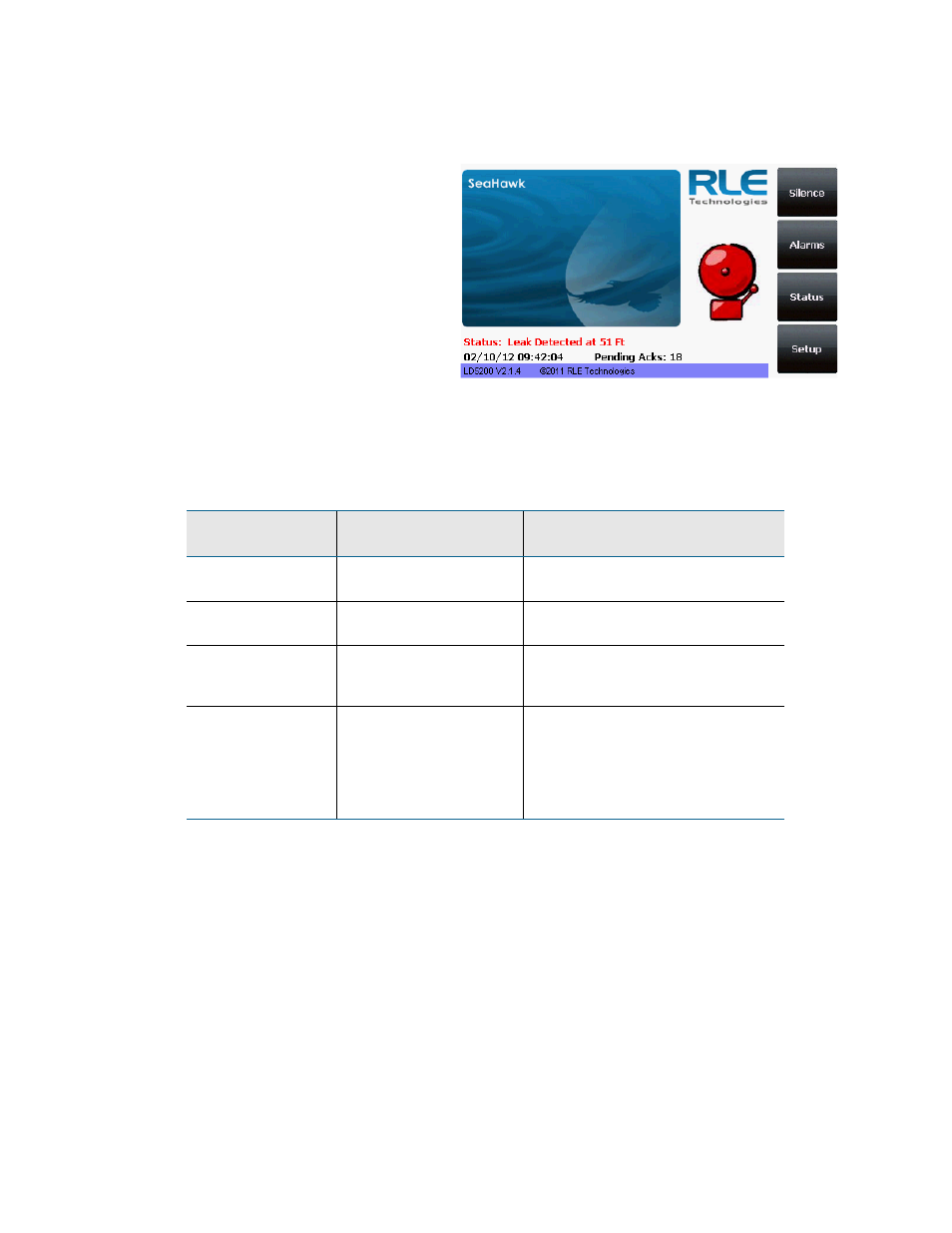

LCD - Main Menu
