Page 78

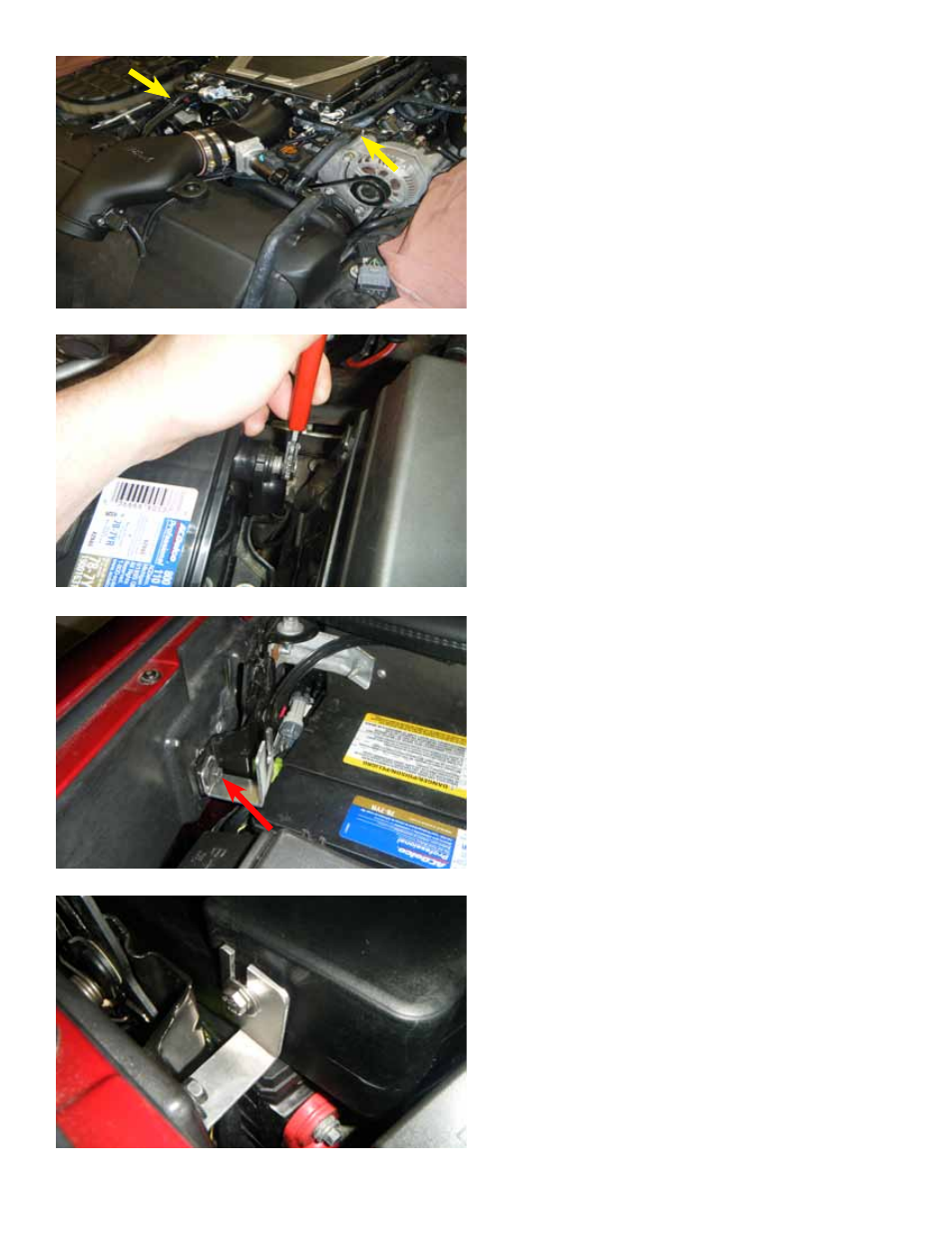

274. Connect the front intercooler hose to both
sides of the supercharger.
NOTE: This picture is for illustration purposes
only.
275. Connect the positive battery cable,
then the negative battery cable using a battery
terminal ratchet.
276. Using a 10 mm socket, install the supplied
bracket (PN: XX04468-0010) on to the hood
latch for the coolant reservoir using the existing
fastener.
277. Loosely install the supplied
M6x1x16mm bolt (PN: 47313) and M6 washer
(PN: 91116A150) into the new coolant bottle
(PN: XX04468-0015) and slide into the bracket
installed in the previous step. Tighten the bolt to
secure the coolant reservoir to the bracket.
