Page 53

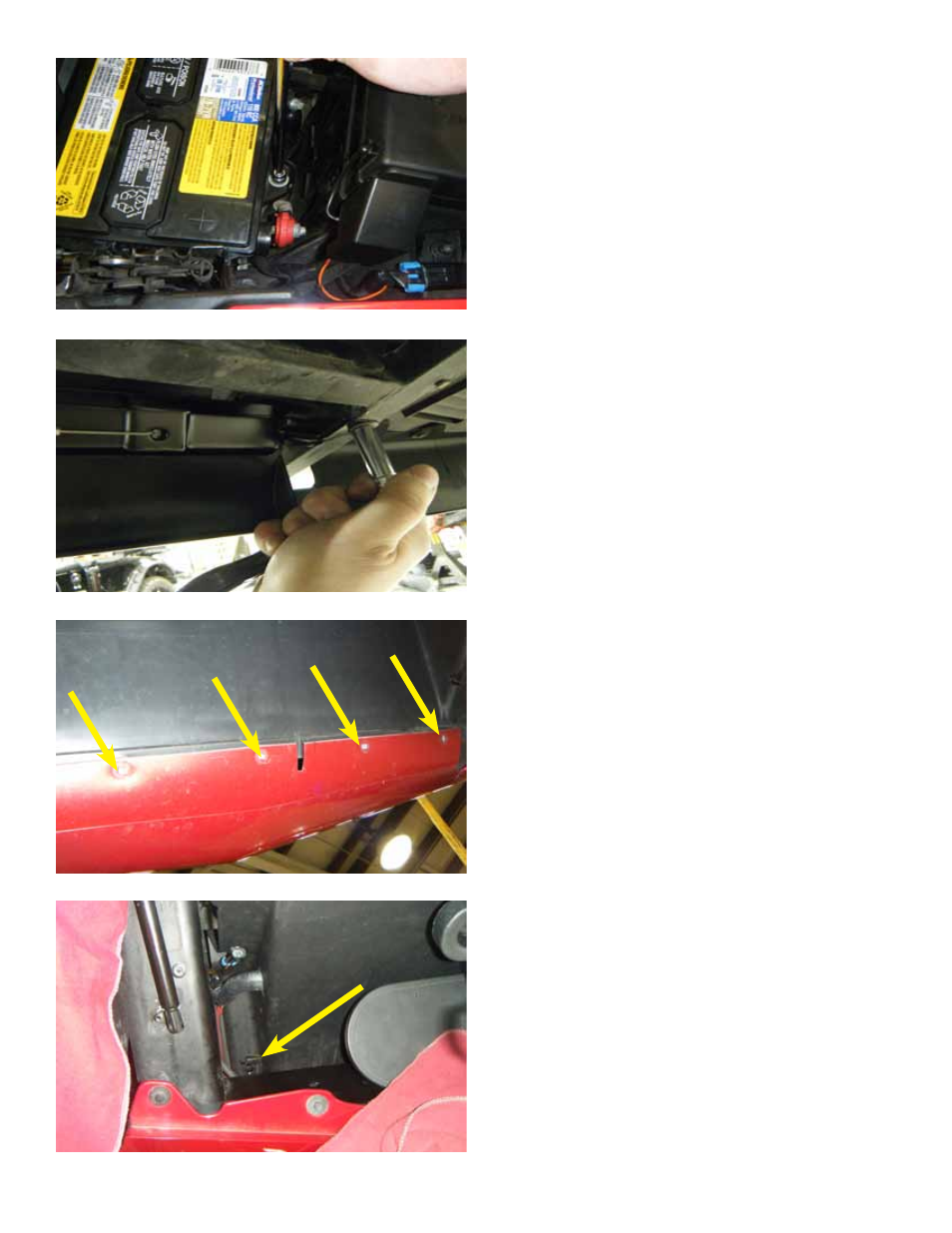

174. Re-install the battery. Tighten the hold
down with a 13mm socket.
CAUTION: Do not reconnect the battery cables
until installation is complete.
175. OPTIONAL STEP: Using a 10mm socket,
remove the two (2) bolts holding the middle air
deflectors in place. This provides additional room
for the installation to take place.
176. Using a 7mm socket, remove the seven
(7) screws securing the radiator shroud.
177. Disconnect the outside temperature
sensor electrical connector located on the
passenger side of the radiator shroud near the
hood light electrical connector.
