Page 63

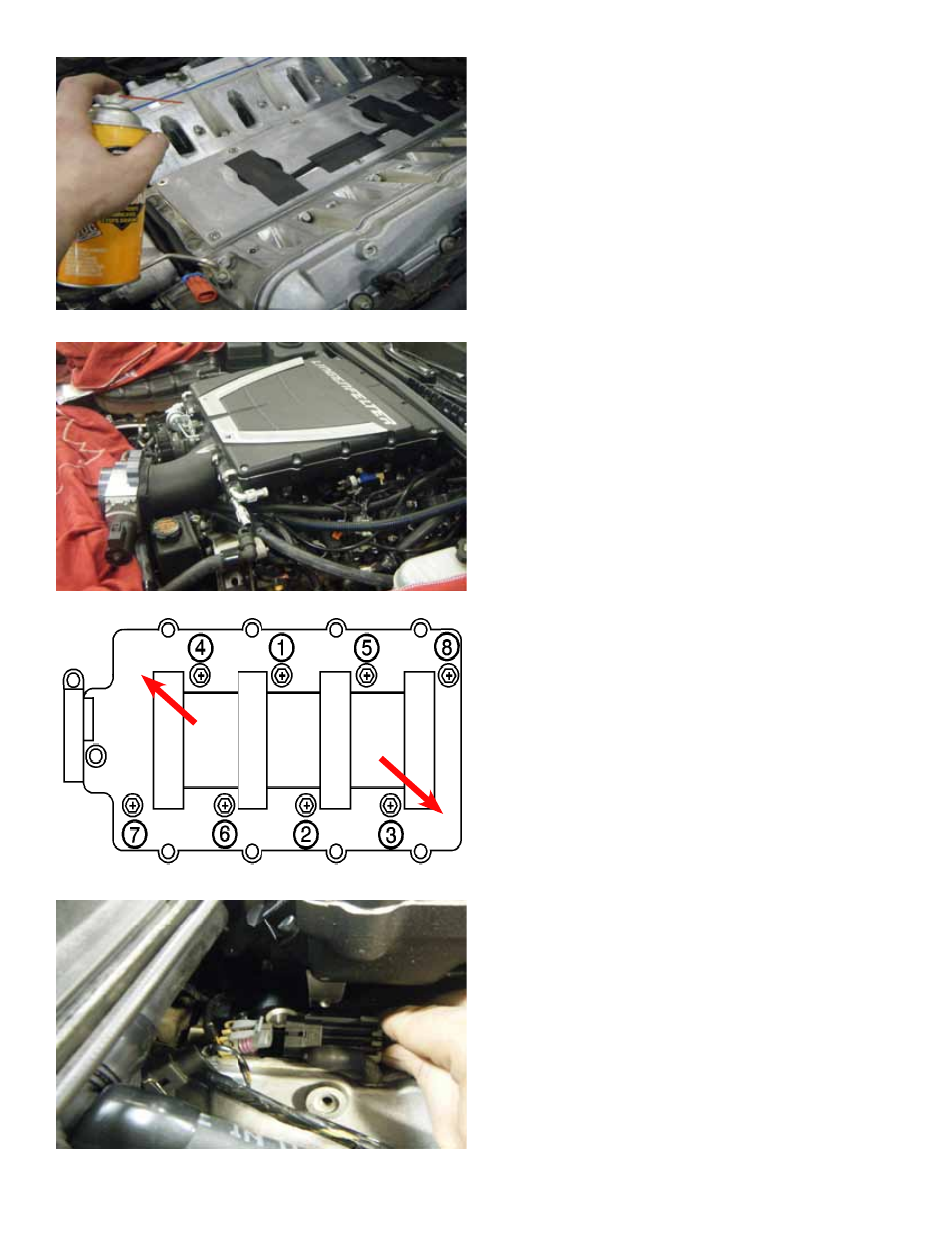

214. Remove the tape covering the intake ports
and spray a coating of silicone spray on the head
surface.
215. With the help of an assistant, set the
supercharger into place.
216. Using a 10mm swivel socket, ratchet,
and extension, install the 8 (eight) 10mm intake
manifold mounting bolts in the sequence shown.
Torque these bolts to 4 ft-lbs (48 in-lbs) the first
pass then to 7.5 ft-lbs (90 in-lbs) the second
pass. Be sure to apply Loctite® Tight onto the
bolts.
NOTE: The red arrows show the locations of
the button head bolts that where plugged in
steps 144 and 145. There are no supercharger
mounting bolts for these two (2) locations.
217. Connect the LPE-supplied MAP/IAT
adaptor harness (PN: XX04468-0012) into the
factory wiring harness.
