Page 45
144. Install two (2) of the Edelbrock-supplied
button head cap screws (found in bag #5)
into the passenger side front intake bolt hole
and driver side rear intake bolt hole. Use an
anaerobic thread sealant, such as Loctite® Tight
Multipurpose Anaerobic Gel, and a 4mm allen
socket to tighten. Torque the screws to 89 in-
lbs. See the following step for clarification of the
locations of the intake bolt holes.

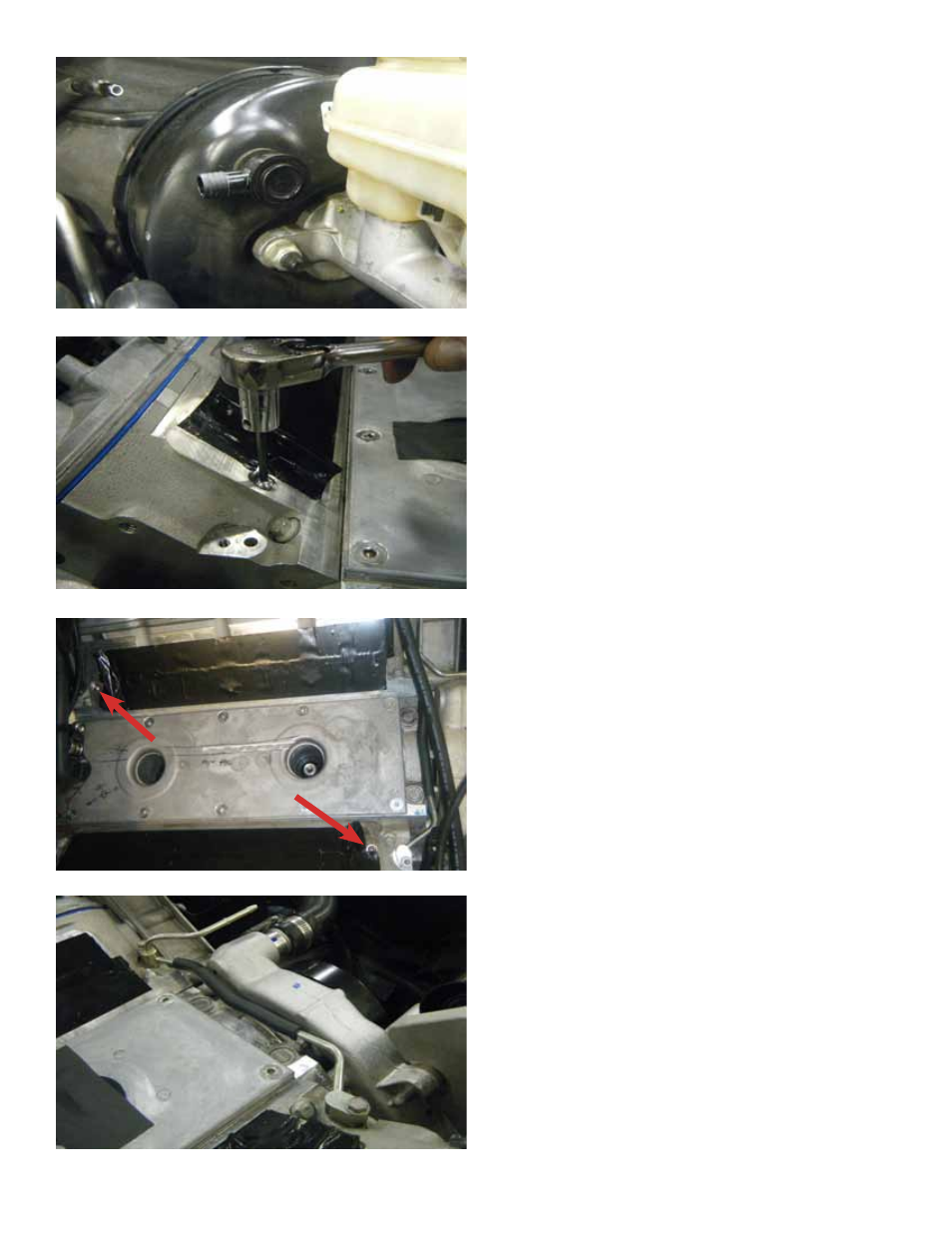

143. Insert the check valve into the brake
booster.
145. This illustration shows the locations of
the two intake bolt holes that were plugged with
button head cap screws in the previous step.
146. For 1997-2000 model year vehicles,
Install the new vent tube (PN: 12602548) in the
front holes using the stock bolts. Using a 10mm
socket, tighten to 106 in-lbs.
NOTE: For 2001-2004 model year vehicles,
leave the OEM vent tube in place.
