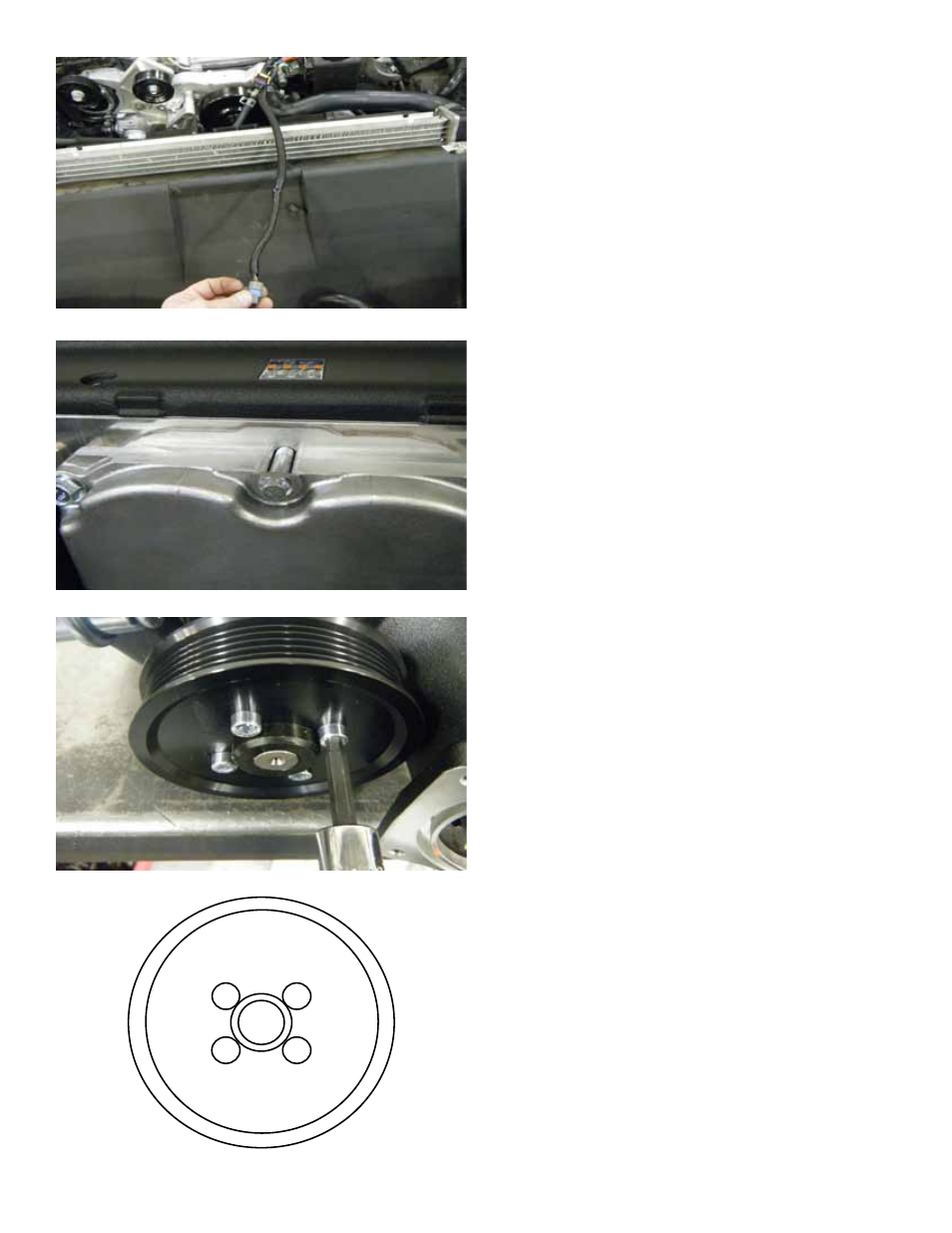

206. Using higher quality electrical tape, close
the loom back around the IAT wiring.
207. Using a quality sander or grinding disc,
remove part of the center bolt on the back of the
supercharger in order to make it flush with the
machined surface.
208. Using blue Loctite® and a 5mm Allen
socket, install the supercharger pulley using four
(4) socket head cap screws.The pattern and
torque specifications are shown in the following
step. Use a strap wrench to hold the pulley still
while tightening the screws.
209. This illustration shows the torque pattern
for the supercharger pulley bolts. The bolts
should be torqued to 8 ft-lbs.
1
2 3
4
