Page 37

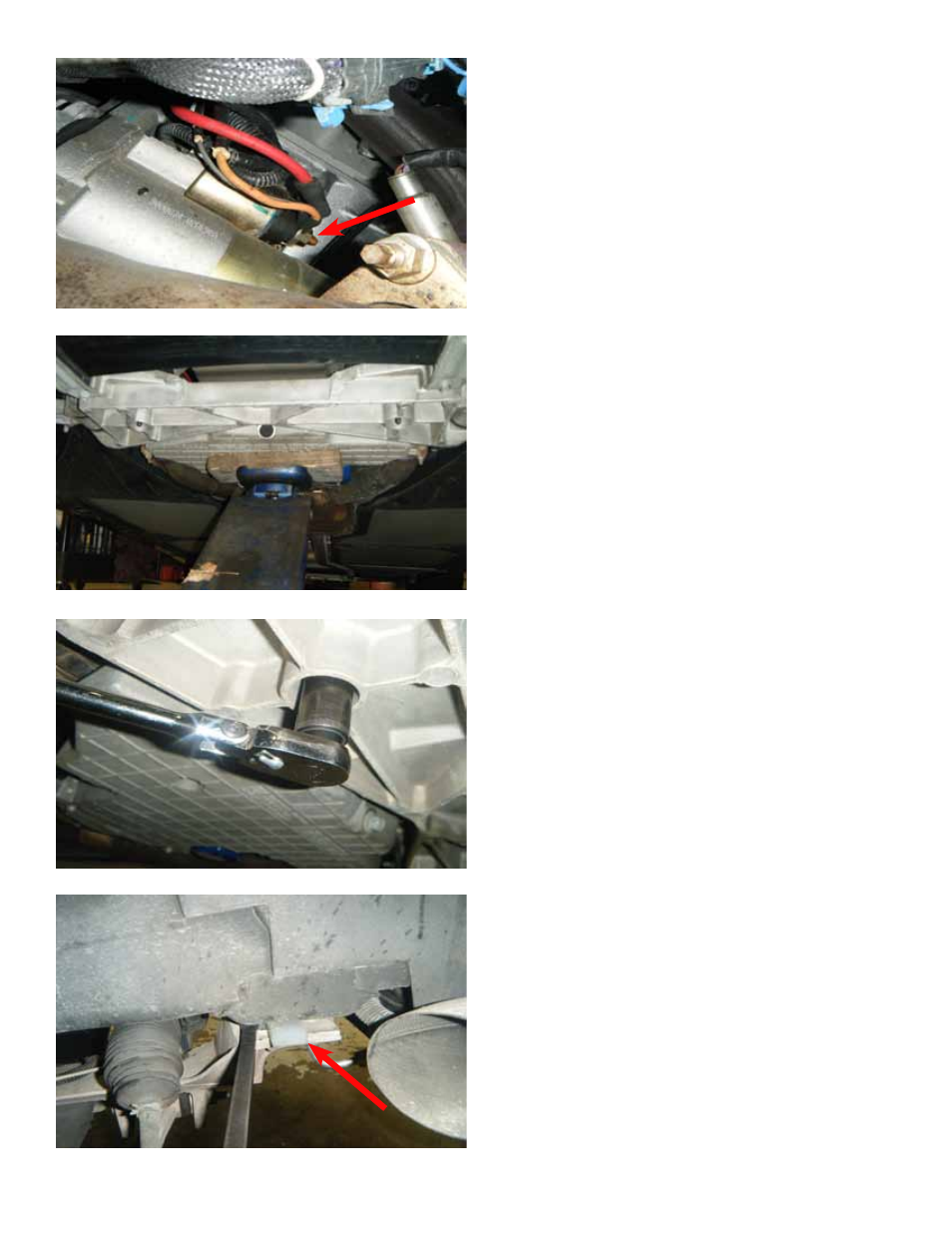

111. Use an 8mm socket to re-connect the
trigger wire and a 13mm socket to reconnect the
battery wire.
112. Lower the engine back down and remove
the jack.
113. Using an 18mm socket, tighten the two (2)
motor mount nuts. Torque the bolts to 50 ft-lbs.
114. Remove the temporary spacers on at a
time and replace them with the supplied sub
frame spacers.
