Lingenfelter L250280197 Lingenfelter C5 Corvette E-Force Supercharger Install Kit v2.9 - Manual (Page 12)

Page 11

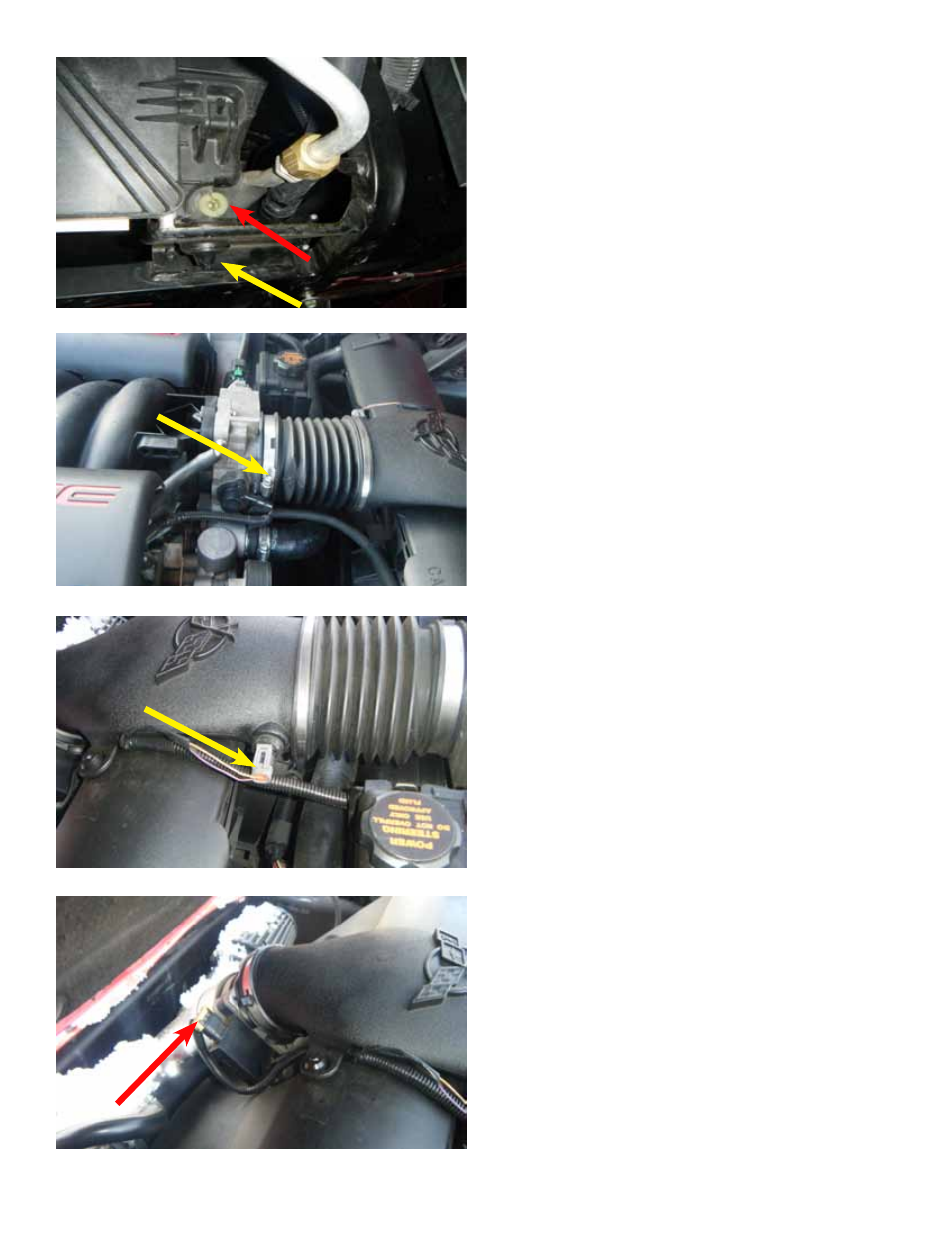

9. The adjacent picture shows the coolant
drain valve (red arrow) and the coolant drain
nozzle (yellow arrow). These are located directly
below and to the passenger side of the radiator.
10. Using a flathead screwdriver, loosen the
hose clamp shown to remove the air intake from
the throttle body.
11. Disconnect the air temperature sensor.
NOTE: This step only applies to 1997-2000
model year vehicles.
12. Disconnect the Mass Air Flow (MAF)
sensor electrical connector.
