Page 16

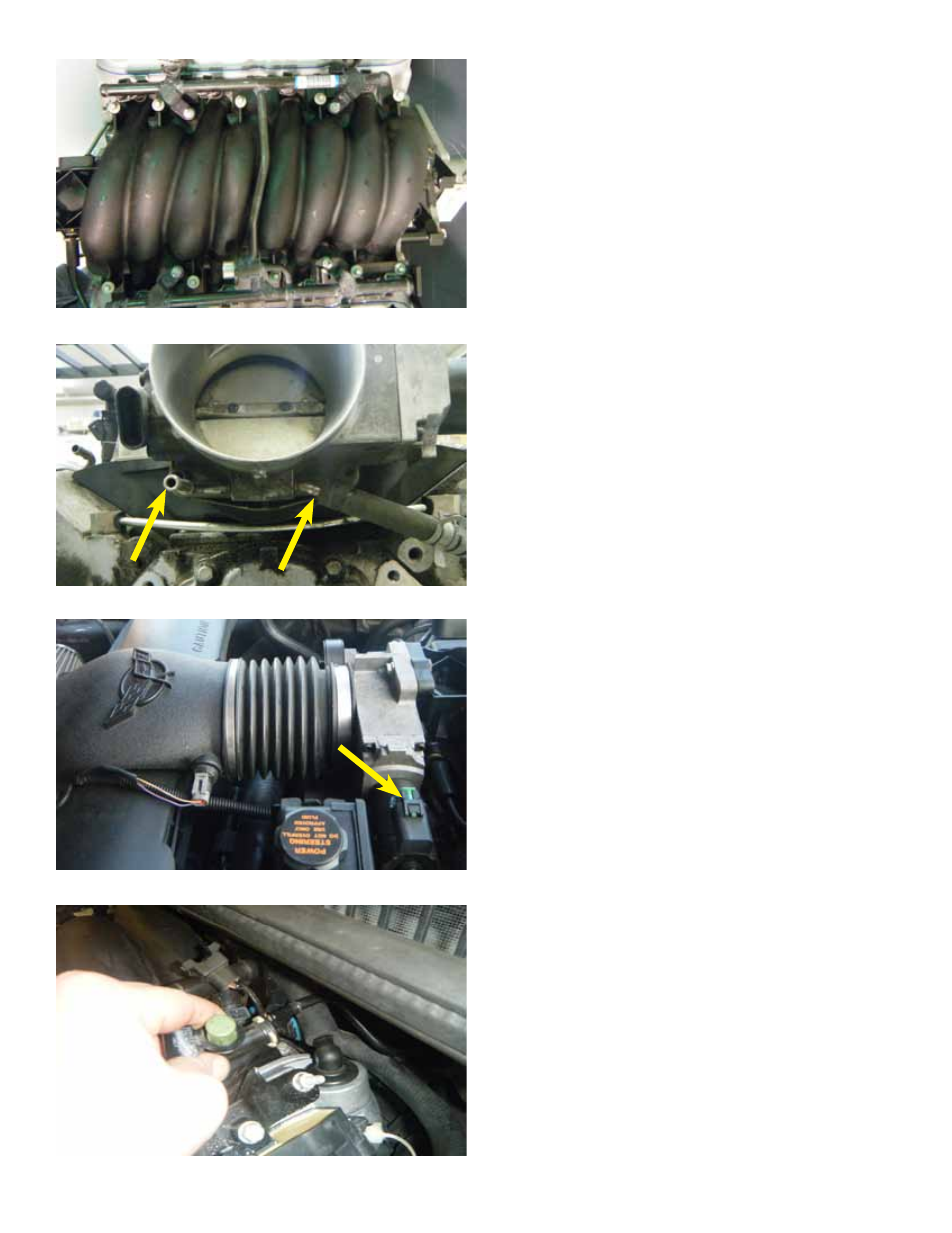

29. Using a compressed air gun, clean off
the top of the intake manifold as debris tends to
accumulate on it over time. You do not want dirt
or debris to get into the intake ports.
30. Un-clamp the two (2) coolant hoses that
run to the bottom of the throttle body as shown.
31. Disconnect the throttle actuator electrical
connector from the throttle body.
32. Press the tab on the hose to disconnect
the fuel purge line. This is located on the rear,
driver side of the engine, just forward of the cowl.
