Lingenfelter L250280197 Lingenfelter C5 Corvette E-Force Supercharger Install Kit v2.9 - Manual (Page 10)

Page 9

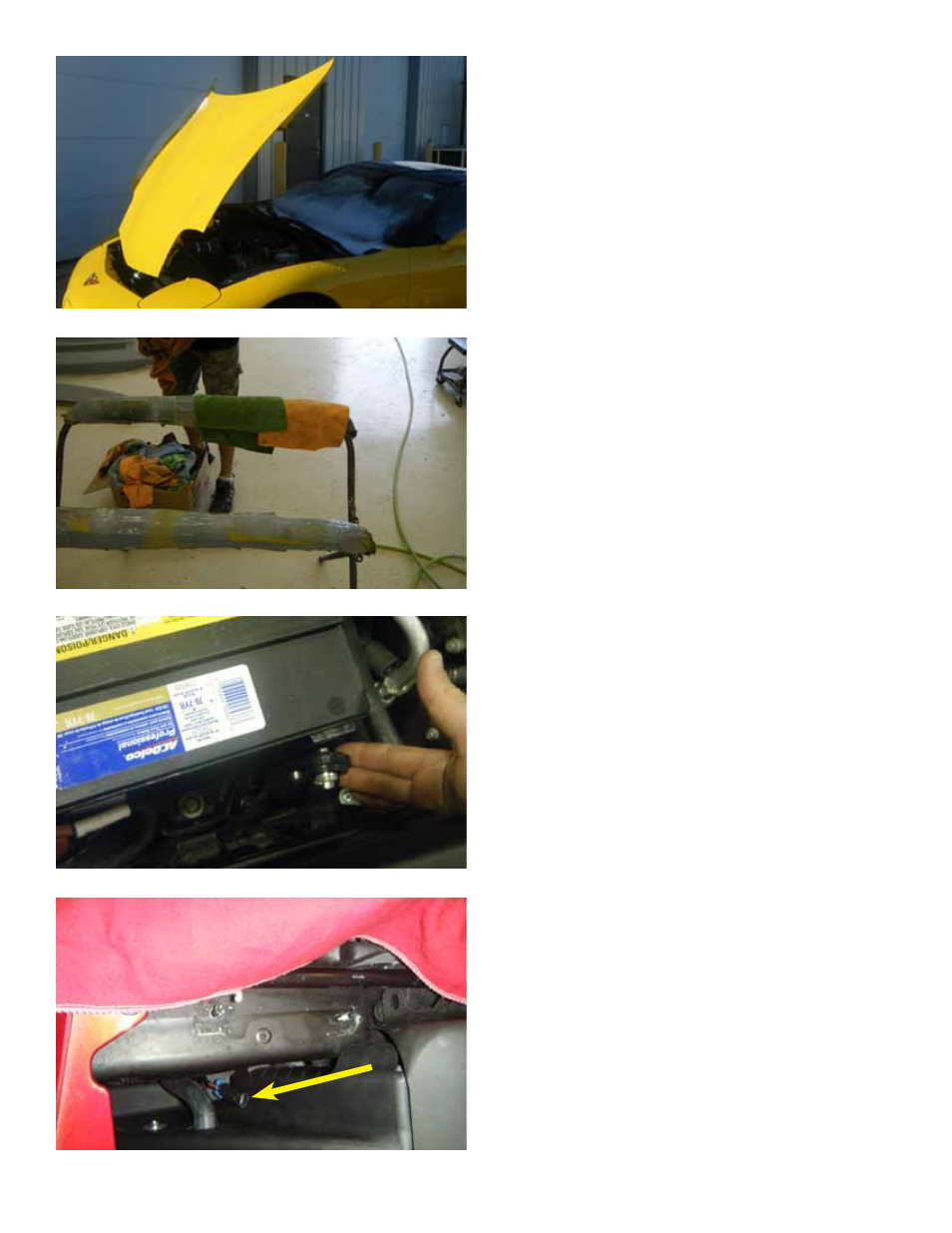

1. Open the hood. If you have been driving
your vehicle, allow time for it to cool down before
beginning this installation.
3. Using a 5/16” socket and ratchet,
disconnect the negative (-) battery terminal from
your battery. Tape off your terminal connection
to ensure no accidental contact between the
connector and the battery terminal.
NOTE: The 2004 C5 has top post battery
terminals. Vehicles of this model year will need
to be converted to a side post battery before
continuing with the installation. Use a 10mm
wrench to loosen the clamp on the post battery
terminal.
2. Prepare a soft clean surface to place your
hood to ensure it does not get damaged.
4. Disconnect the engine bay light electrical
connector. It is located on the passenger side
between the radiator shroud and the frame rail
(see arrow).
