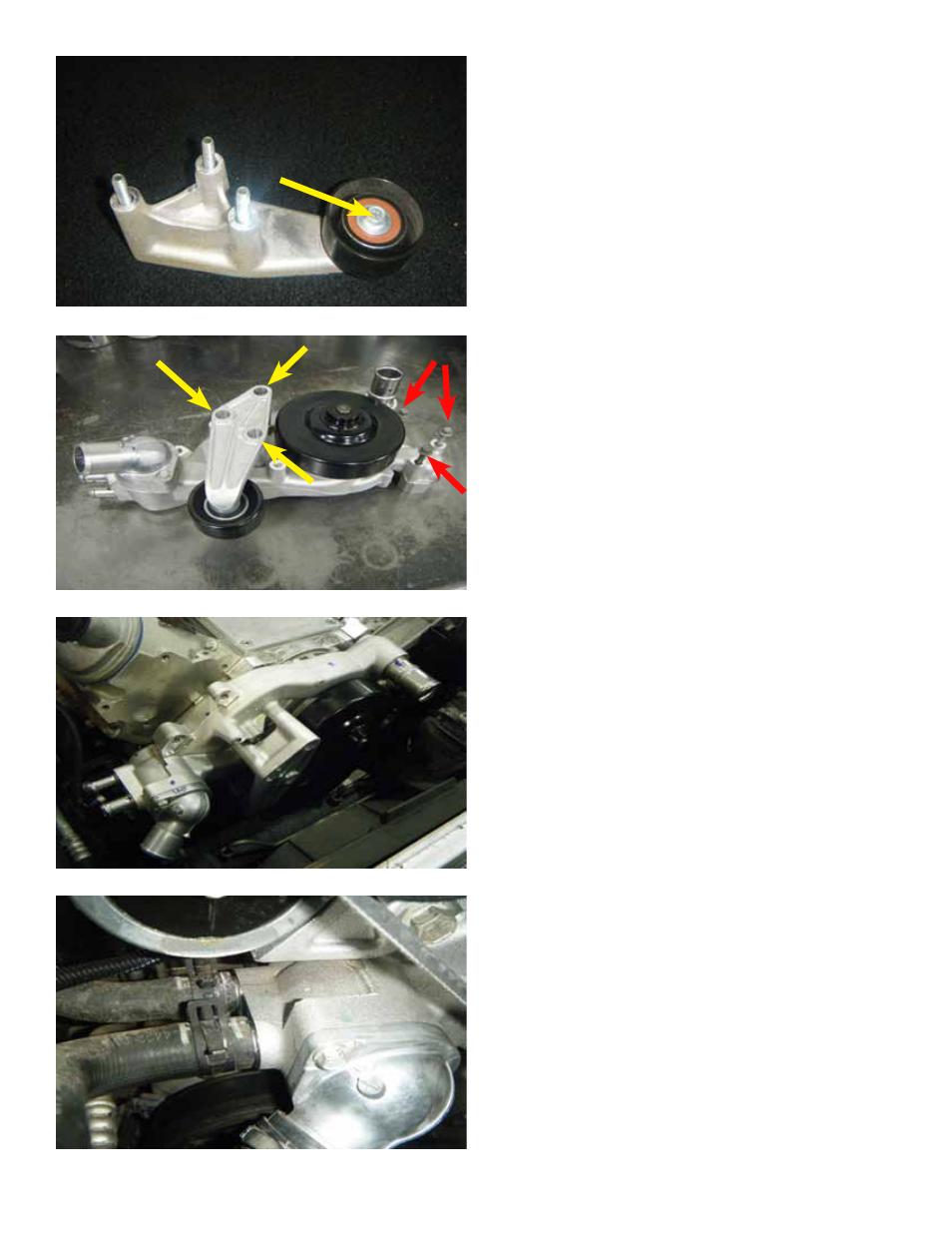

127. Using blue Loctite®, mount the lower idler
pulley to the Edelbrock-supplied bracket using
the supplied washer, bolt, and a 13mm socket.
Torque the bolt to 18 ft-lbs.
128. Using the Edelbrock-supplied socket head
cap screws, the lower idler pulley bracket, and
the three (3) stock water pump bolts removed
in step 72, install the new LS3/LS7 water pump.
Torque the bolts using a 10mm socket and the
screws using a 6mm Allen socket to 22 ft-lbs.
The socket head cap screws bolts are denoted
by yellow arrows and the stock water pump bolts
are denoted by red arrows.
NOTE: If switching to a lower temperature
thermostat, do so at this time.
129. This illustration shows the new LS3/LS7
water pump and idler pulley bracket bolted up to
the engine block using the procedure from the
previous step.
130. Connect the heater hoses to the water
pump.
